PRODUCT CODE: R-EHD2-63DB

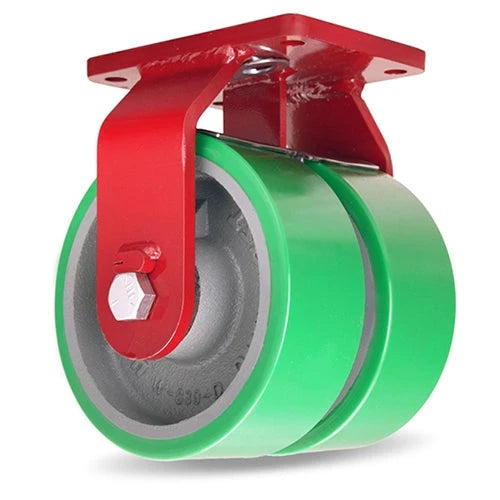

Upgrade your industrial equipment with the high-quality and durable Hamilton Caster Part#: R-EHD2-63DB. Engineered to provide exceptional performance, this caster is designed to meet the rigorous demands of heavy-duty applications. Whether you need to mobilize carts, racks, or machinery, the R-EHD2-63DB is the perfect solution for smooth and reliable movement.
Equipped with a maintenance-free precision tapered roller bearing in the wheel, the R-EHD2-63DB guarantees smooth and effortless rolling, reducing friction and minimizing the effort required for transportation. This feature makes it ideal for demanding applications that require frequent movement of heavy loads.
| Load Capacity (lbs.) @ 3 mph | 3900 |
| Wheel Diameter (in.) | 6 |
| Wheel Face (in.) | 3 |
| Overall Height (in.) | 8.5 |
| Wheel Type | Duralast® |
| Bearing Type | Precision Ball |
| Replacement Wheel | W-630-DB-3/4 |

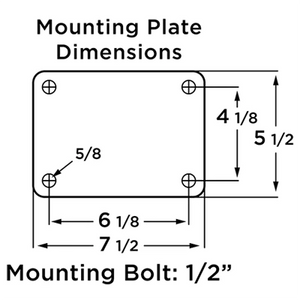

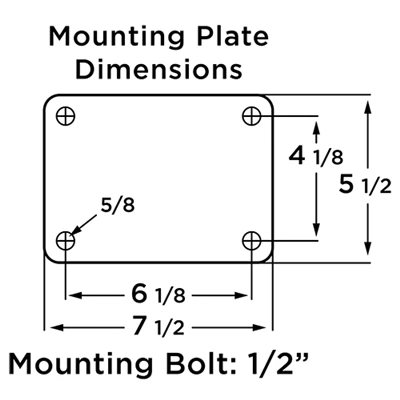

| Mounting Plate (in.) | 5 1/2 x 7 1/2 |
| Mounting Bolt (in.) | 0.375 |
| Caster Rig Type | Forged Steel |
| Caster Color/Finish | Crimson Powder |
| Wheel Color/Finish | Green Poly on Gray Center |
| Weight (lbs.) | 33.0000 |
| Bolt Hole 1 (in.) | 4 1/8 x 6 1/8 |
| Swivel or Rigid caster | Rigid |
| Rollability: | |
| Durability: | |
| Floor Preservation: | |
| Quiet Operation: | |
| Type: | Duralast® |
| Material: | Polyurethane |
| Relative Capacity: | High |
| Cushioning (Resilience): | Medium |
| Impact Resistance: | Medium |
| Moisture Resistance: | Medium |
| Abrasion Resistance: | High |
| Relative Cost: | Medium |
| Low Temp. Range (F): | -50 |
| High Temp. Range (F): | 200 |
| Chemical Resistance: | Medium |
