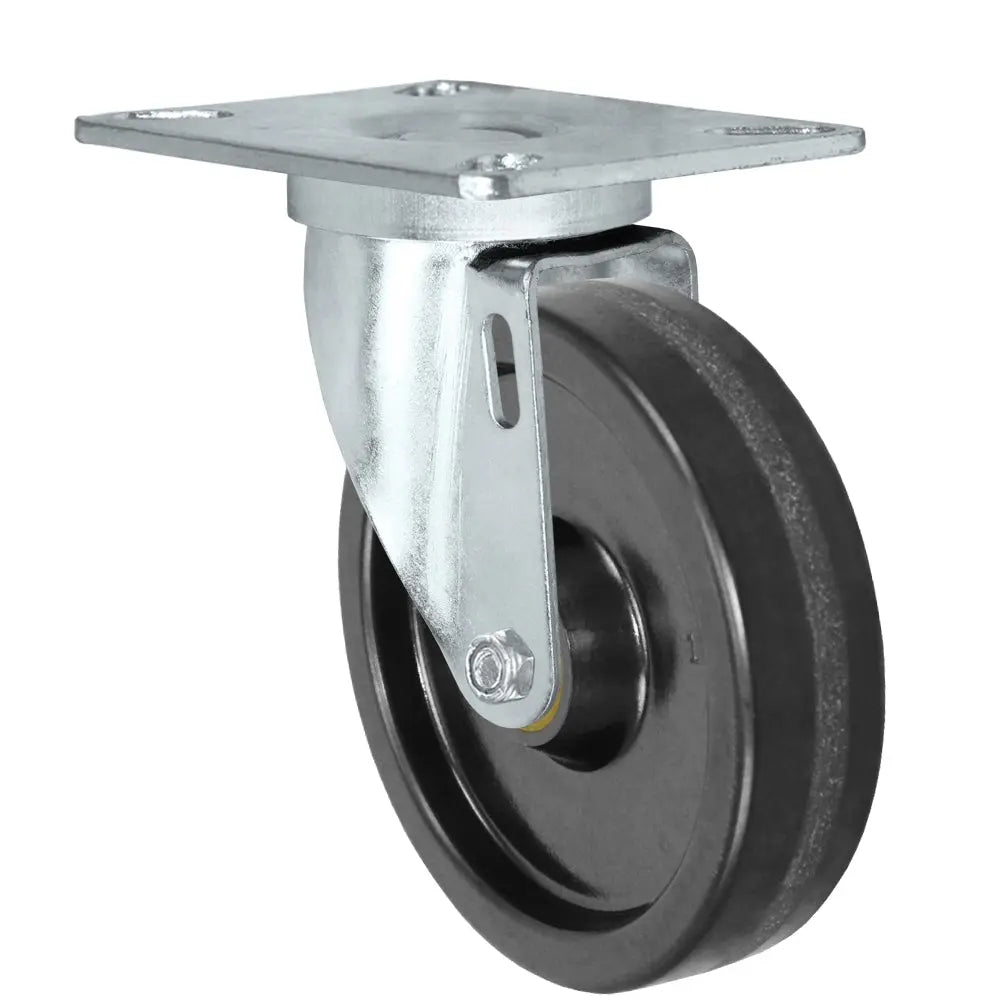

Durastar Light Medium Duty 24 Series - 5" x 1-1/4" Phenolic Swivel Caster - 350 lb Capacity, Choose Top Plate Option

Volume discounts applied at checkout
  • 50-99 units: 5% Off
  • 100-199 units: 10% Off
  • 200+ units: 15% Off
Status: In Stock
Shipping Truck

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: 24-S-514-PH-83

Product Overview

Durastar Light Medium Duty 24 Series - 5" x 1-1/4" Phenolic Swivel Caster - 350 lb Capacity


Product Overview

The Durastar Light Medium Duty 24 Series caster with a 5" x 1-1/4" Phenolic wheel offers exceptional performance and durability for various industrial and commercial applications. With a robust 350 lb load capacity and customizable top plate options, this swivel caster is engineered to meet the demands of light to medium-duty environments while providing smooth and reliable mobility.

Key Features

  • Wheel Material: Phenolic for superior durability and high-temperature resistance
  • Wheel Dimensions: 5" diameter x 1-1/4" width for stability and efficient rolling
  • Load Capacity: Supports up to 350 lbs, ideal for light to medium-duty applications
  • Swivel Design: Double ball bearing raceways for enhanced maneuverability
  • Customizable Top Plate: Choose from various sizes to fit your specific needs
  • Protective Feature: Steel dust cover shields the swivel raceway, enhancing longevity
  • Finish: Zinc plated for superior corrosion resistance

Performance Benefits

The Phenolic wheel offers excellent resistance to impact, chemicals, and high temperatures, ensuring long-lasting performance in challenging industrial conditions. Its durability is further enhanced by the caster's zinc-plated finish, providing protection against rust and corrosion. The smooth operation reduces noise levels, enhancing the overall user experience.

Applications

This versatile caster excels in numerous settings, including:

  • Material handling equipment
  • Food service and bakery carts
  • Institutional and healthcare facilities
  • Light industrial environments
  • Warehouses and distribution centers
  • High-temperature applications

Why Choose Durastar 24 Series?

Durastar's commitment to quality and innovation ensures that the 24 Series casters meet rigorous performance standards. The combination of durability, smooth operation, and versatility makes these casters an excellent choice for businesses seeking reliable mobility solutions. With its phenolic wheel, this caster offers the perfect balance of load-bearing capacity, floor protection, and heat resistance, making it ideal for a wide range of industrial and commercial applications.

Technical Specs

Technical Specifications: Durastar Light Medium Duty 24 Series

  • Wheel Diameter: 5 inches
  • Tread Width: 1-1/4 inches
  • Wheel Type: Phenolic
  • Top Plate Options:

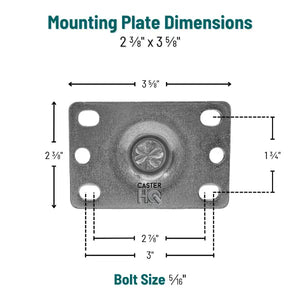

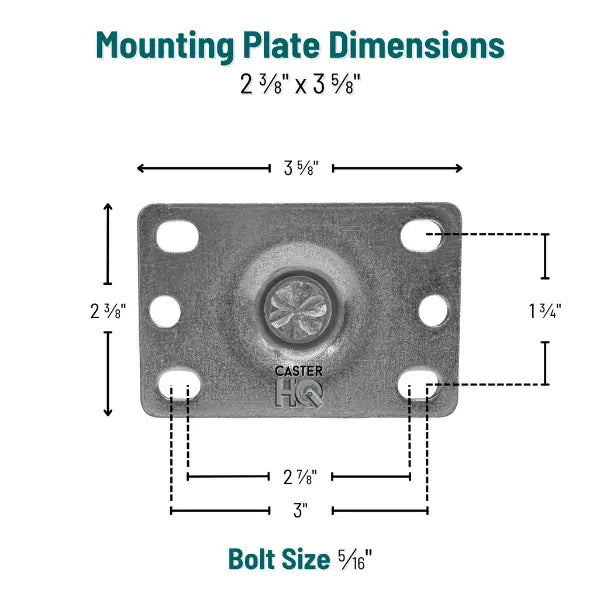

    • 2-3/8" x 3-5/8"

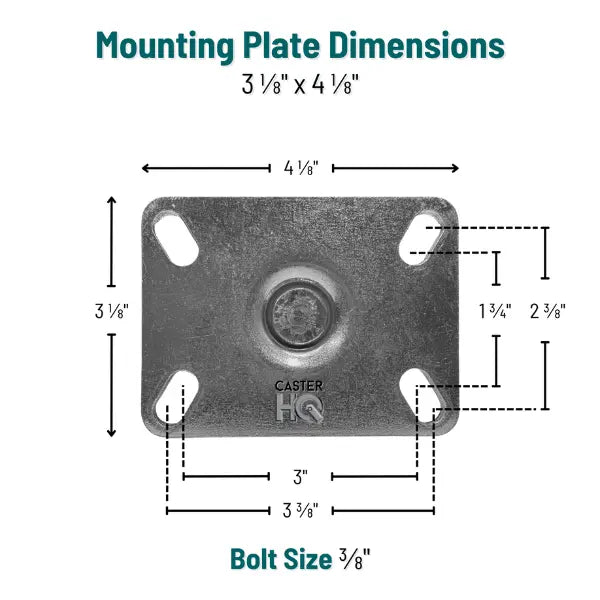

    • 3-1/8" x 4-1/8"
    • 4" x 4-1/2"
  • Load Capacity: 350 lbs
  • Overall Height (OAH): 6-1/4 inches
  • Swivel Radius: 3-13/16 inches
  • Bearing Options:
    • Roller Bearing
    • 1/2" Plain Boring with Bushing
  • Caster Type: Swivel
Key Features

Top 10 Features: Durastar Light Medium Duty 24 Series 5" x 1-1/4" Phenolic Swivel Caster

  1. High Load Capacity: Supports up to 350 lbs, ideal for light to medium-duty applications
  2. Durable Wheel Material: 5" x 1-1/4" Phenolic wheel for excellent wear resistance and high-temperature tolerance
  3. Smooth Maneuverability: Double ball bearing raceways ensure effortless 360-degree rotation
  4. Versatile Top Plate Options: Choose from 2-3/8" x 3-5/8", 3-1/8" x 4-1/8", or 4" x 4-1/2" sizes
  5. Protective Design: Steel dust cover shields the swivel raceway, enhancing longevity
  6. Corrosion Resistance: Zinc plated finish protects against rust and wear
  7. Quiet Operation: Engineered for reduced noise levels in various environments
  8. Customizable Bearing Options: Available with Roller Bearing or 1/2" Plain Boring with Bushing
  9. Compact Design: 6-1/4" overall height and 3-13/16" swivel radius for efficient use of space
  10. Versatile Applications: Suitable for material handling, food service, institutional, and light industrial environments
Ordering & Shipping Information

Transparent pricing

All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.

Upfront shipping costs

Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.

Business-friendly ordering

We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.

Real support from product specialists

Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.

Trusted by industrial and commercial customers

CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.

  • Flat-rate shipping by order size. Final shipping cost shown before payment.
  • No post-checkout shipping adjustments or re-billing.
  • Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.

Made-to-order items (lead times)

Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.

Need an exact freight quote for a large order?

Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.

Additional Information

Durastar Light Medium Duty 24 Series 5" x 1-1/4" Phenolic Swivel Caster


The Durastar Light Medium Duty 24 Series caster with a 5" x 1-1/4" Phenolic wheel represents the pinnacle of mobility solutions for various industrial and commercial applications. This versatile caster combines durability, efficiency, and floor protection, making it an excellent choice for businesses seeking reliable equipment movement in diverse environments.

Performance Advantages

  • Chemical Resistance: Withstands exposure to most chemicals, oils, grease, and solvents
  • Temperature Tolerance: Suitable for use in high-temperature environments where other materials might fail
  • Quiet Operation: Engineered for reduced noise levels, ideal for noise-sensitive areas
  • Floor-Friendly: Non-marking properties help maintain pristine floor surfaces
  • Easy Rolling: High hardness (90 Shore D scale) and slight crown in tread profile ensure smooth movement on hard surfaces

Applications

The 24 Series with phenolic wheels excels in a wide range of industries and applications, including:

  • Material handling equipment
  • Food service and bakery carts
  • Institutional and healthcare facilities
  • Light industrial and manufacturing areas
  • Warehouses and distribution centers
  • High-temperature environments

Durastar's commitment to quality and innovation ensures that the 24 Series casters meet rigorous performance standards. The combination of durability, smooth operation, and versatility makes these casters an excellent choice for businesses seeking reliable mobility solutions. With its phenolic wheel, this caster offers the perfect balance of load-bearing capacity, floor protection, and heat resistance, making it ideal for a wide range of industrial and commercial applications.

Durastar Light Medium Duty 24 Series - 5
Durastar Light Medium Duty 24 Series - 5" x 1-1/4" Phenolic Swivel Caster - 350 lb Capacity, Choose Top Plate Option

$32.00
