PRODUCT CODE: 38PF08228S01LTO

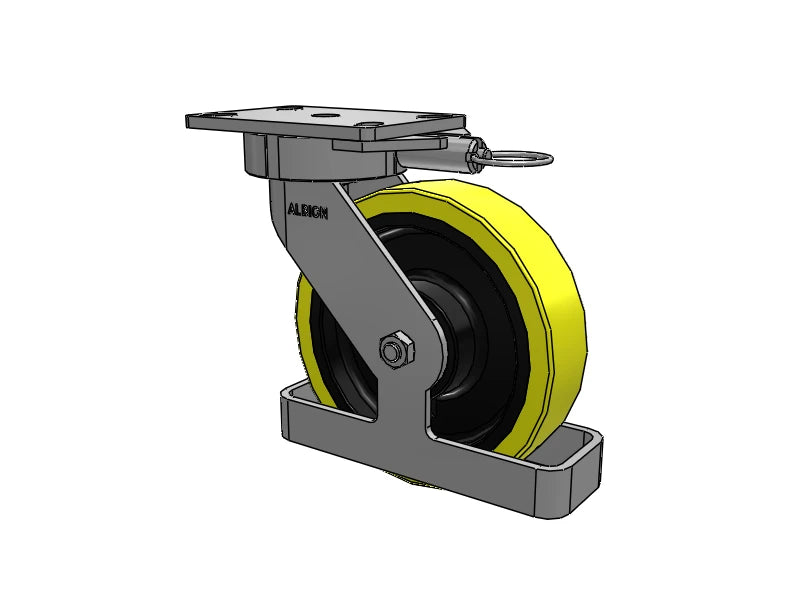

Upgrade your mobility and maneuverability with the Albion Casters 8" x 2" USA Ergonomic Swivel Caster. Designed for superior performance, this caster features a robust 6.25" x 4.5" plate and an innovative HD Poly-on-Iron wheel construction, ensuring exceptional durability and resistance to wear. The ergonomic swivel design, combined with a practical swivel lock and protective toe guard, offers enhanced safety and ease of use. With a 9.5-inch overall height, this caster is ideal for a wide range of industrial and commercial applications, providing smooth, stable movement even under heavy loads. Whether you’re upgrading existing equipment or building new, the Albion Casters 38PF08228S01LTO is engineered to meet your performance needs.
| Specification | Details |
|---|---|
| SKU | 38PF08228S01LTO |
| Raceway Type | Industrial sealed precision ball bearing raceway requires no maintenance or additional lubrication for life of caster |
| Brake | None |
| Load Capacity | 2200 lb |
| Mounting Height | 9.5 in |
| Wheel Tread Width | 2 in |
| Wheel Description | PF - Polyurethane (HD Cast Iron Core) |
| Wheel Color | Yellow Tread on Black Cast Iron Core |
| Wheel Bearing | Precision Ball |
| Wheel Profile | Flat Tread |
| Wheel Hardness | 95 Shore A |
| Wheel Thread Guards | None |
| Fastening | 6-1/4" x 4-1/2" Top Plate |
| Bolt Hole Pattern | 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" |
| Plate Bolt Size Recommended | 1/2" |
| Swivel Radius | 8.05 in |
| Swivel Lead | 3.5 in |
| Swivel Lock | Hand Operated Swivel Lock (L) |
| Toe Guard | Toe Guard (TO) |
| Finish | RoHS Compliant Zinc Plating |
| Operating Temperature Range | -40°F to +180°F |
| Manufacturing Code | 38PF08228S01LTO |
| Warranty | 5 year |
| Conformity | RoHS compliant zinc plating, ANSI ICWM for safety and performance |
Transparent pricing
All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.
Upfront shipping costs
Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.
Business-friendly ordering
We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.
Real support from product specialists
Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.
Trusted by industrial and commercial customers
CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.
When will my order ship?
In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.
Will shipping cost more at checkout?
Shipping is not free on most orders. Your final shipping cost is shown before payment.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.
Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.
Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.
Experience superior mobility and durability with the Albion Casters 8" x 2" Ergonomic Swivel Caster. Designed to enhance the performance of your equipment, this caster combines advanced engineering with high-quality materials to offer exceptional functionality. Whether you are upgrading your industrial equipment or improving maneuverability, this caster provides a perfect solution for smooth, reliable operation.
The Albion Casters 8" x 2" Ergonomic Swivel Caster is an excellent choice for a variety of industrial and commercial applications. Its robust construction and versatile features make it suitable for use in warehouses, manufacturing facilities, and retail environments. Ideal for carts, trolleys, and mobile equipment, this caster helps improve maneuverability and efficiency, making it a valuable addition to any operational setup.
Choosing Albion Casters means investing in a product that combines cutting-edge design with exceptional durability. The 8" x 2" Ergonomic Swivel Caster offers reliable performance, ease of use, and long-lasting quality. Upgrade your equipment with confidence, knowing that Albion Casters stands behind their commitment to excellence and innovation.
$419.00
