Durable R-EN-35NYB Hamilton Endurance Rigid Caster with 3 1/2" x 2" Nylast High Performance Cast Nylon Wheel and 1/2" Sealed Precision Ball Bearings

Volume discounts applied at checkout
  • 50-99 units: 5% Off
  • 100-199 units: 10% Off
  • 200+ units: 15% Off
Status: In Stock
Shipping Truck

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: R-EN-35NYB

Product Overview

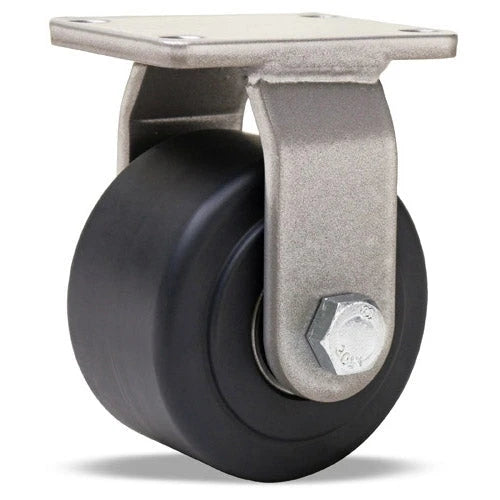

Hamilton R-EN-35NYB Endurance Rigid Caster

The R-EN-35NYB Hamilton Endurance Rigid Caster is the epitome of high-performance, functional design. The foundation of this powerhouse lies in its 3 1/2" x 2" Nylast High-Performance Cast Nylon Wheel, designed to withstand rigorous use.

  • High-Performance Wheel: The 3 1/2" x 2" Nylast cast nylon wheel ensures durability and efficiency, facilitating smooth and effective movement across various surfaces.
  • Sealed Precision Ball Bearings: Fitted with a 1/2" sealed precision ball bearing, the R-EN-35NYB Hamilton ensures seamless operation and reduces maintenance requirements.
  • Durable Construction: The robust design and construction promise long-lasting performance, even in demanding settings.
  • Efficient Load Handling: With its superior design, the caster can manage substantial loads with ease, making it suitable for heavy-duty applications.

Improve your operational efficiency with the R-EN-35NYB Hamilton Endurance Rigid Caster, engineered for performance and durability.

Technical Specs
S-EN-3DB Hamilton Endurance Swivel Caster Specifications

Product Specifications for R-EN-35NYB Hamilton Endurance Rigid Caster

Swivel or Rigid Caster Rigid
Load Capacity (lbs.) @ 3 mph 1000
Wheel Diameter (in.) 3.50
Wheel Face (in.) 2
Overall Height (in.) 4.4375
Swivel Offset (in.) 1.1875

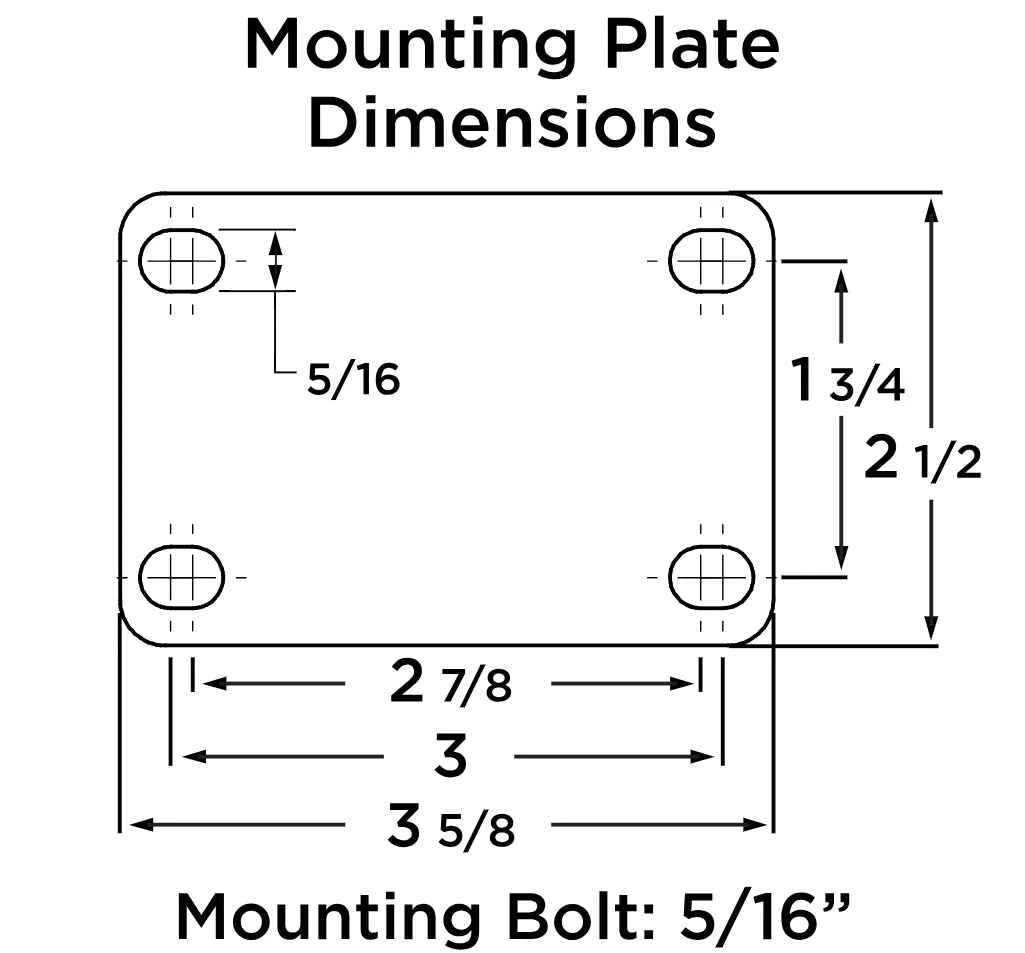

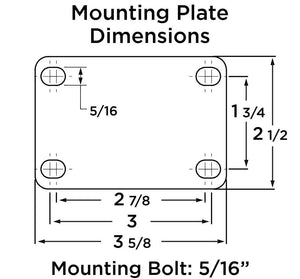

Mounting Plate (in.) 2 1/2 x 3 5/8
Bolt Hole 1 (in.) 1-3/4 x 2-7/8
Bolt Hole 2 (in.) 1-3/4 x 3
Mounting Bolt (in.) .3125
Caster Color/Finish Platinum Powder
Wheel Type Nylast
Wheel Color/Finish Charcoal Gray
Bearing Type Precision Sealed Ball
Replacement Wheel W-352-NYB-1/2
Wheel Material @ Tread Nylon
Shipping Weight (lbs.) 5
Caster Rig Type Weldment
Wheel Core Material Nylon
Key Features

Top 10 Features of the R-EN-35NYB Hamilton Endurance Rigid Caster

  1. 3 1/2" x 2" Wheel Dimensions: Provides perfect balance and stability, ideal for both light and heavy loads.
  2. Nylast High-Performance Cast Nylon Wheel: Ensures smooth and quiet operation while maintaining exceptional durability.
  3. 1/2" Sealed Precision Ball Bearings: Offers frictionless movement and increases the lifespan of the caster.
  4. Robust Construction: Made to last in demanding work environments.
  5. Low Maintenance: Sealed bearings reduce the need for regular servicing.
  6. Efficient Performance: The swivel design allows for efficient movement in all directions.
  7. Load Capacity: Designed to support substantial weights without compromise to performance.
  8. Corrosion-Resistant: The Nylast High-Performance Cast Nylon Wheel is designed to resist wear, tear and rust, making it suitable for all environments.
  9. User-friendly: Easy to install and replace, making it perfect for all your caster needs.
Ordering & Shipping Information

Transparent pricing

All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.

Upfront shipping costs

Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.

Business-friendly ordering

We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.

Real support from product specialists

Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.

Trusted by industrial and commercial customers

CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.

  • Flat-rate shipping by order size. Final shipping cost shown before payment.
  • No post-checkout shipping adjustments or re-billing.
  • Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.

Made-to-order items (lead times)

Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.

Need an exact freight quote for a large order?

Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.

Additional Information

R-EN-35NYB Hamilton Endurance Rigid Caster with 3 1/2" x 2" Nylast High Performance Cast Nylon Wheel with 1/2" Sealed Precision Ball Bearings

The R-EN-35NYB Hamilton Endurance Rigid Caster is designed to provide the perfect combination of mobility, durability, and user-friendliness. With its top-grade construction, this caster guarantees a reliable performance that can withstand a wide range of applications and environments.

Unmatched Mobility

At the heart of this caster's design is its endurance swivel design that offers maximum maneuverability. This feature, coupled with the 3 1/2" x 2" wheel dimensions, allows for a smooth and efficient movement in all directions. It reduces strain on the user and provides perfect balance and stability, making it ideal for managing both light and heavy loads.

High-Performance Material

The caster's wheel is constructed from Nylast, a high-performance cast nylon that ensures a smooth, quiet operation while maintaining exceptional durability. This material is also resistant to wear, tear, and rust, making the caster suitable for a variety of work environments.

Reliability and Longevity

Equipped with 1/2" sealed precision ball bearings, the R-EN-35NYB Hamilton Endurance Rigid Caster offers frictionless movement, which not only enhances user experience but also extends the caster's lifespan. Its robust construction promises a long-lasting performance that can endure demanding work settings.

User-friendly and Low Maintenance

This caster is easy to install and replace, offering maximum convenience to the users. Additionally, the use of sealed bearings reduces the need for regular servicing, making this caster a low-maintenance solution for your moving needs.

Load Capacity

Designed with an excellent load capacity, this rigid caster supports substantial weights without compromising its performance. Regardless of the load, it ensures smooth and efficient operation, demonstrating its versatility and reliability in all scenarios.

Durable R-EN-35NYB Hamilton Endurance Rigid Caster with 3 1/2
Durable R-EN-35NYB Hamilton Endurance Rigid Caster with 3 1/2" x 2" Nylast High Performance Cast Nylon Wheel and 1/2" Sealed Precision Ball Bearings
