PRODUCT CODE: HQ2260R-PL1-DSR

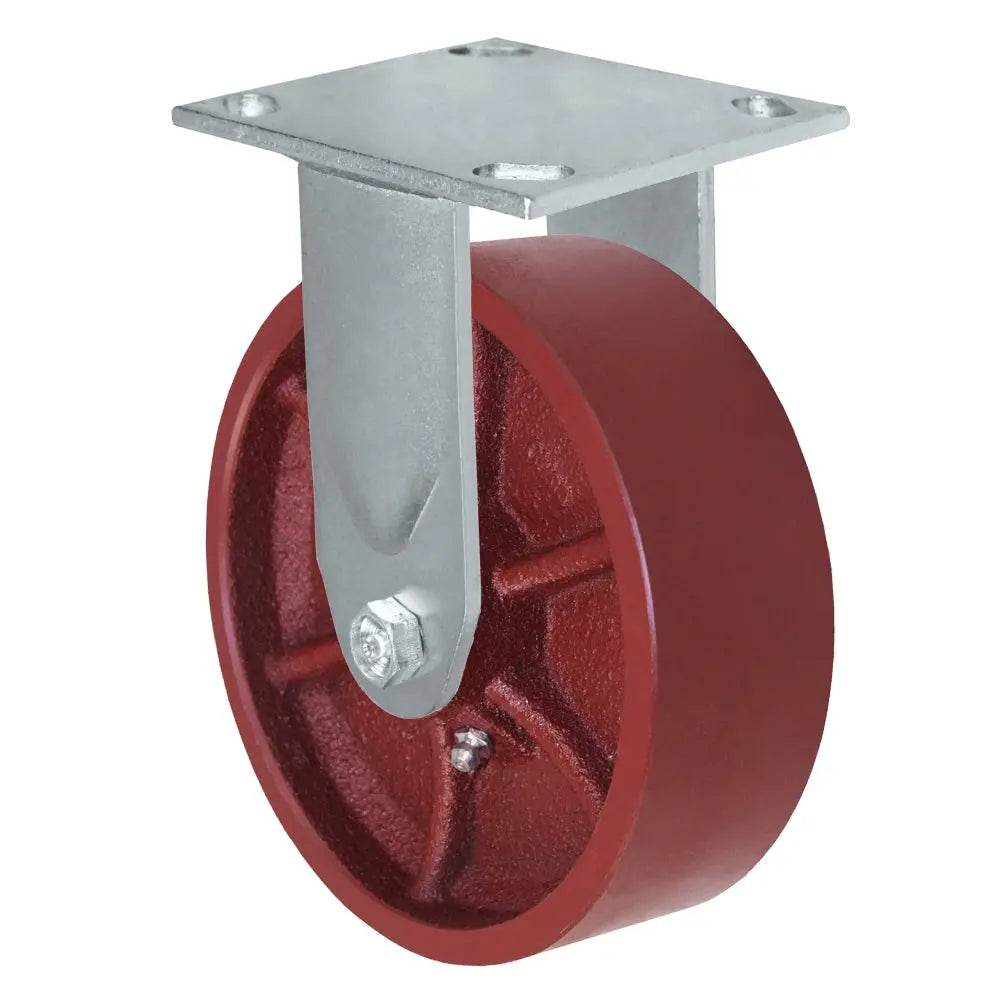

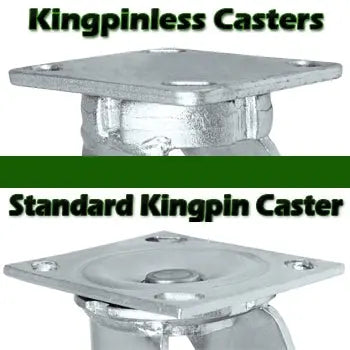

This listing is for a 6-inch diameter by a 2-inch tread width kingpinless Rigid Caster combined with a heavy-duty ductile iron wheel. The caster is precision machined and induction hardened. The legs are double welded. The steel is made from ASTM 1045 Hot Forged Steel. Ductile Iron Wheels offer a 70,000 PSI tensile strength for heavy impact and shock load applications. These wheels should never be dropped on the floor as they are incredibly heavy-duty and can damage concrete. The swivels and Rigids both contain an 8MM thick steel construction which is thicker than any standard top plate caster of this size.
The product options on the right-hand side, such as the bearing type, shows an image of the type of bearing that will come pre-installed inside of the wheel and caster. This wheel comes standard with a 3/4" roller bearing and 1/2" spanner bushing if no option is selected. The roller bearing will roll easier than a bronze bearing, but bronze bearings are more resistant to corrosion, wear, and high temperatures. Bronze bearings are commonly used in many high-temperature applications, including powder coating.
TECHNICAL SPECIFICATIONS:
Wheel Diameter: 6"
Tread Width: 2"

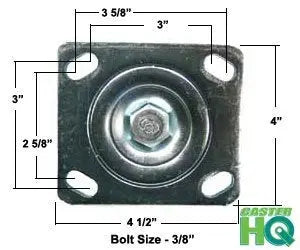

Mounting Plate Size: 4" x 4-1/2"
Bolt Hole Pattern: 2-5/8" x 3-5/8" to 3" x 3"
Attaching Bolt Diameter: 3/8"
Caster Type: Rigid
Wheel Type: Ductile Steel
Load Capacity: 2,000 lbs
Overall Height: 7-1/2"
Bearing Type: 3/4" Roller Bearing with 1/2" Steel Spanner Bushing
Temperature Range: -45° to 800°F
