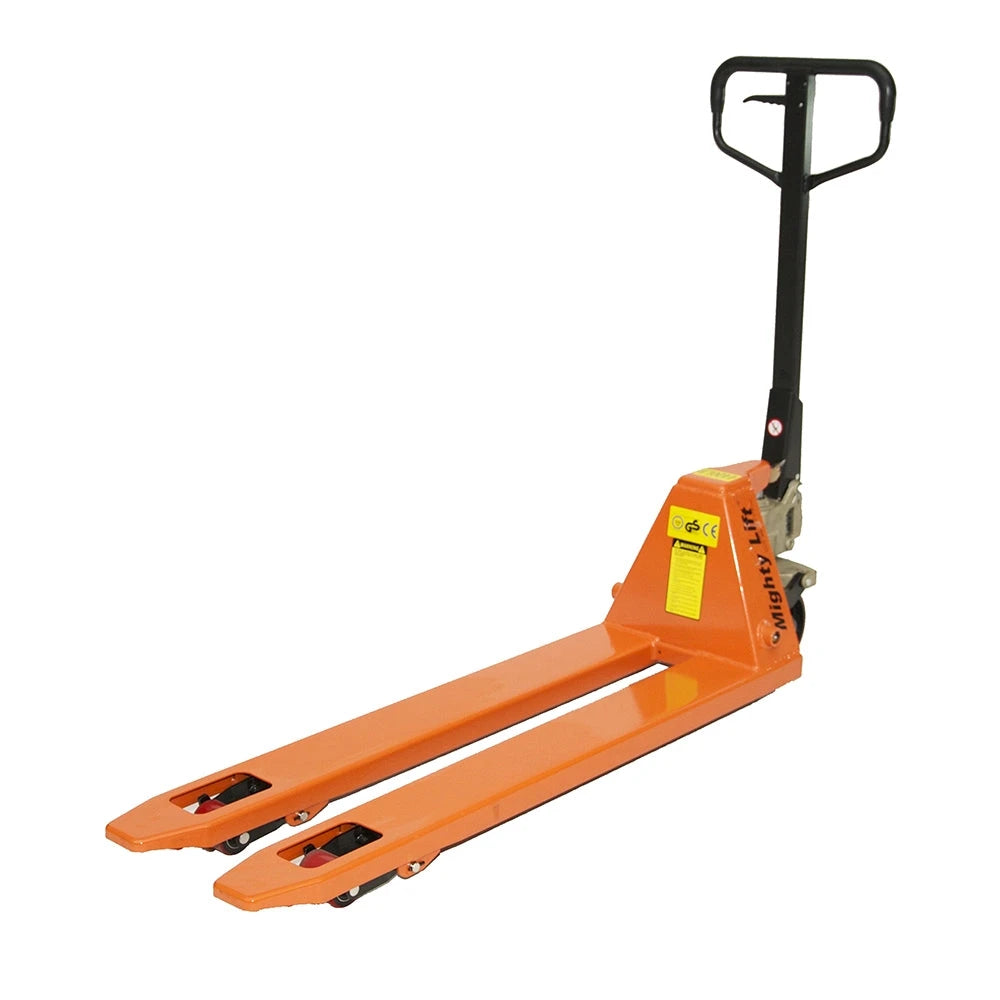

ML1648 Heavy Duty Pallet Jack Truck | Wheels Polyurethane on Steel | 16" Width 48" Length | 2200lb. Load Capacity | Orange Color

Volume discounts applied at checkout
  • 50-99 units: 5% Off
  • 100-199 units: 10% Off
  • 200+ units: 15% Off
Status: In Stock
Shipping Truck

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: ML1648

Product Overview

Short/Extra Narrow Forks Pallet Jack, 16" x 48", 2200 Lbs. capacity


Small, Mini, Specialty Pallet Jack Truck, 2,200 lbs. capacity, 16" x 48", Minimum height 2.9", Maximum height 7.48", Distance between forks: 4.17", Fork width 5.9", Turning radius: 210 ̊, Wheels materials: poly on steel , Steering wheel size: 6.25" Diameter x 1.85"W, load wheel size: 2.75" Diameter x 3.15"W. The handle bottom also has 11" long reinforcement to better protect the handle and allow more tolerance of abusive use of the pallet jacks trucks.
  • Galvanized, one piece pump for extreme durability even in harsh environment.
  • Perfect for use with small and custom pallets in small space.
  • 3-position hand control lever – Raise, lower, neutral.
  • Ergonomic handle comes with protective, shock absorbing coating for better user experience.
  • German seal kit ensures smooth and quicker lifting and lowering
  • Features a foot control for increased operator efficiency, safety and reliability.
  • High tensile steel forks with extra reinforcement for more strength and tough use. Adjustable push rods to combat uneven wear and allows adjustment to even level forks.
  • Available accessory pallet jack stop

Specifications:

Capacity

2200

Fork Size

16" x 48"

Distance Between Forks

4.17"

Fork Clearance

0.87"

Fork Width

5.9

Min/Max Height

2.9"/7.48"

Wheel Steer Load

PU/PU

Unit Weight

140

Description

Short/Extra Narrow


Questions? Please Call us @ 844-439-4335 or Contact Us Here

For quick online service please email us: sales@casterhq.com and a Caster Expert will help you answer any questions.
We ship Fast!!!
If ordered before 12-noon we ship all orders typically ship SAME DAY!
All orders received after 12-noon will ship the following business day
Technical Specs
Capacity

2200

Fork Size

16" x 48"

Distance Between Forks

4.17"

Fork Clearance

0.87"

Fork Width

5.9

Min/Max Height

2.9"/7.48"

Wheel Steer Load

PU/PU

Unit Weight

140

Description

Short/Extra Narrow

Key Features


  • Galvanized, one piece pump for extreme durability even in harsh environment.
  • Perfect for use with small and custom pallets in small space.
  • 3-position hand control lever – Raise, lower, neutral.
  • Ergonomic handle comes with protective, shock absorbing coating for better user experience.
  • German seal kit ensures smooth and quicker lifting and lowering
  • Features a foot control for increased operator efficiency, safety and reliability.
  • High tensile steel forks with extra reinforcement for more strength and tough use. Adjustable push rods to combat uneven wear and allows adjustment to even level forks.
  • Available accessory pallet jack stop
