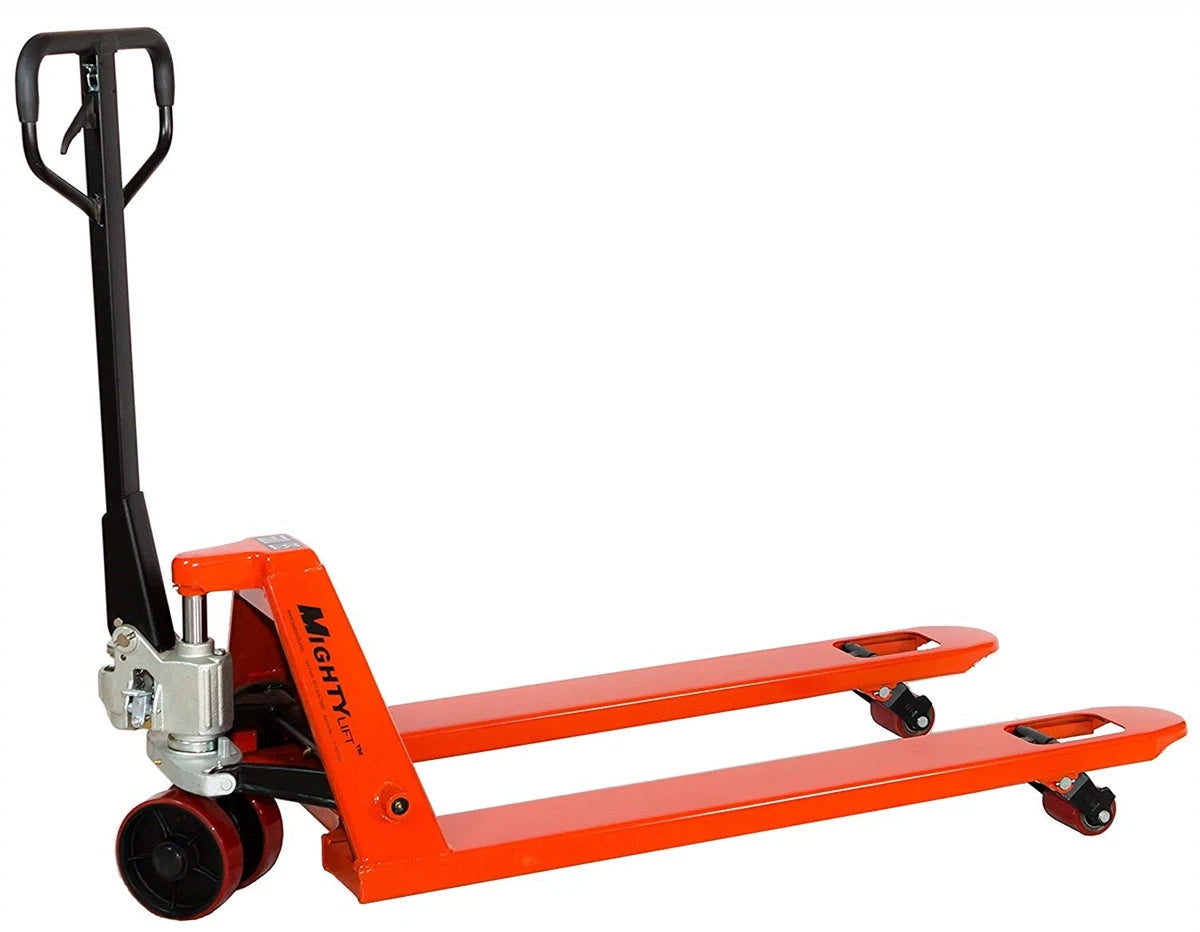

ML66 Heavy Duty High Capacity Pallet Jack/Truck | 6,600 lb Capacity | 27" x 48"

Volume discounts applied at checkout

50-99 units: 5% Off
100-199 units: 10% Off
200+ units: 15% Off

.price-ui--loading { display: block !important; opacity: 1 !important; }

$1,058.00 USD

Status: In Stock

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: ML66

Product Overview

ML66 Heavy Duty Pallet Jack Truck | Wheels Polyurethane on Steel | 50" Height | 27" Width | 48" Length | 6,600 lb. Load Capacity | Orange Color

ML66 is a High Capacity Pallet Jack with high quality Polyurethane on Steel Wheels for a easier push/pull and turning experience to help prevent workers comp claims and back injuries.

The standard pallet (48”d x 40”w) is best handled with a pallet jack that is 27” wide and 48” long (fork length). That allows the load wheels (the small ones) to drop thru a spacing on the bottom of the pallet. It gives full support to the load on the pallet and it’s width balances it but remains maneuverable.

This model has 6600 lbs. capacity, 27" x 48", Min. height 2.9", Max height 7.48", Distance between forks: 14.37", Fork width 6.3", Turning radius: 210, Wheels: polyurethane on steel. Mighty Lift makes highest load capacity up to 11,000 lbs capacity. Built to last even in tough situation, the solid hand pallet truck will meet or exceed your expectation. Large inventory, all in stock.

High tensile steel forks with extra 15" reinforcement for more strength and heavy duty use. Adjustable push rods to combat uneven wear and allows adjustment to even level forks
Galvanized, one piece pallet jack truck pump for extreme durability even in harsh environment. German seal kit ensures extreme smooth & quicker lifting and lowering
Overload release valve will protect the pallet jack truck from over loading by opening the release valve
Ergonomic handle comes with protective, shock absorbing coating for better user experience
Extra foot control for increased operator efficiency, safety and reachability. Extra 10 grease fittings all over the pallet jack truck frame for better lubricating and easy maintenance

Capacity	6600
Fork Size	27'' X 48''
Distance Between Forks	14.37"
Fork Clearance	1.18"
Fork Width	6.3"
Min/Max Height	2.9"/7.48"
Wheel Steer Load	PU/PU
Unit Weight	170
Product Name	High Capacity Pallet Jack/Pallet Truck
Description	High Capacity

Questions? Please Call us @ 844-439-4335 or Contact Us Here

For quick online service please email us: sales@casterhq.com and a Caster Expert will help you answer any questions.

We ship Fast!!!
If ordered before 12-noon we ship all orders typically ship SAME DAY!
All orders received after 12-noon will ship the following business day

Technical Specs

Capacity	6600
Fork Size	27'' X 48''
Distance Between Forks	14.37"
Fork Clearance	1.18"
Fork Width	6.3"
Min/Max Height	2.9"/7.48"
Wheel Steer Load	PU/PU
Unit Weight	170
Product Name	High Capacity Pallet Jack/Pallet Truck
Description	High Capacity

Key Features

High tensile steel forks with extra 15" reinforcement for more strength and heavy duty use. Adjustable push rods to combat uneven wear and allows adjustment to even level forks
Galvanized, one piece pallet jack truck pump for extreme durability even in harsh environment. German seal kit ensures extreme smooth & quicker lifting and lowering
Overload release valve will protect the pallet jack truck from over loading by opening the release valve
Ergonomic handle comes with protective, shock absorbing coating for better user experience
Extra foot control for increased operator efficiency, safety and reachability. Extra 10 grease fittings all over the pallet jack truck frame for better lubricating and easy maintenance
