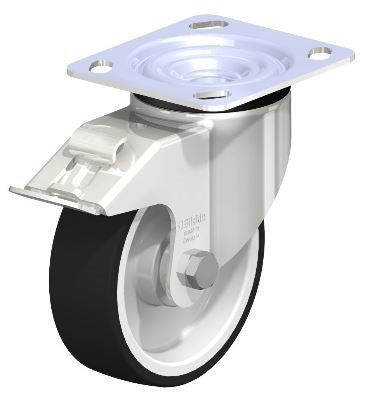

LKX-POTH 125KD-14-FI - Blickle 5" Swivel Caster with Brake – 770 Lbs Load Capacity, Stainless Steel & Polyurethane Wheels, Ball Bearing

Volume discounts applied at checkout
  • 50-99 units: 5% Off
  • 100-199 units: 10% Off
  • 200+ units: 15% Off
Status: In Stock
Shipping Truck

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: LKX-POTH-125KD-14-FI

Product Overview

Blickle 5″ Swivel Caster with Brake – 770 Lbs Load Capacity


Product ID: 910456

Key Specifications

  • Wheel Diameter: 5 inches
  • Wheel Width: 1-9/16 inches
  • Load Capacity: 770 lbs
  • Bearing Type: Ball Bearing Swivel Head
  • Material: Chromium-Nickel Stainless Steel, Thermoplastic Polyurethane Wheels

Experience the durability and high performance of German engineering with the Blickle 5" Swivel Caster. Designed for heavy-duty applications, this caster features a robust stainless steel construction and thermoplastic polyurethane wheels that minimize rolling and swiveling resistance. Ideal for industries requiring reliable, low-noise operation and superior load-bearing capabilities.

Upgrade Your Mobility Solutions

Enhance the efficiency and maneuverability of your heavy equipment with the Blickle 5" Swivel Caster. With a substantial load capacity of 770 lbs and an effective braking system, these casters ensure safe, smooth operation under substantial loads. Discover the difference in quality and performance that Blickle brings to your industrial mobility needs.

Technical Specs

Product Specifications


Specifications

  • Wheel Diameter (Ø): 5 inches
  • Wheel Width: 1-9/16 inches
  • Load Capacity at 2.5 mph: 770 lbs
  • Load Capacity (Static): 1,930 lbs
  • Bearing Type: Ball Bearing
  • Total Height (H): 6-1/8 inches
  • Plate Size: 4-1/2 x 4 inches
  • Bolt Hole Spacing: 2 5/8 x 3 5/8 / 3 x 3 inches
  • Bolt Hole Diameter (Ø): 3/8 inch
  • Offset (F): 1-5/8 inch
  • Temperature Resistance (Min): -5 °F
  • Temperature Resistance (Max): 160 °F
  • Tread and Tire Hardness: 94 Shore A
  • Unit Weight: 3.1 lbs

Explore More

Discover the full range of our high-performance industrial solutions.

Key Features

Blickle Stainless Steel Heavy Duty Swivel Caster with Brake - LKX Series


Key Features

  • Material: High-quality chromium-nickel steel (1.4301/AISI 304), stainless steel with a vibration-ground finish
  • Wheel Composition: Thermoplastic polyurethane tread, hardness 94 Shore A, dark gray, non-marking with a nylon 6 wheel center, impact resistant, natural white
  • Load Capacity: Operates optimally between -5 °F and +160 °F, with temporary tolerance up to +195 °F; note reduced load capacity above +95 °F
  • Brake System: Equipped with 'stop-fix' brake system for enhanced control and safety
  • Swivel Head: Features a double ball bearing for smooth maneuverability and a strong central kingpin for increased durability
  • Additional Features: Synthetic thread guard, small thread guard, and additional ball bearing seals for better performance and longevity
  • Chemical Resistance: High resistance to many aggressive substances

Discover the strength and durability of the Blickle LKX Series Swivel Caster, designed for heavy-duty applications with a focus on high performance and reliability. Perfect for environments requiring robust mobility solutions, this caster ensures a long service life and exceptional functionality.

Enhance Your Industrial Mobility

Upgrade your equipment with our Blickle Heavy Duty Swivel Caster. Experience improved efficiency and maneuverability in even the most demanding industrial environments.

Ordering & Shipping Information

Transparent pricing

All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.

Upfront shipping costs

Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.

Business-friendly ordering

We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.

Real support from product specialists

Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.

Trusted by industrial and commercial customers

CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.

  • Flat-rate shipping by order size. Final shipping cost shown before payment.
  • No post-checkout shipping adjustments or re-billing.
  • Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.

Made-to-order items (lead times)

Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.

Need an exact freight quote for a large order?

Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.

Additional Information

Explore the Advanced Features of the Blickle Stainless Steel Swivel Caster - LKX Series


Detailed Specifications and Features

  • Material and Construction: Made from high-quality chromium-nickel stainless steel (1.4301/AISI 304) with corrosion-resistant parts, ensuring durability and reliability in demanding industrial environments.
  • Wheel Features: Equipped with a thermoplastic polyurethane tread in dark gray, ensuring non-marking and non-staining properties. The wheel center is crafted from high-quality nylon 6, known for its impact resistance and natural white color.
  • Temperature and Chemical Resistance: Operates efficiently in temperatures ranging from -5 °F to +160 °F and can handle temporary extremes up to +195 °F. Notably high chemical resistance to many aggressive substances, although not suited for autoclaves or machine washing.
  • Dynamic Performance: Features a double ball bearing swivel head for smooth maneuvering and a strong central kingpin, enhancing the swivel caster's performance and lifespan.

Additional Properties

  • Non-Marking: Yes
  • Non-Staining: Yes
  • Antistatic: No
  • Electrically Conductive: No
  • Corrosion Resistant: Yes (Note: Applies only to the stainless steel components)
  • Heat Resistant: No
  • Tread Hydrolysis Resistant: No
  • Suitable for Autoclaves: No
  • Suitable for Machine Washing: No

The Blickle LKX Series Swivel Caster is engineered for superior load carrying capabilities, making it an ideal choice for heavy-duty applications where precision and durability are paramount. With its non-marking and non-staining features, it remains a top choice for environments requiring clean operation, despite lacking antistatic and heat-resistant properties.

Maximize Your Equipment's Efficiency

Optimize the performance and longevity of your industrial applications with the Blickle LKX Series Heavy Duty Swivel Caster. Order now to experience enhanced mobility and reliability where it matters most.
