10" x 3" Polyurethane on Steel Keyed Drive Wheel | 24mm Bore - 2,250 lbs Capacity Per Wheel

Volume discounts applied at checkout

50-99 units: 5% Off
100-199 units: 10% Off
200+ units: 15% Off

.price-ui--loading { display: block !important; opacity: 1 !important; }

$265.00 USD

Status: In Stock

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: HD-103-PS-KDW-24mm

Product Overview

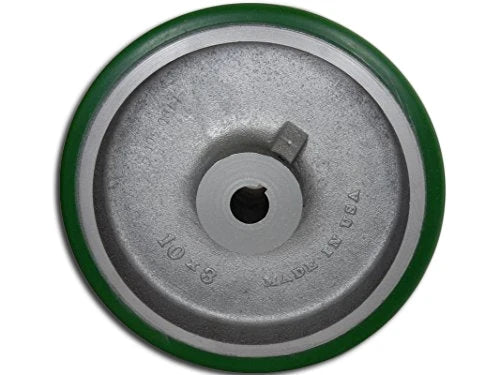

10" x 3" Polyurethane Tread Keyed Drive Wheel

3-1/4" Hub Length | 24mm Bore Size

Industrial drive wheels are used throughout industry. The applications are varied, but all involve fixing a wheel to a shaft. The most common means of securing a wheel to a shaft is with a key-way and/or setscrews. Other set-ups include tapered locking bushing, welding, interference fit, nuts and bolts, and cotter pins.

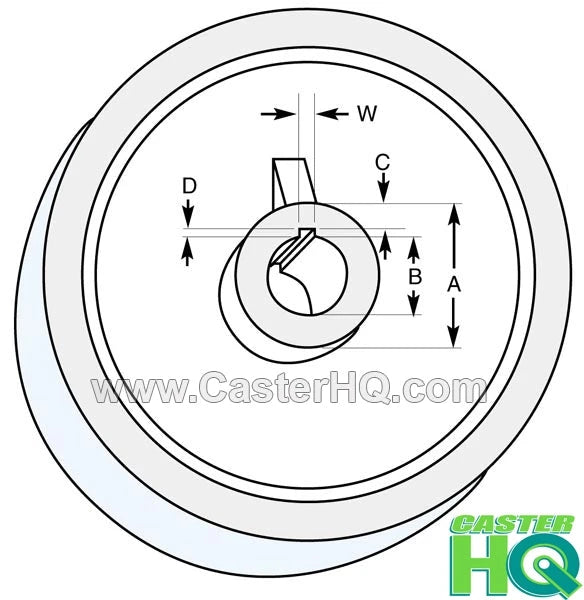

Keyways can be machined in most wheel sizes. The wheel hub diameter must be large enough to allow 1/4” of metal between the hub outside diameter and the bottom of the keyway. Because of the extra stress involved with keyed wheels, capacity ratings should be reduced by 75% and our normal warranty does not apply. When ordering, please specify shaft size as well as the width and depth of desired keyway. The chart at right shows the standard keyway dimensions in relation to the shaft diameter.

Set screws are also available. Unless otherwise specified, if one set screw is desired it will be placed over the key-way. If two, the second will be at 90° from the key-way.

This listing of for a 10" Diameter Polyurethane Drive Wheel x 3" Tread Width

Questions? Please Call us @ 844-439-4335 or Contact Us Here

For quick online service please email us: sales@casterhq.com and a Caster Expert will help you answer any questions.

Due to the vast amount of Key-way Options and Wheel Sizes we Manufacture these Drive Wheels upon order.

Our lead-time for all Drive Wheels regardless of quantities ordered will normally take 1-2 Weeks to ship from when the order was placed.

Technical Specs

Hub Length: 3-1/4"
Bore Size: 24mm
Wheel Diameter: 10"
Tread Width: 3"
Material: Polyurethane on Steel
Wheel Durometer: 90-95 Shore A
Keyway: Yes
Set Screws: 2 (One on Keyway and one 90 Degrees from Keyway)
Color: Green Polyurethane tread on Silver Cast Iron Core (Custom Colors Available Depending on Quantity)
Weight Capacity: 2,250 lbs Per Wheel (Normally 2,000 lbs in a normal Caster Application) All Drive Wheels capacities are rated at 75% of the standard capacity.

Key Features

Hub Length: 3-1/4"
Bore Size: 24mm
Wheel Diameter: 10"
Tread Width: 3"
Material: Polyurethane on Steel
Wheel Durometer: 90-95 Shore A
Keyway: Yes
Set Screws: 2 (One on Keyway and one 90 Degrees from Keyway)
Color: Green Polyurethane tread on Silver Cast Iron Core (Custom Colors Available Depending on Quantity)
Weight Capacity: 2,250 lbs Per Wheel (Normally 2,000 lbs in a normal Caster Application) All Drive Wheels capacities are rated at 75% of the standard capacity.

Ordering & Shipping Information

Transparent pricing

All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.

Upfront shipping costs

Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.

Business-friendly ordering

We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.

Real support from product specialists

Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.

Trusted by industrial and commercial customers

CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.

Flat-rate shipping by order size. Final shipping cost shown before payment.
No post-checkout shipping adjustments or re-billing.
Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.

Made-to-order items (lead times)

Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.

Need an exact freight quote for a large order?

Additional Information

All Keyed Drive Wheels are Made to Order.
Our lead time usually takes around 2-3 Weeks regardless of quantity ordered.
