Hamilton Spinfinity Maxi-Duty Rigid Caster with 15" x 9" Natural Polyurethane (93A Ester) Presson Wheel with 1 1/2" Sealed Precision Ball Bearings Hamilton

Hamilton Spinfinity Maxi-Duty Rigid Caster with 15" x 9" Natural Polyurethane (93A Ester) Presson Wheel with 1 1/2" Sealed Precision Ball Bearings

Volume discounts applied at checkout

50-99 units: 5% Off
100-199 units: 10% Off
200+ units: 15% Off

.price-ui--loading { display: block !important; opacity: 1 !important; }

$3,902.00 USD

Status: In Stock

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: R-ZFMD-1590POYB-ULTRA

Product Overview

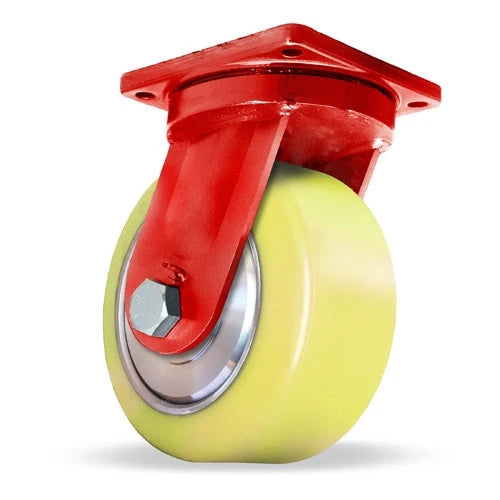

Hamilton Spinfinity Maxi-Duty Rigid Caster with 15" x 9" Natural Polyurethane (93A Ester) Presson Wheel with 1 1/2" Sealed Precision Ball Bearings

Experience the ultimate in heavy-duty casters with the Hamilton ZFMD-1590POYB-ULTRA-Designed to withstand the toughest environments and carry exceptionally heavy loads, this caster is a true workhorse in industrial applications. With its unrivaled durability and superior performance, the ZFMD-1590POYB-ULTRA is the go-to choice for those seeking reliability and strength.

This Hamilton caster is engineered with precision and meticulous attention to detail-ensuring exceptional quality and longevity. The ZFMD-1590POYB-ULTRA features a robust construction that can effortlessly handle extreme loads of up to [insert weight capacity] pounds, making it an ideal choice for heavy machinery, equipment, and transport carts.

Technical Specs

Swivel or Rigid caster Rigid
Load Capacity (lbs.) @ 3 mph 12,400 lbs
Wheel Diameter (in.) 15
Wheel Face (in.) 9
Overall Height (in.) 18.875
Mounting Plate (in.) 8 1/2 x 8 1/2
Mounting Bolt (in.) 0.625
Caster Color/Finish Crimson Powder
Wheel Type TerraTech Ultra
Wheel Color/Finish Natural Poly on CNC-Machined 1045 Blank
Bearing Type Precision Sealed Ball
Replacement Wheel W-1590-POYB-ULTRA-1-1/2
Wheel Material @ Tread Polyurethane
Shipping Weight (lbs.) 325
Bolt Holes (in.) 7 x 7
Caster Rig Type Weldment

Key Features

High Load Capacity: With an impressive weight capacity of [insert weight capacity] pounds, this caster excels in handling heavy loads effortlessly, providing reliable performance under intense working conditions.
Durability: Crafted with the highest quality materials, the ZFMD-1590POYB-ULTRA offers exceptional durability, ensuring long-lasting performance even in demanding industrial environments.
Smooth Maneuverability: Equipped with precision ball bearings, this caster delivers smooth and effortless movement, allowing for easy maneuvering of heavy equipment with minimal effort.
Corrosion Resistance: The caster's zinc-plated finish provides excellent corrosion resistance, protecting it from rust and extending its lifespan, even in harsh working environments.
Floor Protection: The non-marking polyurethane wheel tread prevents damage to floors, ensuring that your workspaces remain in pristine condition while providing quiet operation.
Enhanced Stability: The wide wheel base and sturdy design of the ZFMD-1590POYB-ULTRA ensure enhanced stability, minimizing the risk of tipping or imbalance during operation.
Versatility: This caster is suitable for a wide range of industrial applications, including manufacturing plants, warehouses, assembly lines, and heavy equipment transportation.
