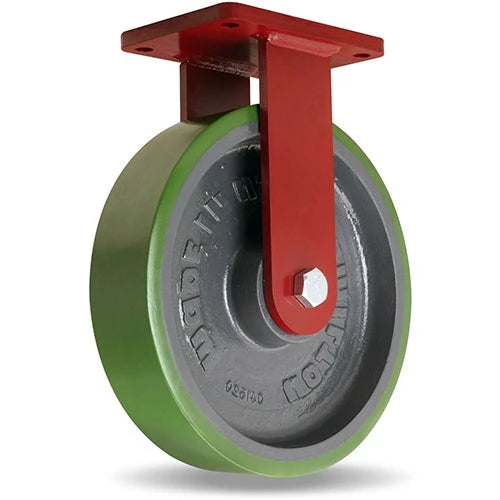

Hamilton Extra Heavy Duty Rigid Caster with 12" x 3" Duralast® Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Hamilton Extra Heavy Duty Rigid Caster with 12" x 3" Duralast® Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings

Volume discounts applied at checkout

50-99 units: 5% Off
100-199 units: 10% Off
200+ units: 15% Off

.price-ui--loading { display: block !important; opacity: 1 !important; }

$499.00 USD - $539.00 USD

Status: In Stock

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: R-EHD-12DB

Product Overview

Hamilton Extra Heavy Duty Rigid Caster with 12" x 3" Duralast® Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings

Introducing the Hamilton Caster Part# R-EHD-12DB, the ultimate solution for your heavy-duty material handling needs. This robust and durable caster is engineered to deliver exceptional performance, ensuring smooth and effortless movement of your heaviest loads. Whether you're operating in a warehouse, manufacturing facility, or any other industrial setting, the Hamilton Caster Part# R-EHD-12DB is designed to withstand the toughest environments and provide reliable functionality.

Crafted with precision and quality in mind, this caster boasts a combination of strength, stability, and versatility. The R-EHD-12DB is specifically designed for applications that require superior load-bearing capacity and long-lasting performance. Its heavy-duty construction and high weight rating make it an ideal choice for transporting bulky items, machinery, equipment, and more.

Featuring a robust double-ball raceway construction, this caster ensures smooth swiveling and maneuverability even under heavy loads. The double-ball design enhances load distribution, reducing friction and enabling easy rotation in any direction. With a large 12-inch diameter and a weight capacity of [insert weight capacity], it can effortlessly handle substantial loads while maintaining optimal stability.

The R-EHD-12DB comes equipped with a rugged, non-marking polyurethane wheel, specially formulated to provide excellent traction, reduce noise, and protect your floors from damage. The wheel is engineered to resist wear and tear, ensuring longevity and minimizing the need for frequent replacements. Its ergonomic design and premium materials make it suitable for both indoor and outdoor use, adapting seamlessly to various surfaces and environments.

This Hamilton Caster Part# R-EHD-12DB features a sturdy and corrosion-resistant steel frame, providing exceptional durability and longevity. The frame is meticulously engineered to withstand heavy impacts and harsh operating conditions, making it a reliable choice for demanding industrial applications. Additionally, it comes with a grease fitting, allowing for easy maintenance and ensuring smooth performance over time.

Invest in the Hamilton Caster Part# R-EHD-12DB today and experience the unmatched reliability and performance it offers. With its exceptional features and sturdy construction, this caster is the perfect choice for your heavy-duty material handling requirements.

Technical Specs

Swivel or Rigid caster Rigid
Load Capacity (lbs.) @ 3 mph 3500 lbs
Wheel Diameter (in.) 12
Wheel Face (in.) 3
Overall Height (in.) 14.5
Mounting Plate (in.) 5 1/2 x 7 1/2
Bolt Hole 1 (in.) 4 1/8 x 6 1/8
Mounting Bolt (in.) 0.5
Caster Color/Finish Crimson Powder
Wheel Type Duralast®
Wheel Color/Finish Green Poly on Gray Center
Bearing Type Precision Sealed Ball
Replacement Wheel W-1230-DB-3/4
Wheel Material @ Tread Polyurethane
Shipping Weight (lbs.) 55
Caster Rig Type Weldment
Wheel Core Material Cast Iron

Key Features

Heavy-duty construction for superior load-bearing capacity
12-inch diameter wheel for stability and efficient movement
Non-marking polyurethane wheel for traction and floor protection
Rugged steel frame for durability and corrosion resistance
Suitable for indoor and outdoor use
Grease fitting for easy maintenance and prolonged performance
