Hamilton Champion Swivel Caster with 12" x 3" Ergo-Glide XT 1" thick Polyurethane (82A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Hamilton Champion Swivel Caster with 12" x 3" Ergo-Glide XT 1" thick Polyurethane (82A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings

Volume discounts applied at checkout

50-99 units: 5% Off
100-199 units: 10% Off
200+ units: 15% Off

.price-ui--loading { display: block !important; opacity: 1 !important; }

$698.00 USD - $851.68 USD

Status: In Stock

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: S-CH-12EGB

Product Overview

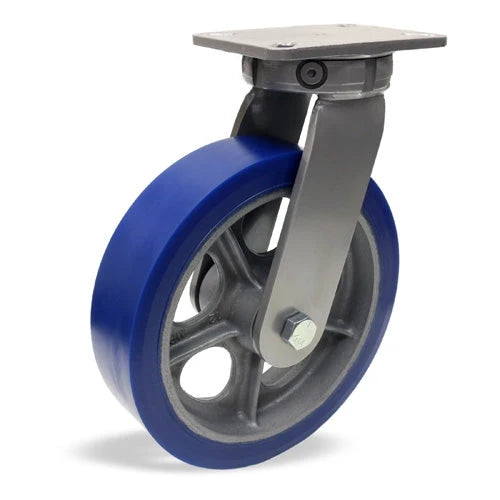

Hamilton Champion Swivel Caster with 12" x 3" Ergo-Glide XT 1" thick Polyurethane (82A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings

Introducing the Hamilton Caster CH-12EGB Champion Casters- the ultimate solution for your heavy-duty caster needs. Designed with unparalleled strength and durability, these casters are engineered to deliver exceptional performance in the most demanding industrial environments. Whether you're moving heavy machinery, equipment, or large payloads, the CH-12EGB Champion Casters are up to the task.

Manufactured by Hamilton Caster-a trusted leader in caster technology, these extra-heavy-duty casters are built to withstand the toughest conditions. With a load capacity of up to 3,8000 lbs, these casters provide reliable support and stability, ensuring smooth and efficient mobility in even the most challenging work settings.

The CH-12EGB Champion Casters boast a rugged construction-featuring a forged steel swivel construction and precision ball bearings for effortless maneuverability. The swivel section is heat-treated for added strength, while the wheels are equipped with premium polyurethane treads that provide excellent traction and floor protection. The casters also include a precision machined kingpin for enhanced stability and longevity.

Installing and securing the CH-12EGB Champion Casters is a breeze-The top plate is designed with a large, four-bolt pattern, allowing for easy mounting and ensuring a secure attachment to your equipment. The casters are also equipped with a total lock brake, which securely locks both the wheel and swivel, preventing any unwanted movement during stationary operations.

With a commitment to quality and performance-Hamilton Caster offers a range of additional customization options for the CH-12EGB Champion Casters. Choose from different wheel materials, including polyurethane, rubber, or cast iron, depending on your specific application requirements. You can also select various wheel sizes and bearing types to optimize performance and load distribution.

Technical Specs

Swivel or Rigid caster

Swivel

Load Capacity (lbs.) @ 3 mph

3800

Wheel Diameter (in.)

Wheel Face (in.)

Overall Height (in.)

15.5

Swivel Offset (in.)

2.5

Mounting Plate (in.)

5 1/4 x 7 1/4

Bolt Hole 1 (in.)

3 3/8 x 5 1/4

Bolt Hole 2 (in.)

4 1/8 x 6 1/8

Mounting Bolt (in.)

0.5

Caster Color/Finish

Platinum Powder

Wheel Type

ErgoGlide
Wheel Color/Finish

Blue Poly on Gray Center

Replacement Wheel

W-1231-EGB-3/4

Wheel Material @ Tread

Polyurethane

Shipping Weight (lbs.)

Caster Rig Type

Integral Forged Kingpin

Mounting Plate Length (in.)

7.25

Mounting Plate Width (in.)

5.25

Wheel Core Material

Cast Iron

Key Features

Extra-heavy-duty design with a load capacity of up to 20,000 lbs

Rugged-construction with a forged steel swivel and precision ball bearings

Heat-treated swivel section for added strength and durability

Premium-polyurethane treads for excellent traction and floor protection

Precision-machined kingpin for enhanced stability

Four-bolt-top plate for easy installation and secure mounting

Total-lock brake for immobilizing both the wheel and swivel

Customizable-options for wheel material, size, and bearing type
