The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

Under 350 lbs. each
351–675 lbs. each
676–1,250 lbs. each
1,251–2,000 lbs. each
2,001–4,000 lbs. each
4,001–7,500 lbs. each
7,501–10,000 lbs. each
10,001–15,000 lbs. each
15,001–20,000 lbs. each
20,001–30,000 lbs. each
30,000+ lbs. each

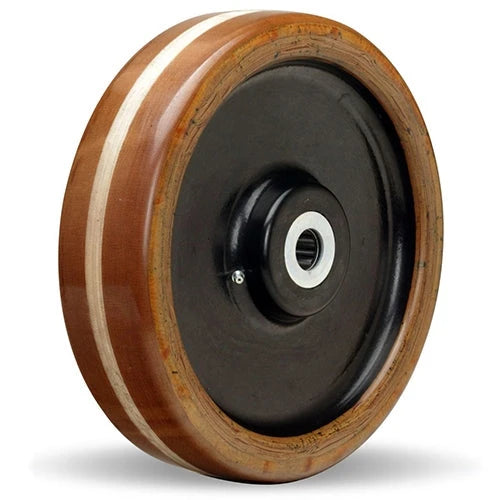

12" x 3" Phenolic Wheels

Diameter: 12 inTread: 3 inCapacity: up to 4,400 lb

This collection gathers industrial casters used on bake carts, metalworking fixtures, and debris-heavy floors. You will see wheel diameters 12 in, phenolic treads, and capacities 4,400 lb across the SKUs listed below. Softer treads quiet finished floors; harder compounds last longer on chips, heat, and rough concrete. Bring plate and stem measurements when replacing unmarked casters so the new corners sit level.
