The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

Under 350 lbs. each
351–675 lbs. each
676–1,250 lbs. each
1,251–2,000 lbs. each
2,001–4,000 lbs. each
4,001–7,500 lbs. each
7,501–10,000 lbs. each
10,001–15,000 lbs. each
15,001–20,000 lbs. each
20,001–30,000 lbs. each
30,000+ lbs. each

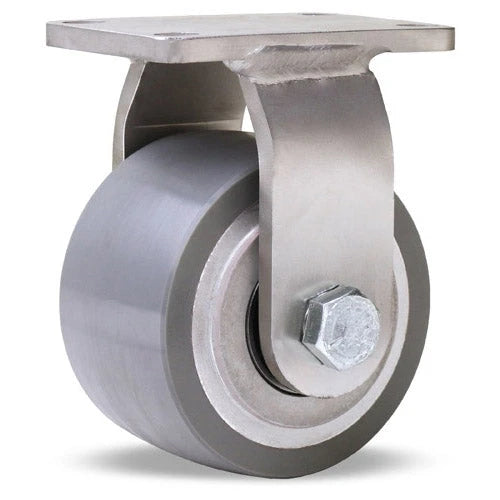

Hamilton Casters w/ 3-1/2" Wheels · Up to 800 lb · Polyurethane

Diameter: 3-1/2 inCapacity: up to 800 lb

This collection gathers plate-mount casters used on warehouse carts on epoxy and smooth concrete. Typical builds show wheel diameters 3-1/2 in, polyurethane and stainless treads, and capacities 600 to 800 lb. For dual-wheel or wide treads, check fork clearance and swivel radius in tight aisles. Confirm stem length and thread pitch on stem mounts so the shoulder seats flush in the boss.
