The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

Under 350 lbs. each
351–675 lbs. each
676–1,250 lbs. each
1,251–2,000 lbs. each
2,001–4,000 lbs. each
4,001–7,500 lbs. each
7,501–10,000 lbs. each
10,001–15,000 lbs. each
15,001–20,000 lbs. each
20,001–30,000 lbs. each
30,000+ lbs. each

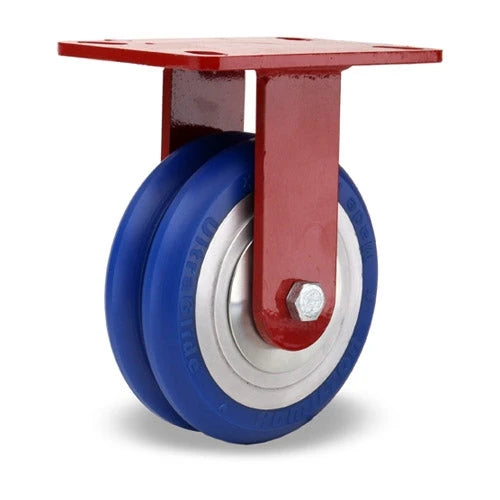

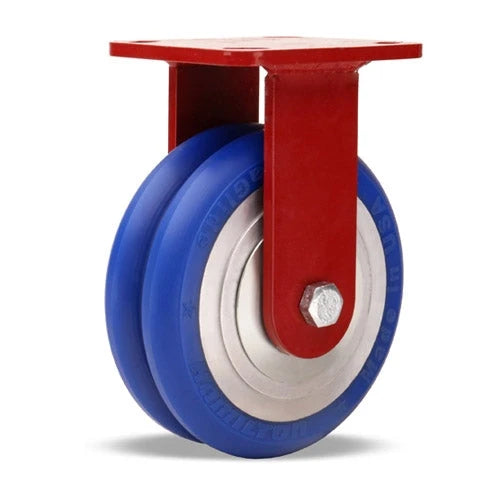

6" x 2" Casters

Diameter: 6 inTread: 2 inCapacity: up to 1,600 lb

Industrial tread compounds casters here serve warehouse carts, racks, and everyday plant fixtures. Typical builds show wheel diameters 6 in, plate-mount frames, and capacities 1,200 to 1,600 lb. Pair swivel and rigid casters for tracking, or use total locks where the cart must park on a grade. For dual-wheel or wide treads, check fork clearance and swivel radius in tight aisles.
