The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

Under 350 lbs. each
351–675 lbs. each
676–1,250 lbs. each
1,251–2,000 lbs. each
2,001–4,000 lbs. each
4,001–7,500 lbs. each
7,501–10,000 lbs. each
10,001–15,000 lbs. each
15,001–20,000 lbs. each
20,001–30,000 lbs. each
30,000+ lbs. each

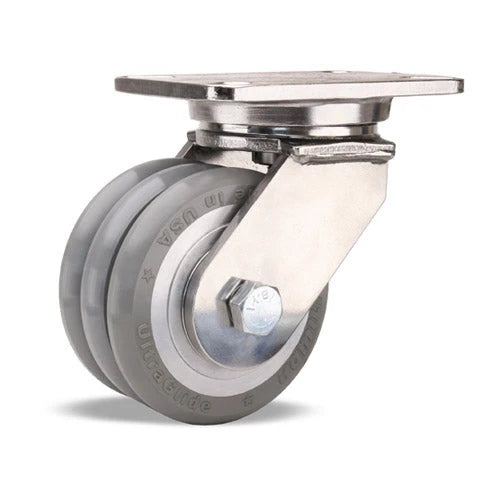

6" x 2" Stainless Steel Casters

Diameter: 6 inTread: 2, 3 inCapacity: up to 3,200 lb

6" x 2" Stainless Steel Casters for heavy warehouse carts, die carts, and plant fixtures. Expect wheel diameters 6 in, steel and stainless treads, and plate-mount frames. Use kingpinless or heavy plate series when shock loads keep shearing kingpin races. For dual-wheel or wide treads, check fork clearance and swivel radius in tight aisles. These heavy-duty options cover everyday heavy warehouse carts, die carts, and plant fixtures without jumping to extreme forged series.
