The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

Under 350 lbs. each
351–675 lbs. each
676–1,250 lbs. each
1,251–2,000 lbs. each
2,001–4,000 lbs. each
4,001–7,500 lbs. each
7,501–10,000 lbs. each
10,001–15,000 lbs. each
15,001–20,000 lbs. each
20,001–30,000 lbs. each
30,000+ lbs. each

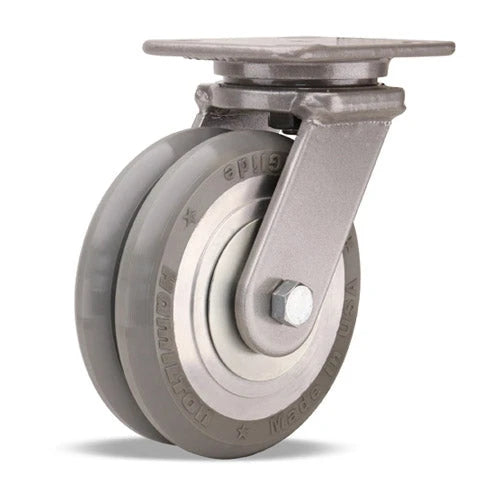

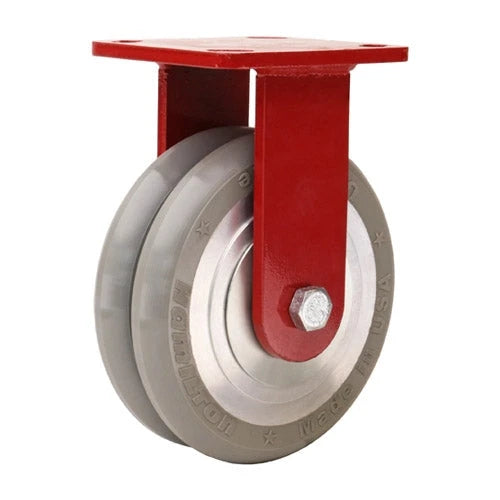

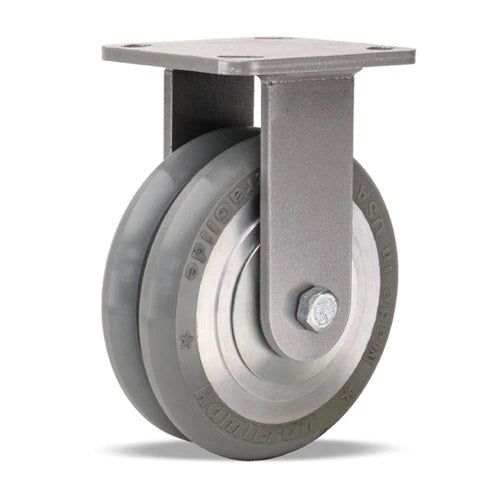

6" x 2" Casters - Ultraglide Kingpinless

Diameter: 6 inTread: 2 inCapacity: up to 2,000 lb

This collection gathers kingpinless and plate-mount casters used on heavy industrial carts that tear up kingpin races. Catalog chips cover wheel diameters 6 in and capacities 1,500 to 2,000 lb. Pair swivel and rigid casters for tracking, or use total locks where the cart must park on a grade. Replace worn corners in matched sets when possible so the cart tracks straight under load.
