The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

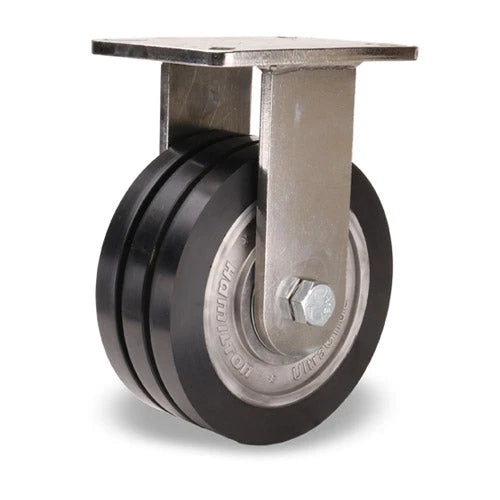

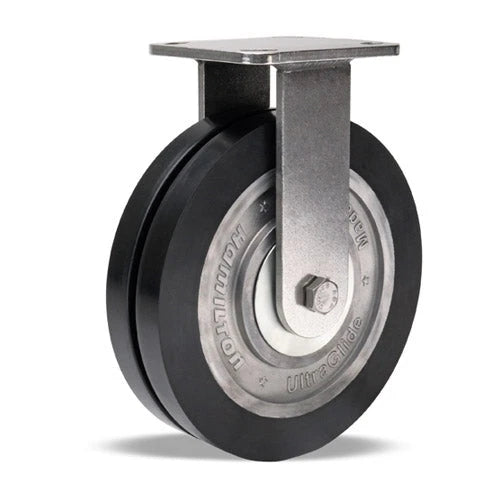

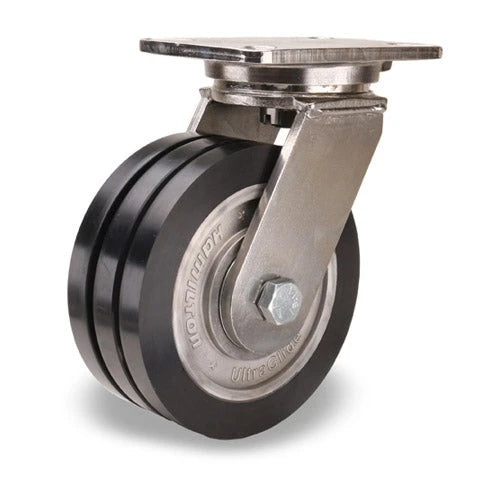

Hamilton UltraGlide Stainless Casters w/ UltraGlide XC Wheels · 8" Wheels · Up to 3,200 lb

Plate sizes: 3-3/8 x 5-1/4Diameter: 8 inTread: 3 inCapacity: up to 3,200 lb

Casters on the 3-3/8 x 5-1/4 plate pattern suit heavy warehouse carts, die carts, and plant fixtures. Typical builds show wheel diameters 8 in, stainless treads, and capacities 3,200 lb. Replace worn corners in matched sets when possible so the cart tracks straight under load. Larger plates spread bolt stress on thick frames under continuous tow abuse. When floors see chemicals or washdowns, prefer sealed bearings and non-absorbent wheel compounds.
