8" x 2" Stainless Steel Casters

Plate sizes: 4 x 4-1/2Bolt holes: 2-5/8 x 3-3/8 slotted to 3 x 3Diameter: 5, 6, 8 inTread: 2 inCapacity: up to 1,250 lb
Match a 4 x 4-1/2 top plate when bolting casters under chemical, food-contact, and washdown carts. Typical builds show wheel diameters 5, 6, 8 in, nylon, steel, and stainless treads, and capacities 1,000 to 1,250 lb. Softer treads quiet finished floors; harder compounds last longer on chips, heat, and rough concrete. For dual-wheel or wide treads, check fork clearance and swivel radius in tight aisles.

Shop by type

3 types

Wheel = wheel diameter · capacity is per caster.

1250 lbs
TieredPricing
Durastar Medium Heavy Duty S30 Series - 8" x 2" Glass-filled Nylon Swivel Caster - 1250 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar
Ships in 1-3 Business Days
8" x 2" Glass-Filled Nylon Swivel Stainless Caster – 1250 lb
Part # S30-S-820-MA-03
from $58.00
Volume pricing available
NylonPlate
Load rating
1250 lbs
Diameter 8"
Capacity 1250 lbs
Wheel Nylon
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty S30 Series - 8" x 2" Glass-filled Nylon Swivel Caster...
Shop Product
1200 lbs
TieredPricing
Durastar Medium Heavy Duty S30 Series - 6" x 2" Glass-filled Nylon Swivel Caster - 1200 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar
Ships in 1-3 Business Days
6" x 2" Glass-Filled Nylon Swivel Stainless Caster – 1200 lb · DuraStar S30 Series
Part # S30-S-620-MA-03
from $55.00
Volume pricing available
NylonPlate
Load rating
1200 lbs
Diameter 6"
Capacity 1200 lbs
Wheel Nylon
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 7-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty S30 Series - 6" x 2" Glass-filled Nylon Swivel Caster...
Shop Product
1000 lbs
TieredPricing
Durastar Medium Heavy Duty S30 Series - 5" x 2" Glass-filled Nylon Swivel Caster - 1000 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar
Ships in 1-3 Business Days
5" x 2" Glass-Filled Nylon Swivel Stainless Caster – 1000 lb · DuraStar S30 Series
Part # S30-S-520-MA-03
from $54.00
Volume pricing available
NylonPlate
Load rating
1000 lbs
Diameter 5"
Capacity 1000 lbs
Wheel Nylon
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 6-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty S30 Series - 5" x 2" Glass-filled Nylon Swivel Caster...
Shop Product
1250 lbs
TieredPricing
Durastar Medium Heavy Duty S30 Series - 8" x 2" Glass-filled Nylon Rigid Caster - 1250 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar
Ships in 1-3 Business Days
8" x 2" Glass-filled Nylon Rigid Stainless Caster – 1250 lb
Part # S30-R-820-MA-03
from $55.00
Volume pricing available
NylonPlate
Load rating
1250 lbs
Diameter 8"
Capacity 1250 lbs
Wheel Nylon
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty S30 Series - 8" x 2" Glass-filled Nylon Rigid Caster...
Shop Product
1200 lbs
TieredPricing

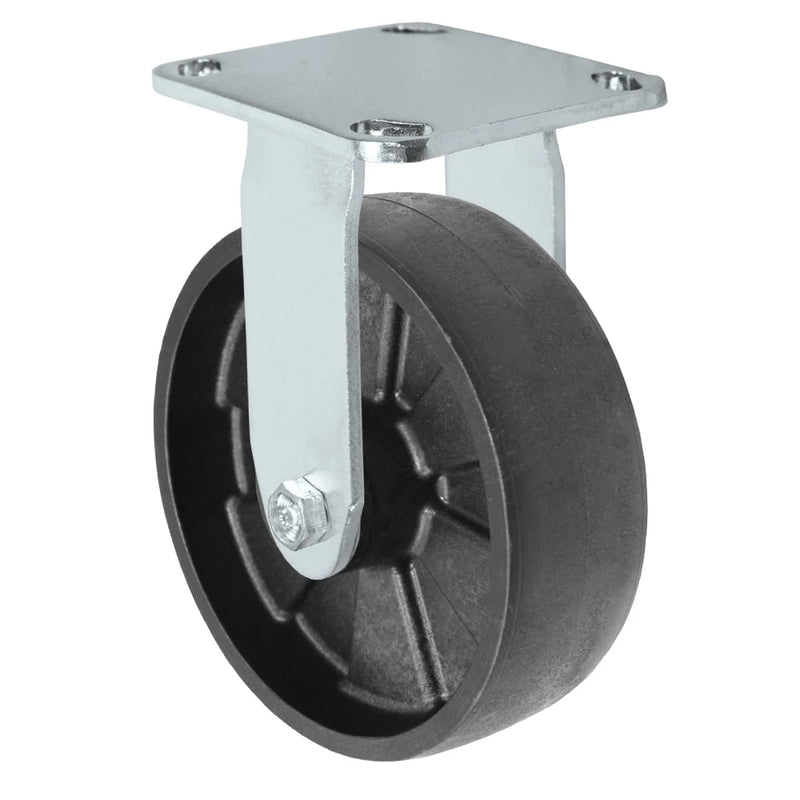

Durastar Medium Heavy Duty S30 Series - 6" x 2" Glass-filled Nylon Rigid Caster - 1200 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar
Ships in 1-3 Business Days
6" x 2" Glass-Filled Nylon Rigid Stainless Caster – 1200 lb · DuraStar S30 Series
Part # S30-R-620-MA-03
from $53.00
Volume pricing available
NylonPlate
Load rating
1200 lbs
Diameter 6"
Capacity 1200 lbs
Wheel Nylon
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 7-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty S30 Series - 6" x 2" Glass-filled Nylon Rigid Caster...
Shop Product
1000 lbs
TieredPricing
Durastar Medium Heavy Duty S30 Series - 5" x 2" Glass-filled Nylon Rigid Caster - 1000 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar
Ships in 1-3 Business Days
5" x 2" Glass-Filled Nylon Rigid Stainless Caster – 1000 lb
Part # S30-R-520-MA-03
from $52.00
Volume pricing available
NylonPlate
Load rating
1000 lbs
Diameter 5"
Capacity 1000 lbs
Wheel Nylon
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 6-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty S30 Series - 5" x 2" Glass-filled Nylon Rigid Caster...
Shop Product
