Hamilton Thread Guards TG Casters w/ Aqualite Wheels · Up to 1,250 lb · 4"–8" · Polyolefin

Diameter: 4, 5, 6, 8 inTread: 2 inCapacity: up to 1,250 lb
Industrial tread compounds casters here serve warehouse carts, racks, and everyday plant fixtures. You will see wheel diameters 4, 5, 6, 8 in, threaded-stem and plate-mount frames, and capacities 1,250 lb across the SKUs listed below. When floors see chemicals or washdowns, prefer sealed bearings and non-absorbent wheel compounds. Use kingpinless or heavy plate series when shock loads keep shearing kingpin races.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

1250 lbs
TieredPricing
Hamilton S-TG-8AZ Thread Guard Swivel Caster - 8x2 Inch Aqualite Polyolefin Wheel with Delrin Bearing for Industrial Use Hamilton
Made to Order · 4-6 Wk
Hamilton S-TG-8AZ 8" x 2" Aqualite Swivel Thread Guard Caster – 1250 lb
Part # S-TG-8AZ
from $103.00
Volume pricing available
PolyolefinPlate
Load rating
1250 lbs
Diameter 8"
Capacity 1250 lbs
Wheel Polyolefin
Mount Plate
More Details Less Details
Width 2"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton S-TG-8AZ Thread Guard Swivel Caster | 8" x 2" Aqualite Wheel Hamilton S-TG-8AZ...
Shop Product
TieredPricing
Hamilton S-TG-6AZ Thread Guard Swivel Caster - 6" x 2" Aqualite Wheel with 3/4" Delrin Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton S-TG-6AZ 6" x 2" Aqualite Swivel Thread Guard Caster
Part # S-TG-6AZ
from $84.00
Volume pricing available
PolyolefinPlate
Diameter 6"
Wheel Polyolefin
Mount Plate
More Details Less Details
Width 2"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
S-TG-6AZ Hamilton Thread Guard Swivel Caster with Aqualite Wheel 6" x 2" Aqualite Polyolefin...
Shop Product
1250 lbs
TieredPricing
Hamilton S-TG-5AZ Thread Guard Swivel Caster - 5x2" Aqualite Polyolefin Wheel with Durable Delrin Bearing for Industrial Use Hamilton
Made to Order · 4-6 Wk
Hamilton S-TG-5AZ 5" x 2" Aqualite Swivel Caster – 1250 lb
Part # S-TG-5AZ
from $95.00
Volume pricing available
PolyolefinPlate
Load rating
1250 lbs
Diameter 5"
Capacity 1250 lbs
Wheel Polyolefin
Mount Plate
More Details Less Details
Width 2"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton S-TG-5AZ Thread Guard Swivel Caster | 5" x 2" Aqualite Polyolefin Wheel Hamilton...
Shop Product
1250 lbs
TieredPricing
Hamilton S-TG-4AZ Thread Guard Swivel Caster - 4x2" Aqualite Polyolefin Wheel with Delrin Bearing for Industrial Use Hamilton
Made to Order · 4-6 Wk
Hamilton S-TG-4AZ 4" x 2" Aqualite Swivel Thread Guard Caster – 1250 lb
Part # S-TG-4AZ
from $76.00
Volume pricing available
PolyolefinPlate
Load rating
1250 lbs
Diameter 4"
Capacity 1250 lbs
Wheel Polyolefin
Mount Plate
More Details Less Details
Width 2"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton S-TG-4AZ Thread Guard Swivel Caster | 4" x 2" Aqualite Polyolefin Wheel Hamilton...
Shop Product
1250 lbs
TieredPricing
Hamilton R-TG-8AZ Thread Guard Rigid Caster - 8x2 Inch Aqualite Polyolefin Wheel with Delrin Bearing for Industrial Use Hamilton
Made to Order · 4-6 Wk
Hamilton R-TG-8AZ 8" x 2" Aqualite Rigid Caster – 1250 lb
Part # R-TG-8AZ
from $90.00
Volume pricing available
PolyolefinPlate
Load rating
1250 lbs
Diameter 8"
Capacity 1250 lbs
Wheel Polyolefin
Mount Plate
More Details Less Details
Width 2"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton S-TG-8AZ Thread Guard Swivel Caster | 8" x 2" Aqualite Wheel Hamilton R-TG-8AZ...
Shop Product
1250 lbs
TieredPricing

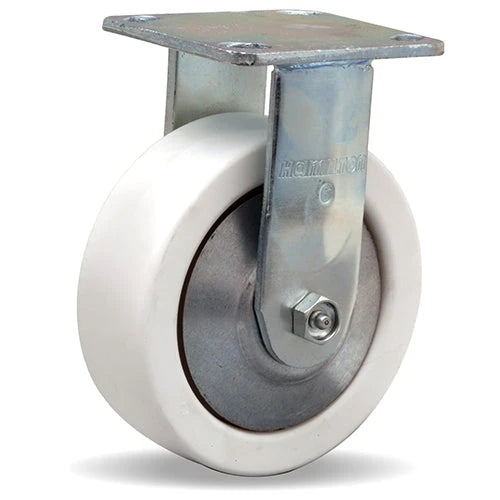

Hamilton R-TG-6AZ Thread Guard Rigid Caster - 6" x 2" Aqualite Wheel with 3/4" Delrin Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton R-TG-6AZ 6" x 2" Aqualite Rigid Thread Guard Caster – 1250 lb
Part # R-TG-6AZ
from $79.00
Volume pricing available
PolyolefinPlate
Load rating
1250 lbs
Diameter 6"
Capacity 1250 lbs
Wheel Polyolefin
Mount Plate
More Details Less Details
Width 2"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
R-TG-6AZ Hamilton Thread Guard Rigid Caster with Aqualite Wheel 6" x 2" Aqualite Polyolefin...
Shop Product
1250 lbs
TieredPricing

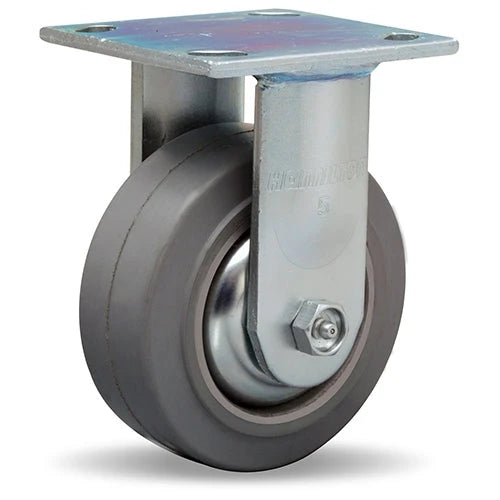

Hamilton R-TG-5AZ Thread Guard Rigid Caster - 5x2" Aqualite Polyolefin Wheel with Durable Delrin Bearing for Industrial Use Hamilton
Made to Order · 4-6 Wk
Hamilton R-TG-5AZ 5" x 2" Aqualite Rigid Thread Guard Caster – 1250 lb
Part # R-TG-5AZ
from $77.00
Volume pricing available
PolyolefinPlate
Load rating
1250 lbs
Diameter 5"
Capacity 1250 lbs
Wheel Polyolefin
Mount Plate
More Details Less Details
Width 2"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton S-TG-5AZ Thread Guard Swivel Caster | 5" x 2" Aqualite Polyolefin Wheel Hamilton...
Shop Product
1250 lbs
TieredPricing

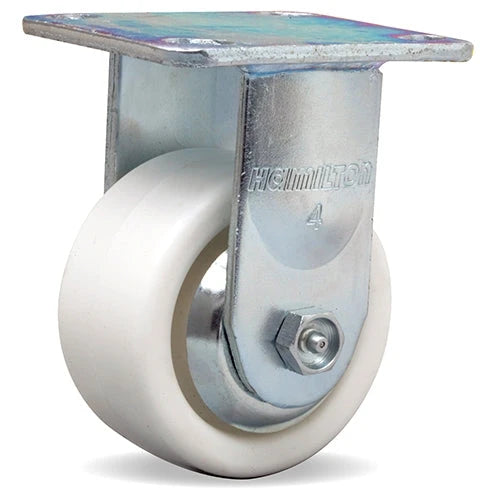

Hamilton R-TG-4AZ Thread Guard Rigid Caster - 4x2" Aqualite Polyolefin Wheel with Delrin Bearing for Industrial Use Hamilton
Made to Order · 4-6 Wk
Hamilton R-TG-4AZ 4" x 2" Aqualite Rigid Thread Guard Caster – 1250 lb
Part # R-TG-4AZ
from $81.00
Volume pricing available
PolyolefinPlate
Load rating
1250 lbs
Diameter 4"
Capacity 1250 lbs
Wheel Polyolefin
Mount Plate
More Details Less Details
Width 2"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton S-TG-4AZ Thread Guard Swivel Caster | 4" x 2" Aqualite Polyolefin Wheel Hamilton...
Shop Product
