16" x 5" Polyurethane Casters — Duralast XC Duralast Rigid Hamilton · R-MD-105DT70

Diameter: 10, 12, 16 inTread: 4, 5 inCapacity: up to 10,000 lb
This collection gathers plate-mount casters used on warehouse carts on epoxy and smooth concrete. Catalog chips cover wheel diameters 10, 12, 16 in, polyurethane treads, and capacities 6,500 to 10,000 lb. When floors see chemicals or washdowns, prefer sealed bearings and non-absorbent wheel compounds. Bring plate and stem measurements when replacing unmarked casters so the new corners sit level. These extreme-duty options cover everyday warehouse carts on epoxy and smooth concrete without jumping to extreme forged series.

Shop by type

3 types

Wheel = wheel diameter · capacity is per caster.

10000 lbs
TieredPricing
Hamilton Maxi-Duty Swivel Caster with 16" x 5" Duralast XC Polyurethane (70D) on Cast Iron Wheel with 1 1/4" Precision Tapered Roller Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton 16" x 5" Duralast XC Swivel Caster – 10000 lb
Part # S-MD-165DT70
from $2,186.00
Volume pricing available
Cast IronPlate
Load rating
10000 lbs
Diameter 16"
Capacity 10000 lbs
Wheel Cast Iron
Mount Plate
More Details Less Details
Width 5"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Swivel Caster with 16" x 5" Duralast XC Polyurethane (70D) on Cast...
Shop Product
7000 lbs
TieredPricing
Hamilton Maxi-Duty Swivel Caster with 16" x 4" Duralast XC Polyurethane (70D) on Cast Iron Wheel with 1 1/4" Precision Tapered Roller Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-MD-164DT70 16" x 4" Duralast XC Swivel Caster – 7000 lb
Part # S-MD-164DT70
from $1,879.00
Volume pricing available
Cast IronPlate
Load rating
7000 lbs
Diameter 16"
Capacity 7000 lbs
Wheel Cast Iron
Mount Plate
More Details Less Details
Width 4"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Swivel Caster with 16" x 4" Duralast XC Polyurethane (70D) on Cast...
Shop Product
8000 lbs
TieredPricing
Hamilton Maxi-Duty Swivel Caster with 12" x 5" Duralast XC Polyurethane (70D) on Cast Iron Wheel with 1 1/4" Precision Tapered Roller Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-MD-125DT70 12" x 5" Duralast XC Swivel Caster – 8000 lb
Part # S-MD-125DT70
from $1,490.00
Volume pricing available
Cast IronPlate
Load rating
8000 lbs
Diameter 12"
Capacity 8000 lbs
Wheel Cast Iron
Mount Plate
More Details Less Details
Width 5"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Swivel Caster with 12" x 5" Duralast XC Polyurethane (70D) on Cast...
Shop Product
6500 lbs
TieredPricing
Hamilton Maxi-Duty Swivel Caster with 10" x 5" Duralast XC Polyurethane (70D) on Cast Iron Wheel with 1 1/4" Precision Tapered Roller Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-MD-105DT70 10" x 5" Duralast XC Swivel Caster – 6500 lb
Part # S-MD-105DT70
from $1,409.00
Volume pricing available
Cast IronPlate
Load rating
6500 lbs
Diameter 10"
Capacity 6500 lbs
Wheel Cast Iron
Mount Plate
More Details Less Details
Width 5"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Swivel Caster with 10" x 5" Duralast XC Polyurethane (70D) on Cast...
Shop Product
10000 lbs
TieredPricing
Hamilton Maxi-Duty Rigid Caster with 16" x 5" Duralast XC Polyurethane (70D) on Cast Iron Wheel with 1 1/4" Precision Tapered Roller Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton MD-165DT70 16" x 5" Duralast XC Rigid Caster – 10000 lb
Part # R-MD-165DT70
$1,770.00
Volume pricing available
Cast IronPlate
Load rating
10000 lbs
Diameter 16"
Capacity 10000 lbs
Wheel Cast Iron
Mount Plate
More Details Less Details
Width 5"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Rigid Caster with 16" x 5" Duralast XC Polyurethane (70D) on Cast...
Shop Product
7700 lbs
TieredPricing
Hamilton Maxi-Duty Rigid Caster with 16" x 5" Duralast Polyurethane (95A) on Cast Iron Wheel with 1 1/4" Precision Tapered Roller Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton MD-165DT 16" x 5" Duralast Rigid Caster – 7700 lb
Part # R-MD-165DT
$2,043.00
Volume pricing available
Cast IronPlate
Load rating
7700 lbs
Diameter 16"
Capacity 7700 lbs
Wheel Cast Iron
Mount Plate
More Details Less Details
Width 5"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Swivel Caster with 16" x 5" Duralast Polyurethane (95A) on Cast Iron...
Shop Product
7000 lbs
TieredPricing

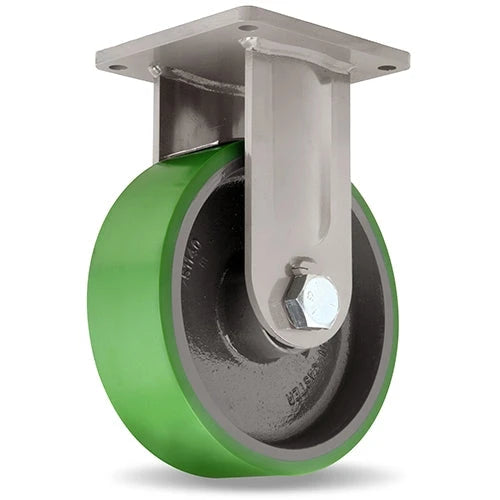

Hamilton Maxi-Duty Rigid Caster with 16" x 4" Duralast XC Polyurethane (70D) on Cast Iron Wheel with 1 1/4" Precision Tapered Roller Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-MD-164DT70 16" x 4" Duralast XC Rigid Caster – 7000 lb
Part # R-MD-164DT70
$1,161.00
Volume pricing available
Cast IronPlate
Load rating
7000 lbs
Diameter 16"
Capacity 7000 lbs
Wheel Cast Iron
Mount Plate
More Details Less Details
Width 4"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Rigid Caster with 16" x 4" Duralast XC Polyurethane (70D) on Cast...
Shop Product
8000 lbs
TieredPricing
Hamilton Maxi-Duty Rigid Caster with 12" x 5" Duralast XC Polyurethane (70D) on Cast Iron Wheel with 1 1/4" Precision Tapered Roller Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-MD-125DT70 12" x 5" Duralast XC Rigid Caster – 8000 lb
Part # R-MD-125DT70
$1,106.00
Volume pricing available
Cast IronPlate
Load rating
8000 lbs
Diameter 12"
Capacity 8000 lbs
Wheel Cast Iron
Mount Plate
More Details Less Details
Width 5"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Rigid Caster with 12" x 5" Duralast XC Polyurethane (70D) on Cast...
Shop Product
6500 lbs
TieredPricing
Hamilton Maxi-Duty Rigid Caster with 10" x 5" Duralast XC Polyurethane (70D) on Cast Iron Wheel with 1 1/4" Precision Tapered Roller Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-MD-105DT70 10" x 5" Duralast XC Rigid Caster – 6500 lb
Part # R-MD-105DT70
$1,007.00
Volume pricing available
Cast IronPlate
Load rating
6500 lbs
Diameter 10"
Capacity 6500 lbs
Wheel Cast Iron
Mount Plate
More Details Less Details
Width 5"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Rigid Caster with 10" x 5" Duralast XC Polyurethane (70D) on Cast...
Shop Product
