The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

Under 350 lbs. each
351–675 lbs. each
676–1,250 lbs. each
1,251–2,000 lbs. each
2,001–4,000 lbs. each
4,001–7,500 lbs. each
7,501–10,000 lbs. each
10,001–15,000 lbs. each
15,001–20,000 lbs. each
20,001–30,000 lbs. each
30,000+ lbs. each

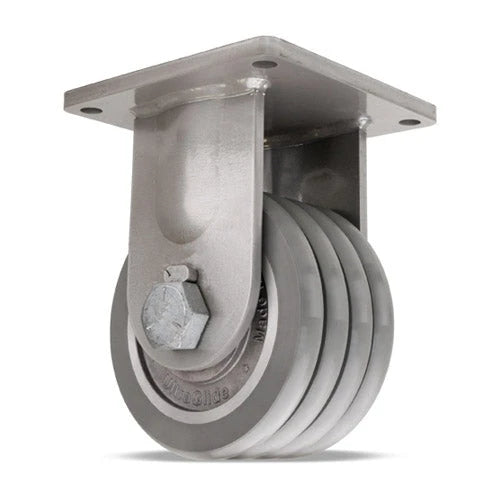

8" x 4" Casters

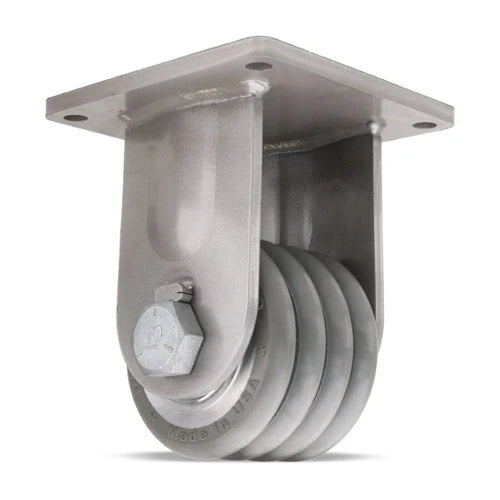

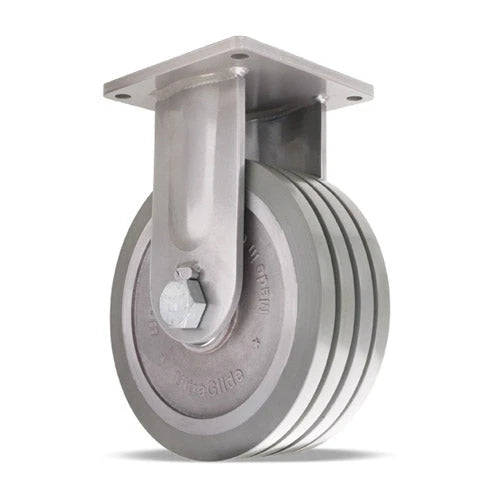

Diameter: 6, 8, 12 inTread: 4 inCapacity: up to 5,650 lb

Industrial tread compounds casters here serve heavy warehouse carts, die carts, and plant fixtures. You will see wheel diameters 6, 8, 12 in, plate-mount frames, and capacities 3,200 to 5,650 lb across the SKUs listed below. Use kingpinless or heavy plate series when shock loads keep shearing kingpin races. Replace worn corners in matched sets when possible so the cart tracks straight under load.
