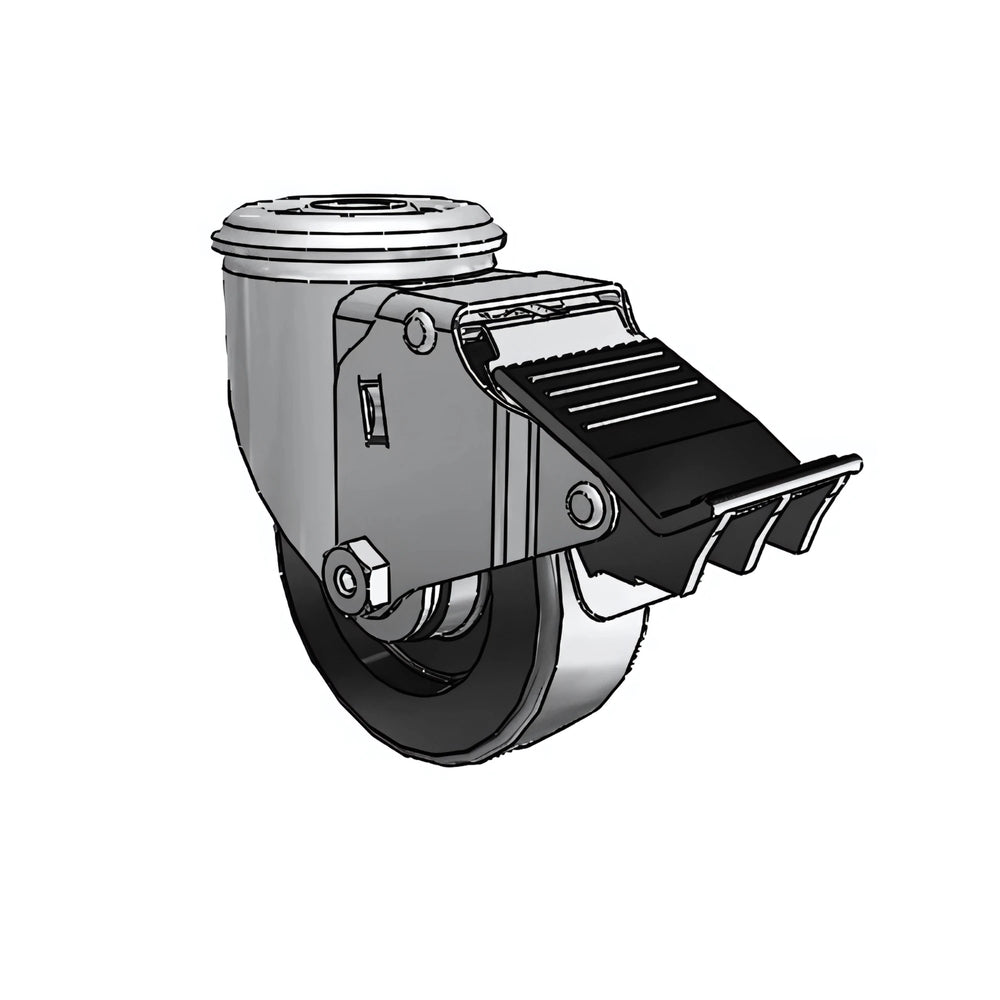

Experience superior mobility and control with our 3.5"x1.25" Polyolefin Swivel Caster. Engineered with a Delrin bearing for smooth operation and equipped with a total lock mechanism, this caster offers both versatility and security for your industrial applications.
Perfect for manufacturing facilities, warehouses, and material handling equipment. The total lock feature ensures stability when needed, while the polyolefin wheel provides durability and floor protection.
Have questions about this caster or need help selecting the right product for your project? Our Caster Experts are available weekdays from 8 am to 5 pm to provide personalized assistance and expert advice.
Supports up to 230 lb, ideal for industrial and commercial applications.
Ensures smooth swivel action and enhanced durability in various environments.
Provides secure positioning when needed, enhancing safety and stability.
Offers excellent floor protection, non-marking properties, and chemical resistance.

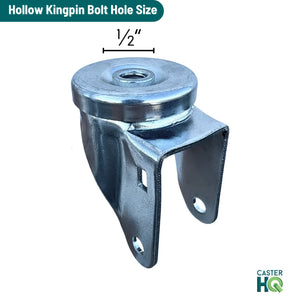

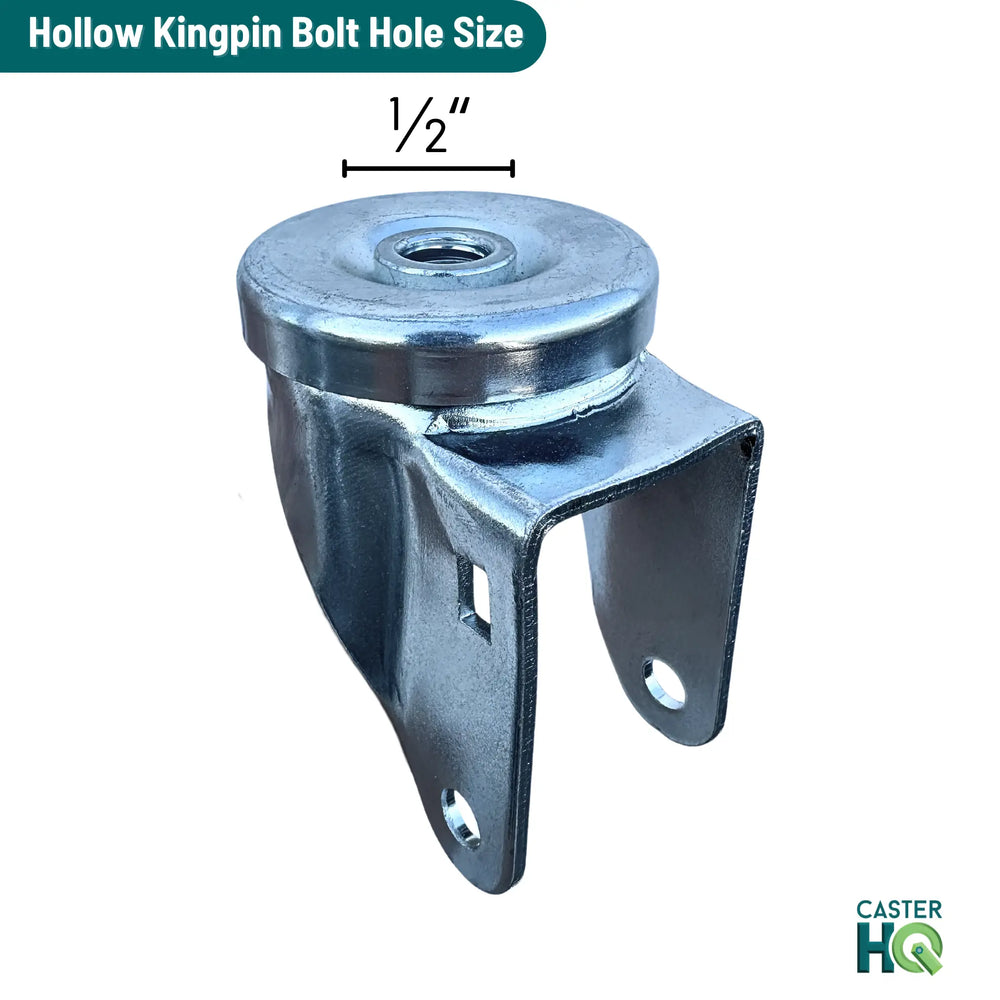

1/2" Hollow Rivet fastening for easy installation and secure attachment.
4.56" mount height and 4.75" swivel radius for efficient space utilization.
Suitable for environments where moisture or chemicals may be present.
Ideal for noise-sensitive areas like hospitals, offices, and retail spaces.
Performs well in a wide range of temperatures, enhancing versatility.
Low-maintenance design for long-term reliability and cost-effectiveness.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
Our 3.5"x1.25" Polyolefin Swivel Caster with Delrin Bearing and Total Lock offers a robust solution for various industrial and commercial applications. With a load capacity of 230 lb, this caster combines durability, smooth operation, and secure positioning in one compact design[1][2].
This versatile caster is perfect for:
Our casters are designed and manufactured to the highest standards, ensuring reliable performance and exceptional value. With features like double ball bearing heat-treated raceways and 5/8" bolted kingpins, these casters are built to withstand the demands of industrial environments.
This Colson 3.5" x 1.25" Polyolefin Swivel Total Lock Caster – 230 lb is rated to 230 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyolefin wheel with a 1-1/4" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Total Lock Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyolefin wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 4.56". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$50.00
| Identification | |
| Brand | colson header1 |
| Dimensions & Mounting | |
| Wheel Diameter | 3-1/2" |
| Wheel Tread Width | 1-1/4" |
| Overall Height | 4.56" |
| Mount Style | Plate |
| Rig Type | Swivel with Total Lock Brake |
| Load & Performance | |
| Wheel Capacity | 230 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | Total Lock Brake |
| Materials & Finish | |
| Wheel Material | Polyolefin |
| Frame Material | Zinc Plated Steel |
