The MedCaster SS-06TPX-125-TL-TP01 Swivel Caster is purpose-built for sensitive environments such as hospitals, laboratories, and pharmaceutical facilities. With a 6-inch thermoplastic rubber wheel and total lock brake, this caster delivers quiet, non-marking performance while maintaining top-tier stability.
Its stainless steel frame resists corrosion, making it ideal for clean rooms, surgical tables, and utility carts. The 2-1/2" x 3-5/8" top plate ensures secure mounting to a wide range of equipment, from medical carts to case carts and lab tables.
Engineered for reliability and ease of use, the total lock mechanism simultaneously secures the wheel and swivel, preventing unwanted motion. This enhances safety and maneuverability in fast-paced medical settings.
Upgrade your medical or laboratory carts with the MedCaster 6" Stainless Swivel Caster and experience premium performance, cleanliness, and stability in one precision-engineered solution.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

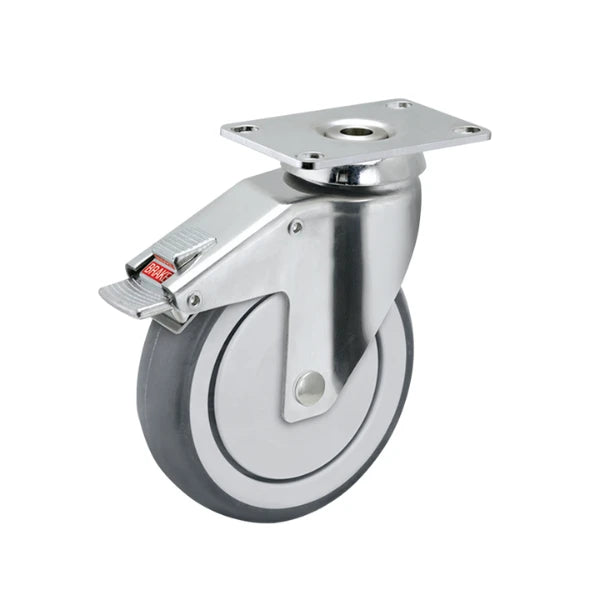

The Faultless SS-06TPX-125-TL-TP01 is a premium 6" x 1-1/4" medical-grade swivel caster engineered for reliability in sterile and demanding environments. Designed with a corrosion-resistant stainless steel frame and equipped with a non-marking thermoplastic rubber (TPR) wheel, this caster excels in applications where cleanliness, quiet operation, and durability are essential.
Ideal for use on hospital carts, surgical tables, clean room carts, pharmaceutical equipment, and laboratory tables, this caster supports up to 240 lbs, offering a stable and smooth rolling experience even under moderate to heavy loads. The included Total Lock brake system ensures both the wheel and swivel are securely locked, providing safe and stationary positioning when needed.
This caster’s stainless steel construction makes it resistant to moisture, harsh cleaning agents, and frequent sanitation—essential qualities for medical, pharmaceutical, and lab settings. The smooth surface and clean design also reduce bacteria retention and make sanitization simple and efficient.
Whether you’re outfitting a new surgical suite or replacing wheels on lab carts, the Faultless 6" Total Lock Swivel Caster offers the performance and trust required by healthcare professionals and industrial engineers alike.
Upgrade your mobility systems with the Faultless SS-06TPX-125-TL-TP01 Medical Swivel Caster. Combining ergonomic handling, hygienic construction, and dependable braking, this caster is the go-to choice for high-performance movement in sterile, sensitive, and professional environments.
This MedCaster SS-06TPX-125-TL-TP01 6" x 1-1/4" TPR Swivel Total Lock Caster – 240 lb is rated to 240 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Gray Rubber wheel with a 1-1/4" tread width. Rubber absorbs shock and protects floors, and runs quietly, which suits noise-sensitive and light-to-medium duty use.
This caster uses a top-plate mount with a 2-1/2" x 3-5/8" plate and a 1-3/4" x 2-13/16" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Total Lock Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Gray Rubber wheel performs best on rough, uneven, or outdoor surfaces such as asphalt, gravel, and cracked concrete. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 7.4063". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$176.00
| Identification | |
| Brand | MedCaster |
| Dimensions & Mounting | |
| Wheel Diameter | 6" |
| Wheel Tread Width | 1-1/4" |
| Overall Height | 7.4063" |
| Plate Size | 2-1/2" x 3-5/8" |
| Bolt Hole Pattern | 1-3/4" x 2-13/16" |
| Mount Style | Plate |
| Rig Type | Swivel with Total Lock Brake |
| Load & Performance | |
| Wheel Capacity | 240 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | Total Lock Brake |
| Materials & Finish | |
| Wheel Material | Gray Rubber |
| Wheel Core Material | Polyolefin |
| Frame Material | Stainless Steel |
