All measurements indicate the wheel diameter by the tread width.

The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″
BHP: 1-3/4″ × 2-7/8″, slotted to 3″
BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″
BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″
BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)
BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)
BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
(3″ Wide Casters), Industry-Standard
(3″ Wide Casters), Industry-Standard
BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
View All • 21 Plate Sizes
View All • 21 Plate Sizes
Plate Casters
Plate Casters
Stem Casters
Stem Casters
Stainless Casters
Stainless Casters
Ergonomic Casters
Ergonomic Casters
Leveling Casters
Leveling Casters
Back to Wheels
Caster Wheel Materials & Selection Guide

Caster Wheel Materials & Selection Guide
Polyolefin Wheels

Polyolefin Wheels
High Temperature Wheels

High Temperature Wheels
Track Wheels (All Types)

Track Wheels (All Types)
Hand Truck Wheels

Hand Truck Wheels
Rubber Wheels (All Types)

Rubber Wheels (All Types)
Nylon Wheels

Nylon Wheels
Keyed Drive Wheels

Keyed Drive Wheels
Pneumatic Wheels

Pneumatic Wheels
Atx Off-road Wheels

Atx Off-road Wheels
Poly Wheels (All Types)

Poly Wheels (All Types)
Phenolic Wheels

Phenolic Wheels
Metal Wheels (All Types)

Metal Wheels (All Types)
Flat-free (Foam-filled)

Flat-free (Foam-filled)
Wheel Replacement Parts

Wheel Replacement Parts
Back to Parts
Caster Plate Mounting Hardware

Caster Plate Mounting Hardware
Quick Change Caster Pads

Quick Change Caster Pads
Caster Frames - Swivel & Rigid

Caster Frames - Swivel & Rigid
Sockets & T-nuts For Casters

Sockets & T-nuts For Casters
Washers

Washers
Expanding Rubber Adapter Kits

Expanding Rubber Adapter Kits
Bumpers

Bumpers
Axles & Nuts

Axles & Nuts
Spanner Bushings

Spanner Bushings
Caster Shims & Weld Plates

Caster Shims & Weld Plates
Furniture Glides

Furniture Glides
Floor Truck Locks

Floor Truck Locks
Swivel Locks

Swivel Locks
Wheel Bearings

Wheel Bearings
Back to Material Handling

Furniture & Equipment Movers
Furniture Dollies

Furniture Dollies
Hydraulic Lift Tables

Hydraulic Lift Tables
Utility Carts

Utility Carts
Pallet Dollies

Pallet Dollies
Safe & Appliance Dollies

Safe & Appliance Dollies
Carts & Platform Trucks

Carts & Platform Trucks
Hand Trucks & Accessories

Hand Trucks & Accessories
Ratchet Straps & Tie Downs

Ratchet Straps & Tie Downs
Three Wheel Dollies

Three Wheel Dollies
Wire Shelving

Wire Shelving
Pallet Jacks

Pallet Jacks
Stackers

Stackers
Heavy Duty Tilt Trucks

Heavy Duty Tilt Trucks
Ball Transfers

Ball Transfers
Moving Supplies

Moving Supplies
Back to menu
Shop by IndustryAll 20 industries ›
Healthcare & Medical Material Handling Food Service & Food Processing Aerospace & Aviation Automotive Manufacturing & Industrial Data Centers Furniture & Fixtures Hospitality Institutional & Education Laundry & Linen Marine Horticulture & Gardens Retail Environment Robotics & Automation Air Cargo Defense & Military Oil, Gas & Energy Sanitation & Washdown Towline & Tugger
Shop by ApplicationAll applications ›
Specialty Casters Specialty Casters Gate Casters Gate Casters BBQ Pit & Smoker Casters BBQ Pit & Smoker Casters Keyed Drive Wheels Keyed Drive Wheels Drywall Cart Casters Drywall Cart Casters Skid Wheels & Casters for RVs Skid Wheels & Casters for RVs Leveling Casters Leveling Casters Shopping Cart Wheels & Casters Shopping Cart Wheels & Casters Band Equipment Casters & Wheels Band Equipment Casters & Wheels Low Profile Casters Low Profile Casters Cart Wheels & Casters Cart Wheels & Casters Toolbox Caster Sets Toolbox Caster Sets Bakery Oven Rack Casters Bakery Oven Rack Casters Kitchen Prep Table Caster Sets Kitchen Prep Table Caster Sets Wire Shelving Casters Wire Shelving Casters Silent Glide Casters Silent Glide Casters
Back to Brands
ALBION CASTERS

ALBION CASTERS
BLICKLE CASTERS

BLICKLE CASTERS
HAMILTON CASTERS

HAMILTON CASTERS
P&H CASTERS

P&H CASTERS
SHEPHERD CASTERS

SHEPHERD CASTERS
B&P MANUFACTURING

B&P MANUFACTURING
SAFE 'N SECURE

SAFE 'N SECURE
HUDSON BEARINGS

HUDSON BEARINGS
QUANTUM STORAGE

QUANTUM STORAGE
AMERICAN MOVING SUPPLIES

AMERICAN MOVING SUPPLIES
COLSON CASTERS

COLSON CASTERS
DURASTAR CASTERS

DURASTAR CASTERS
CORPS DESIGN

CORPS DESIGN
FAULTLESS MEDICAL CASTERS

FAULTLESS MEDICAL CASTERS

1/4" x 5/8" Threaded Stem Casters

Stem: 1/4-20 x 5/8 in threadedWheel 50 mm (2 in) twin nylonCapacity: 75 lb eachHeight: 2-1/2 in
Shepherd Pacer hooded twin wheel casters with a small threaded stem for chairs, store fixtures, electronics and light furniture. Nylon wheels roll easily on carpet and rugs. On hardwood or tile, use a mat, since hard nylon can mark soft floors over time. Choose with or without a side brake, in FB, SC or WA finish.
75 lbs
TieredPricing

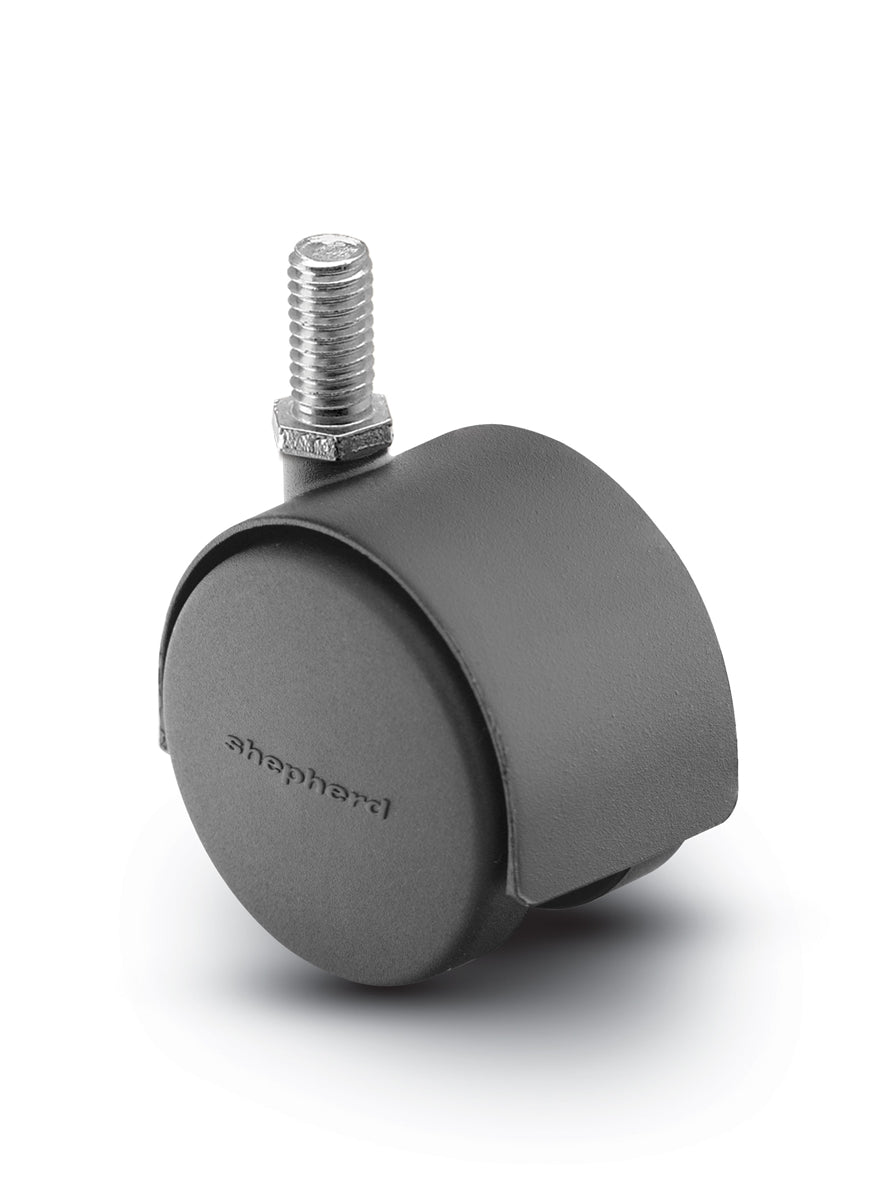

PPA50828FB - Pacer Hooded Stem Caster - 50mm Diameter - 1/4" x 5/8" Threaded Stem - 75 lbs Capacity - Nylon Wheels shepherd
Ships in 1-3 Business Days
Shepherd PPA50828FB 2" Dual Wheel Caster 1/4"-20 x 5/8" Stem – 75 lb
Part # PPA50828FB
from $30.00
Volume pricing available
NylonThreaded Stem
Load rating
75 lbs
Size2" x 1-11/16"
Capacity75 lbs
WheelNylon
MountStem 1/4"-20 x 5/8"
Type—
More Details Less Details
Width 1-11/16"
Height 2-1/2"
Temp Range -40°F to 250°F
Frame Zinc Plated Steel
PPA50828FB - Pacer Hooded Stem Caster - 50mm Diameter - 1/4"-20 x 5/8" Threaded...
Shop Product
75 lbs
TieredPricing

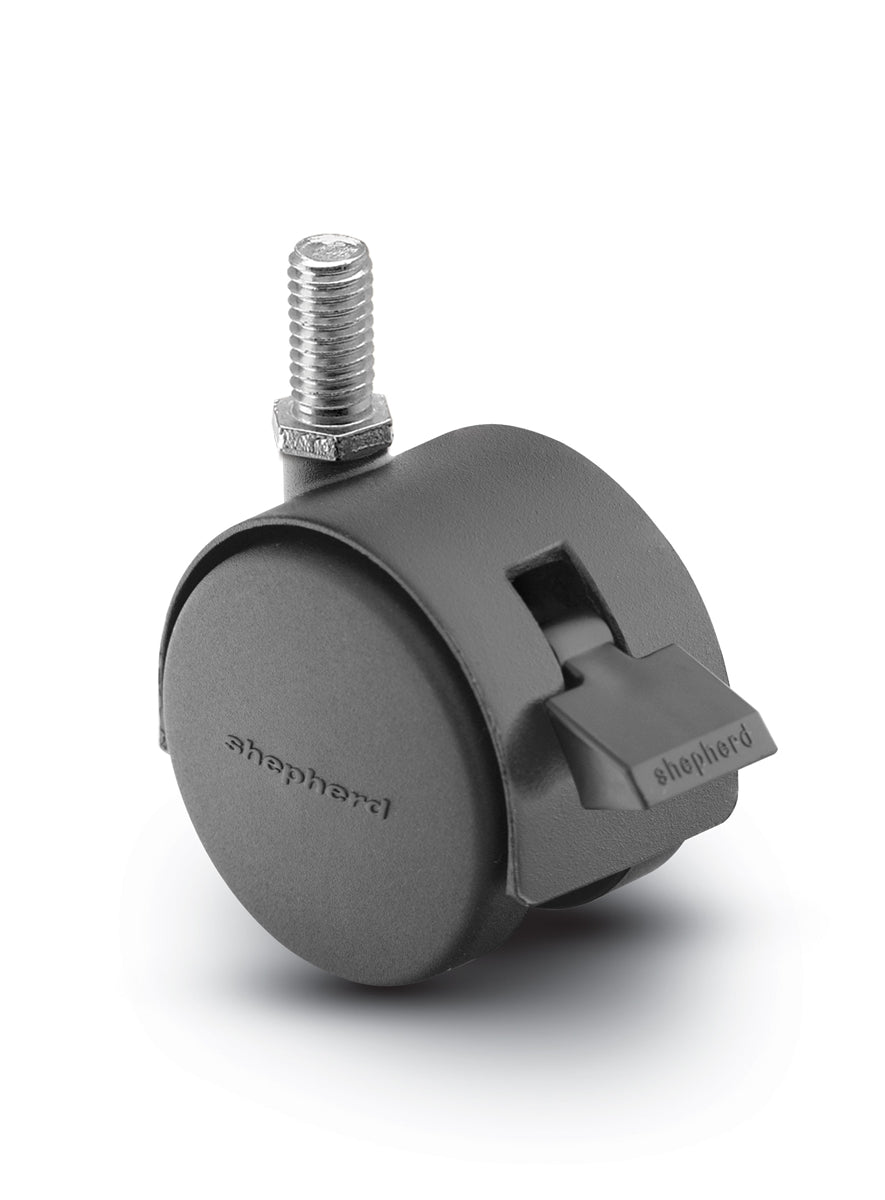

PPA50828FB-B - Locking Pacer Hooded Stem Caster - 50mm Diameter - 1/4" x 5/8" Threaded Stem - 75 lbs Capacity - Nylon Wheels shepherd
Ships in 1-3 Business Days
Shepherd PPA50828FB-B 50mm Nylon Swivel Caster with Brake – 75 lb
Part # PPA50828FB-B
$32.00
Volume pricing available
NylonThreaded Stem
Load rating
75 lbs
Size2" x 1-11/16"
Capacity75 lbs
WheelNylon
MountStem 1/4" x 5/8"
TypeSide Lock Brake
More Details Less Details
Width 1-11/16"
Height 2-1/2"
Temp Range -40°F to 250°F
Brake Side Lock Brake
Frame Zinc Plated Steel
PPA50828FB-B - Pacer Hooded Stem Caster - 50mm Diameter - 1/4" x 5/8" Grip...
Shop Product
75 lbs
TieredPricing

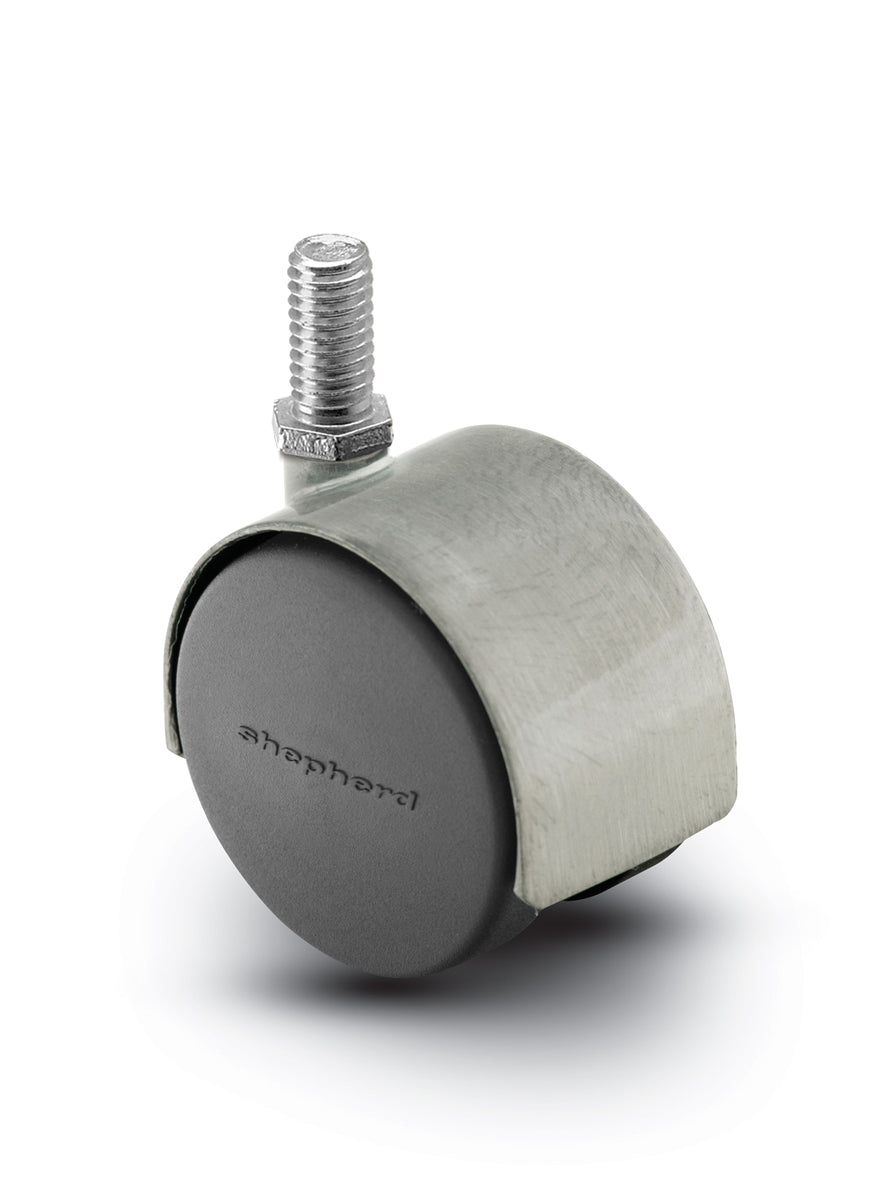

PPA50828SC - Pacer Hooded Stem Caster - 50mm Diameter - 1/4" x 5/8" Threaded Stem - 75 lbs Capacity - Nylon Wheels shepherd
Ships in 1-3 Business Days
Shepherd PPA50828SC 50mm Dual Wheel Caster 1/4" x 5/8" Stem – 75 lb
Part # PPA50828SC
from $30.00
Volume pricing available
NylonThreaded Stem
Load rating
75 lbs
Size2" x 1-11/16"
Capacity75 lbs
WheelNylon
MountThreaded Stem
Type—
More Details Less Details
Width 1-11/16"
Height 2-1/2"
Temp Range -40°F to 250°F
Frame Zinc Plated Steel
PPA50828SC - Pacer Hooded Stem Caster - 50mm Diameter - 5/16" x 1" Threaded...
Shop Product
75 lbs
TieredPricing

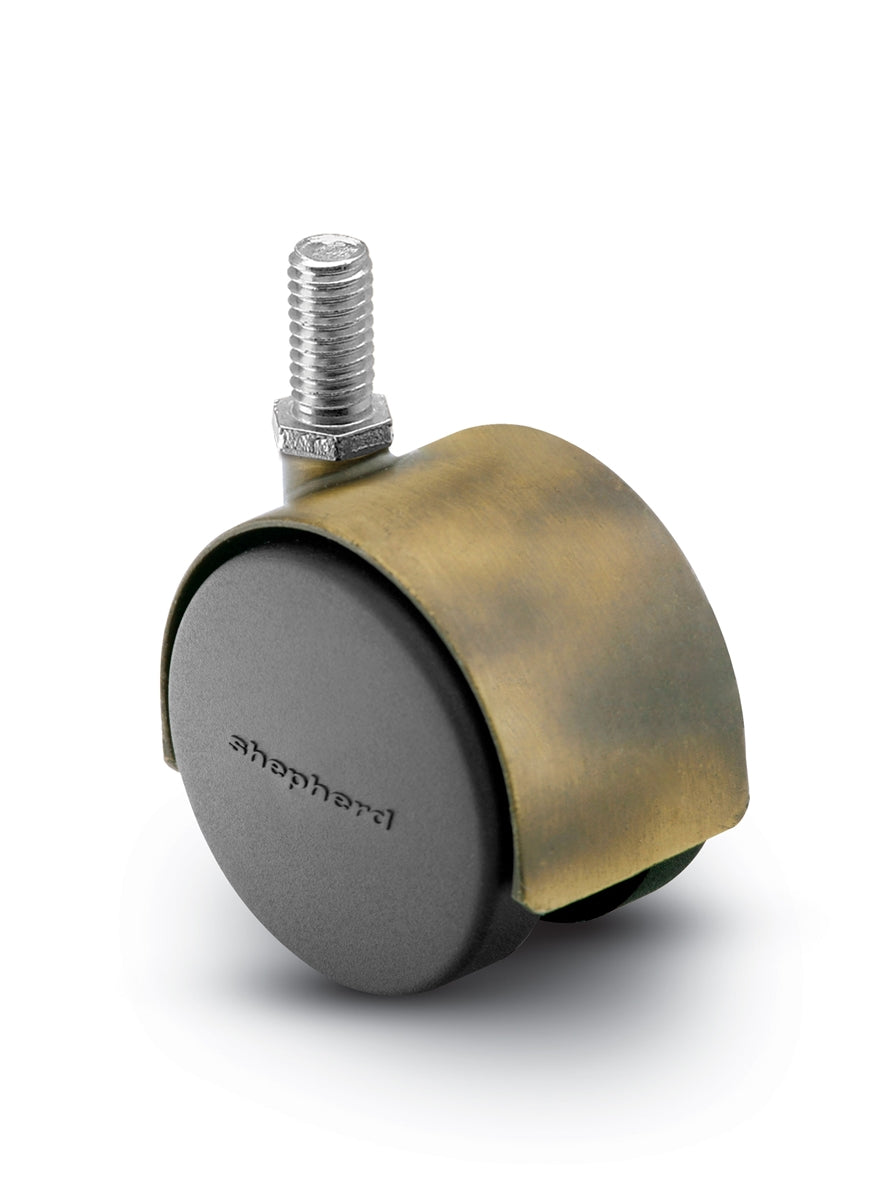

PPA50828WA - Pacer Hooded Stem Caster - 50mm Diameter - 1/4" x 5/8" Threaded Stem - 75 lbs Capacity - Nylon Wheels shepherd
Ships in 1-3 Business Days
Shepherd PPA50828WA 50mm Dual Wheel Caster 1/4" x 5/8" Stem – 75 lb
Part # PPA50828WA
from $30.00
Volume pricing available
NylonThreaded Stem
Load rating
75 lbs
Size2" x 1-11/16"
Capacity75 lbs
WheelNylon
MountThreaded Stem
Type—
More Details Less Details
Width 1-11/16"
Height 2-1/2"
Temp Range -40°F to 250°F
Frame Zinc Plated Steel
PPA50507WA Pacer Hooded Stem Caster - 50mm Diameter - 1/4" x 5/8" Threaded StemThis...
Shop Product
75 lbs
TieredPricing

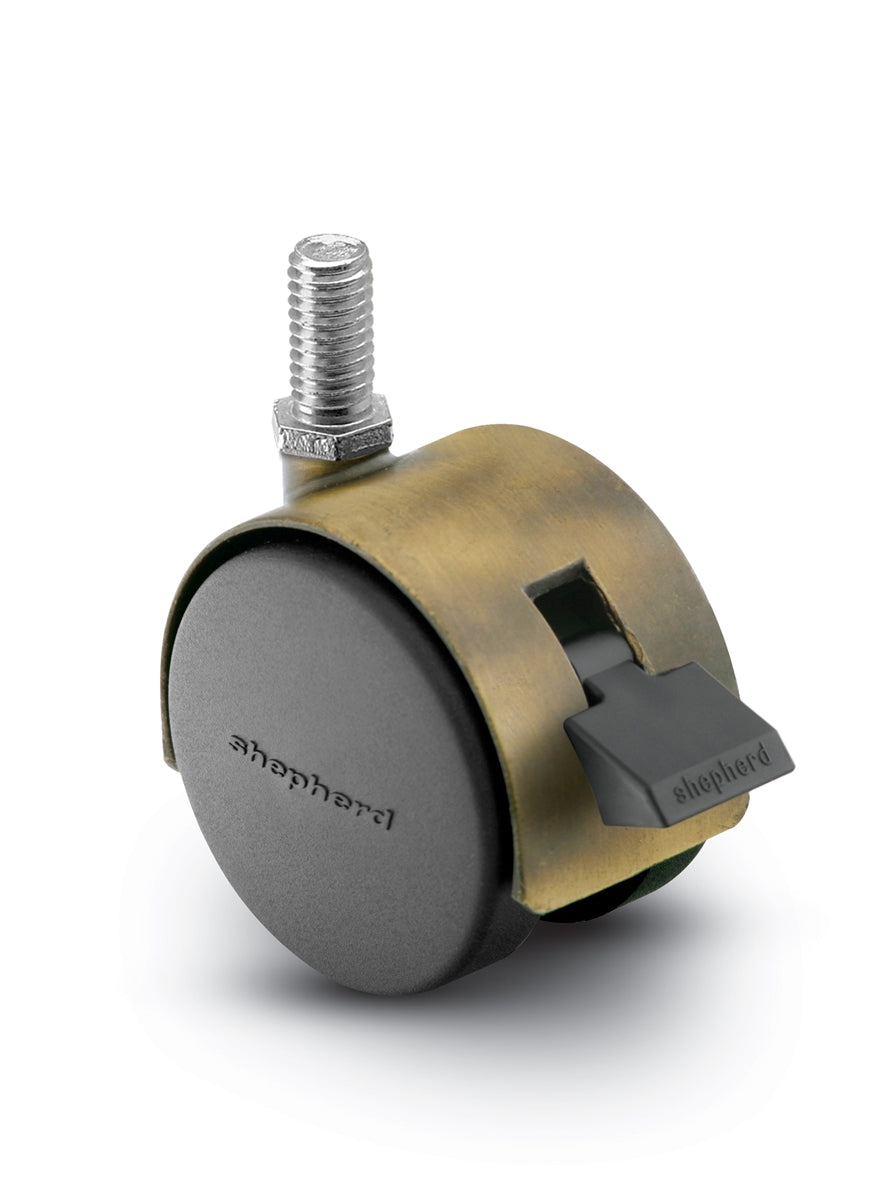

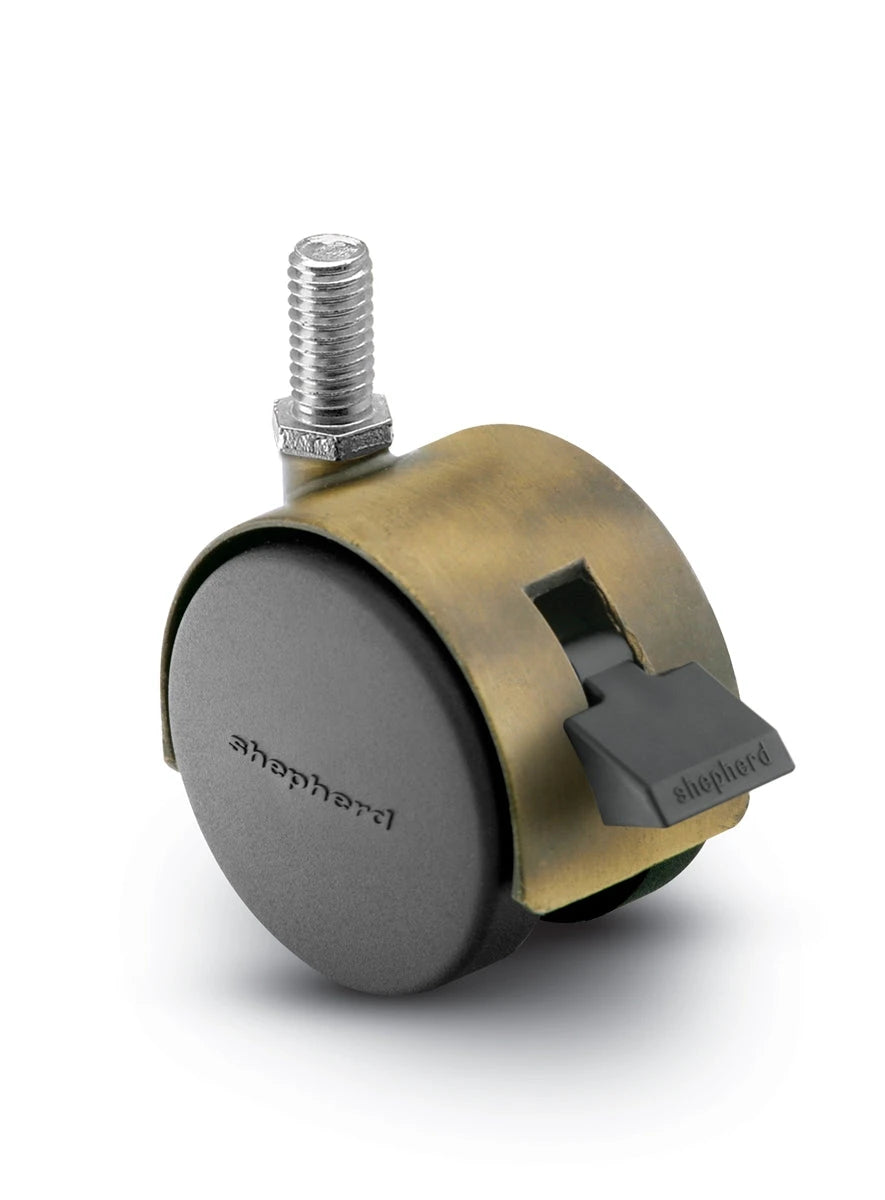

PPA50828WA-B - Pacer Hooded Caster w/Brake - 50mm Diameter - 1/4" x 5/8" Threaded Stem - 75 lbs Capacity - Nylon Wheels shepherd
Ships in 1-3 Business Days
Shepherd PPA50828WA-B 50mm Dual Wheel Caster with Brake – 75 lb
Part # PPA50828WA-B
$32.00
Volume pricing available
NylonThreaded Stem
Load rating
75 lbs
Size2" x 1-11/16"
Capacity75 lbs
WheelNylon
MountThreaded Stem
TypeSide Lock Brake
More Details Less Details
Width 1-11/16"
Height 2-1/2"
Temp Range -40°F to 250°F
Brake Side Lock Brake
Frame Zinc Plated Steel
PPA50828WA-B Pacer Hooded Chair Caster - 50mm Diameter - 1/4" x 5/8" Threaded StemThis...
Shop Product

Measuring the stem

A 1/4-20 stem is 1/4 in in diameter with 20 threads per inch. These stems are 5/8 in long. Thread the old caster out and check both numbers; a 5/16 or 3/8 in stem will not fit, and a longer stem may bottom out in a shallow insert [S1].

Part Brake Rating Height
PPA50828FB, PPA50828SC, PPA50828WA None 75 lb 2-1/2 in
PPA50828FB-B, PPA50828WA-B Side brake 75 lb 2-1/2 in

From product fields [S1]. FB is flat black.

Floor fit

The twin nylon wheels share the load and swivel easily, which makes them a good match for carpet. Shepherd's own listing warns that the hard nylon can leave marks on hardwood or tile without a chair mat [S1].

Grip ring stems: carpet chair casters.

1/4-20 stem caster questions

What does 1/4-20 x 5/8 mean?

A 1/4 in diameter stem with 20 threads per inch, 5/8 in long.

How much weight do these casters hold?

75 lb each.

Can I use them on hardwood?

Use a mat. The hard nylon wheels can mark hardwood or tile over time.
