P&H 10 Series Casters · Up to 150 lb

Diameter: 1.97 to 4 inTread: 13/16, 1 and 1-1/4 inStem: 27/32 in (most)Capacity: 150 to 300 lb per caster

P&H 10 series casters with polyolefin, TPR and rubber wheels. Polyolefin is the most common tread on these P&H 10 series casters, rated 150 to 300 lb per caster in 3 and 4 in. Also listed: TPR 150 lb and rubber 150 lb. Brands: P&H.

P&H 10 series casters by tread

Tread	Core	Wheel sizes	Rated per caster	Listed temperature	Where it fits

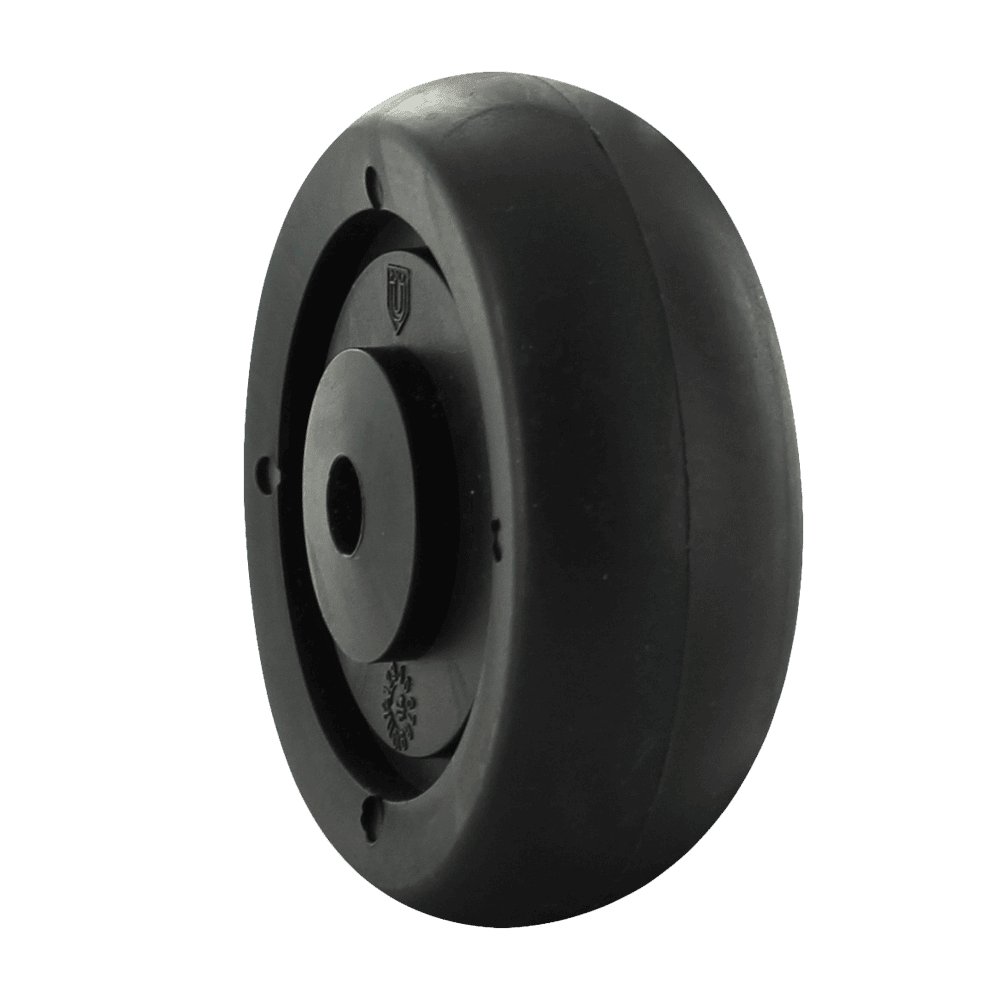

Polyolefin		3 and 4 in	150 to 300 lb	-20°F to 140°F	wet and chemical areas, light to medium loads

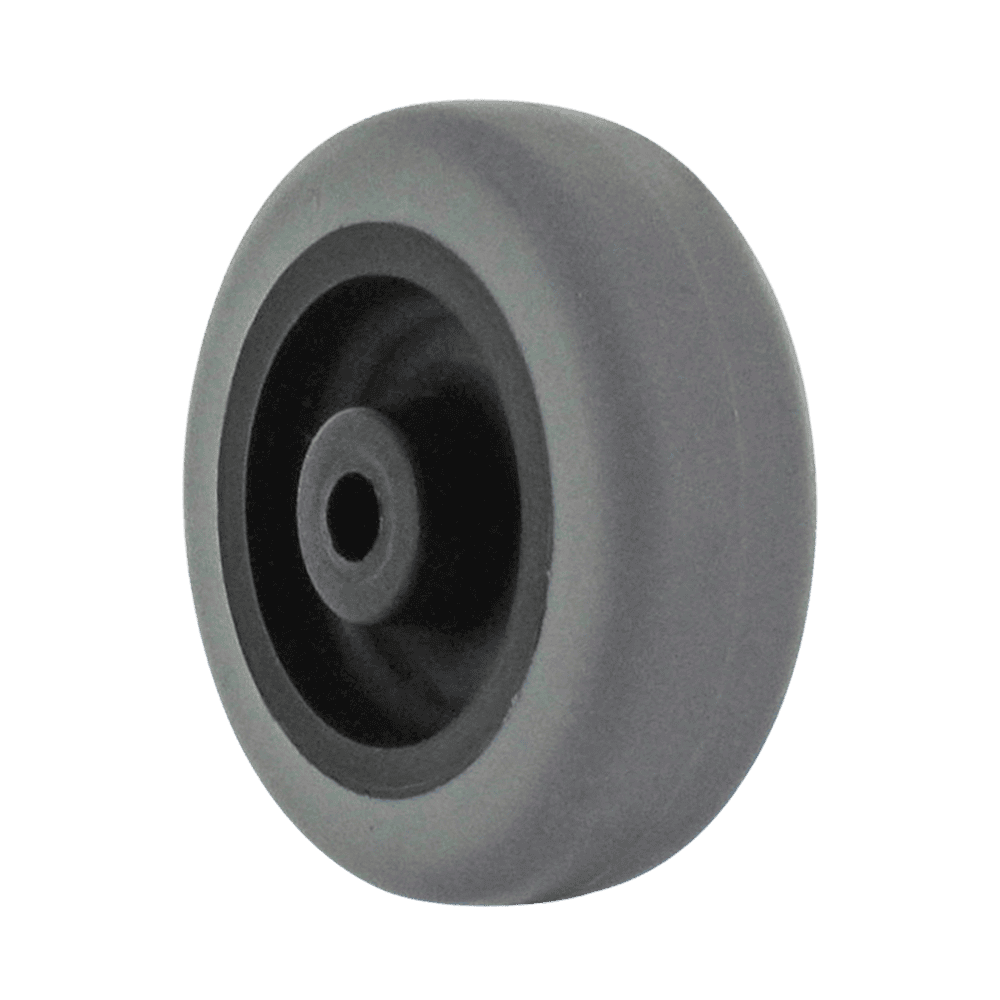

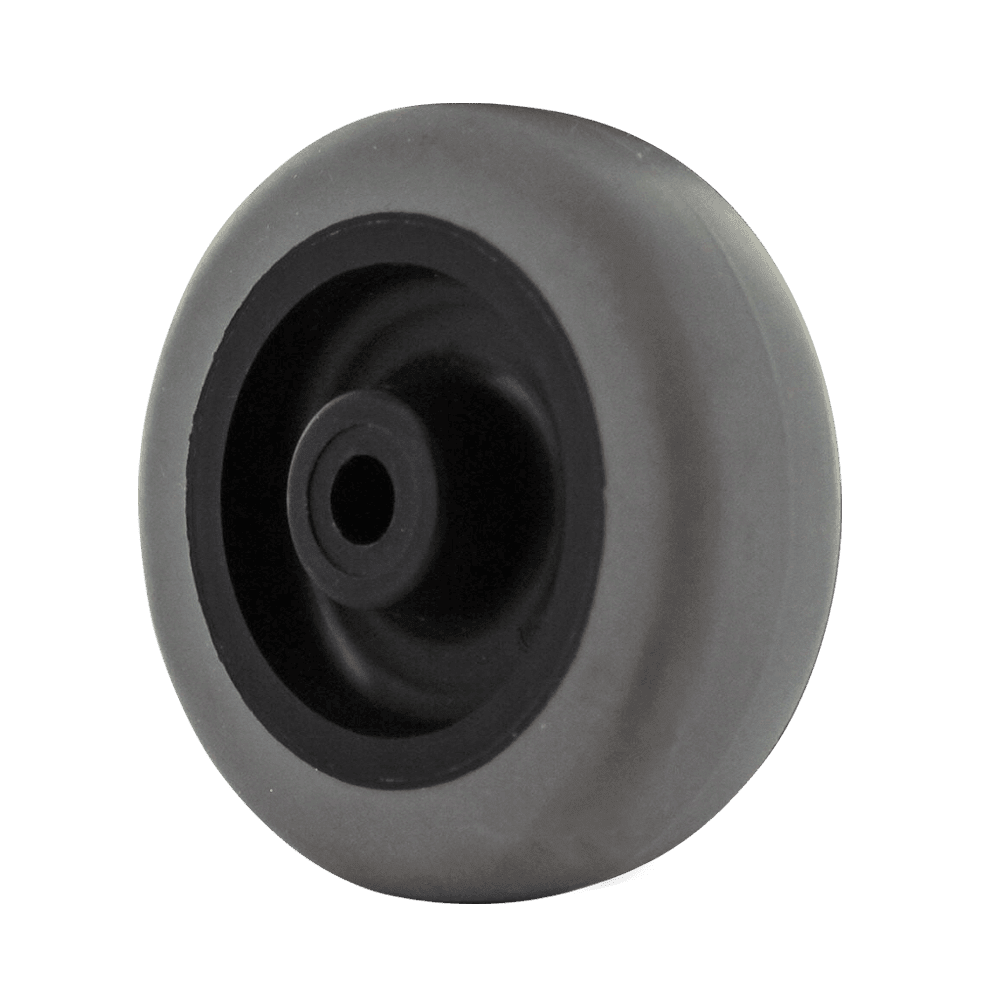

TPR	Polyolefin	1.97, 2, 2-1/2 and 3 in	150 lb	-20°F to 140°F	non-marking, quiet on finished floors
Rubber	Polyolefin	2 and 3 in	150 lb	-20°F to 140°F	cushioned and quiet on finished floors

Ratings are for single casters of P&H 10 series casters, from product fields [S1].

Wheel sizes

Wheel	Treads	Rated
1.97 x 0.94 in	TPR	150 lb
2 x 13/16 in	rubber and TPR	150 lb
2-1/2 x 13/16 in	TPR	150 lb

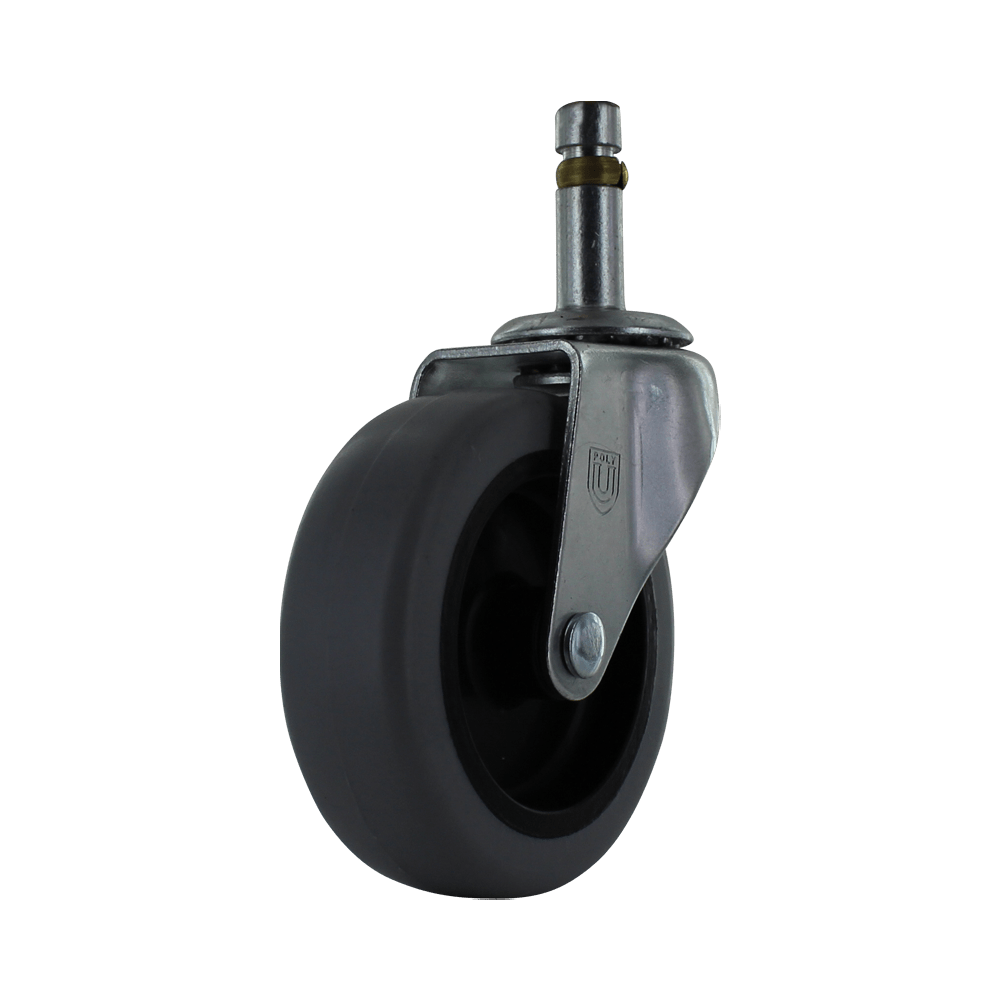

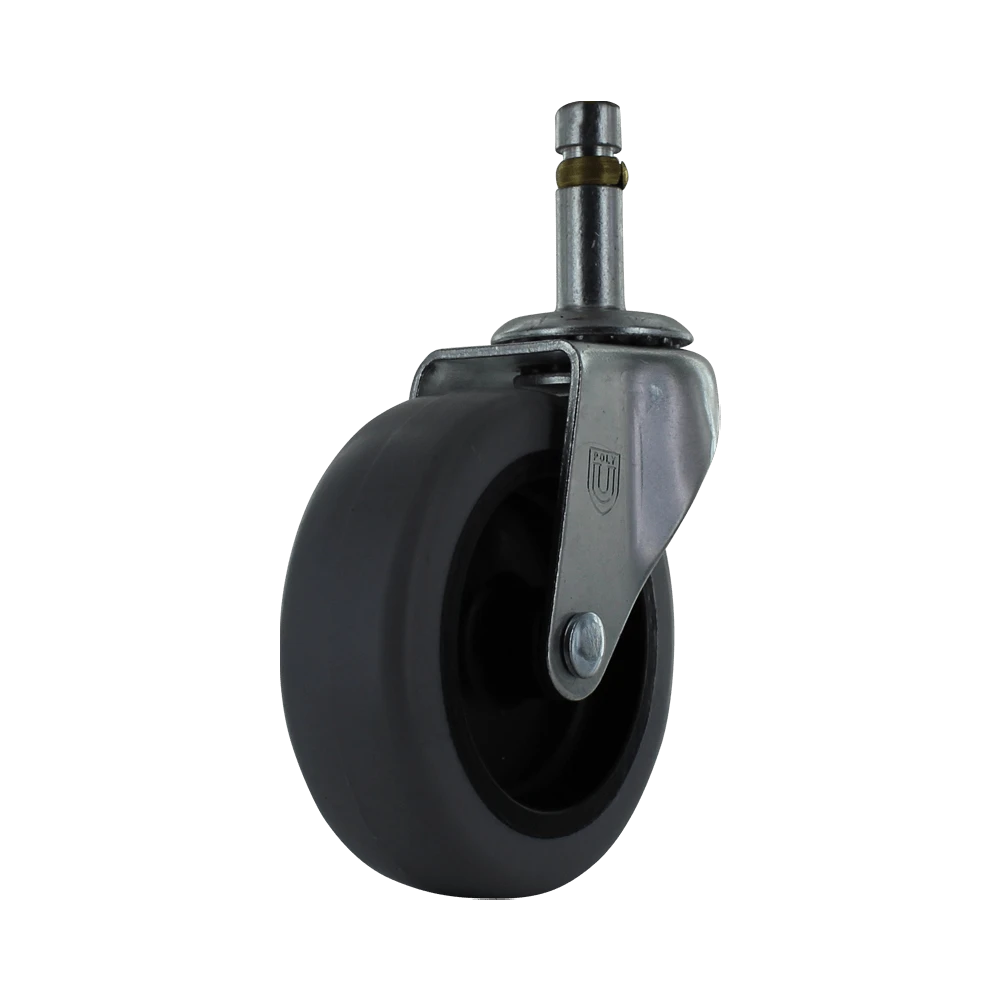

3 x 1 in	polyolefin, TPR and rubber	150 lb
4 x 1 in	polyolefin	200 lb
4 x 1-1/4 in	polyolefin	300 lb

Choosing P&H 10 series casters

Load: divide the loaded weight by three for a four-caster cart [S2]. Among P&H 10 series casters, a 150 lb caster then suits about 450 lb, and the strongest at 300 lb about 900 lb.

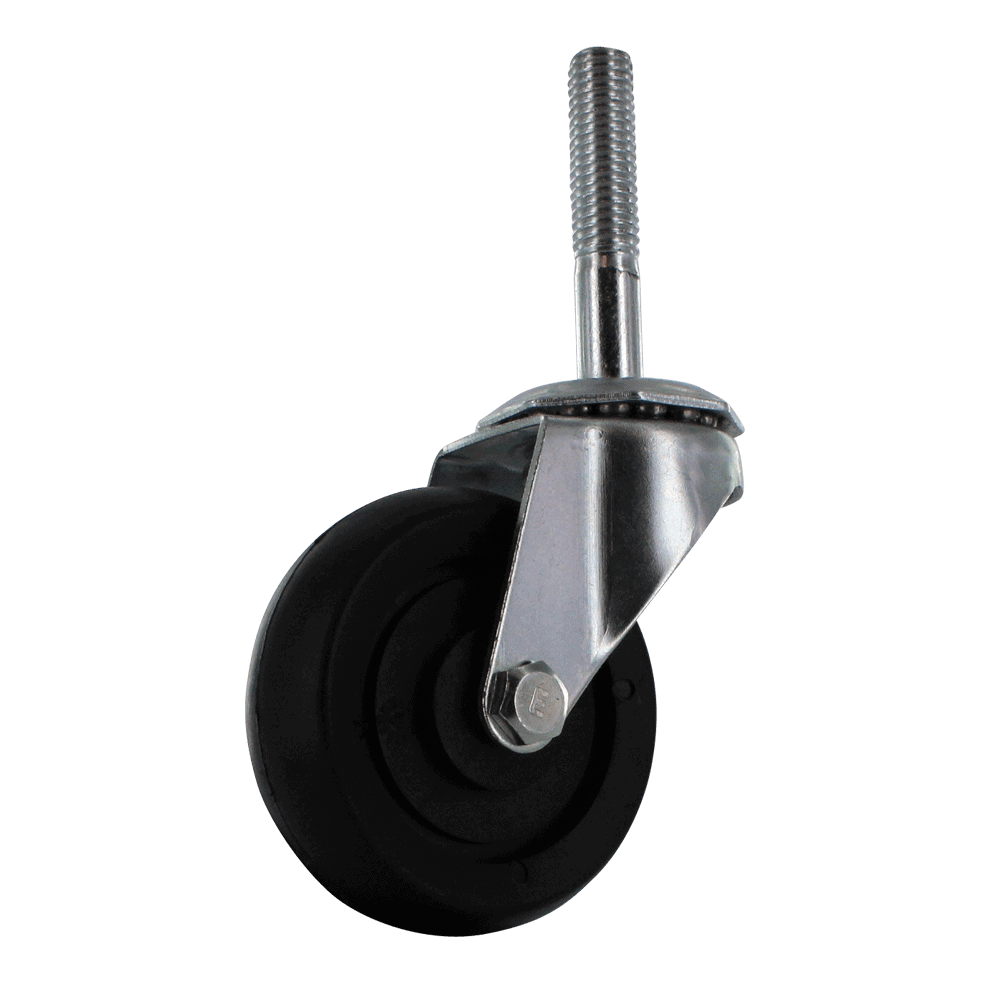

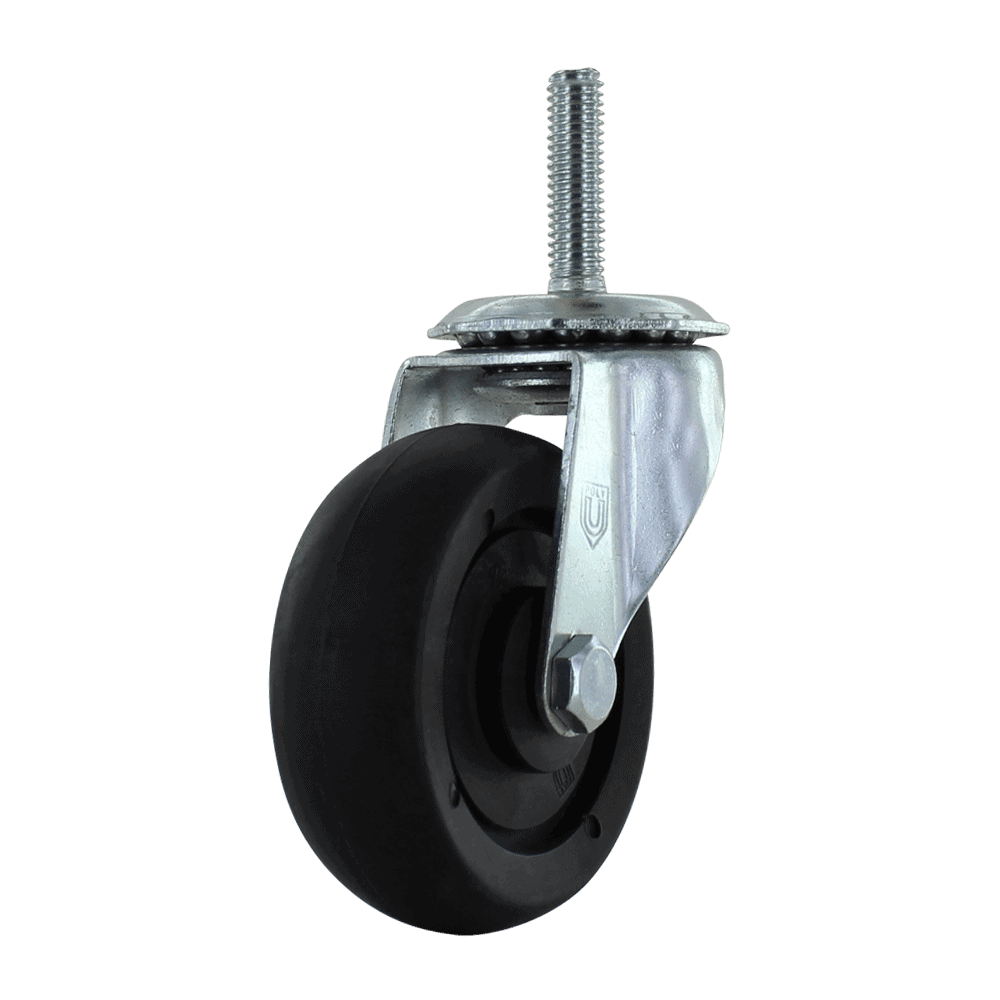

Stem: the most common stem on P&H 10 series casters is 27/32 in; 18mm in and 1/2-13 x 2-1/2 in also appear; check the old stem with calipers before ordering.
Floor: on P&H 10 series casters, TPR and rubber are kinder to tile and finished floors; polyolefin rolls easier under heavy loads on smooth concrete.

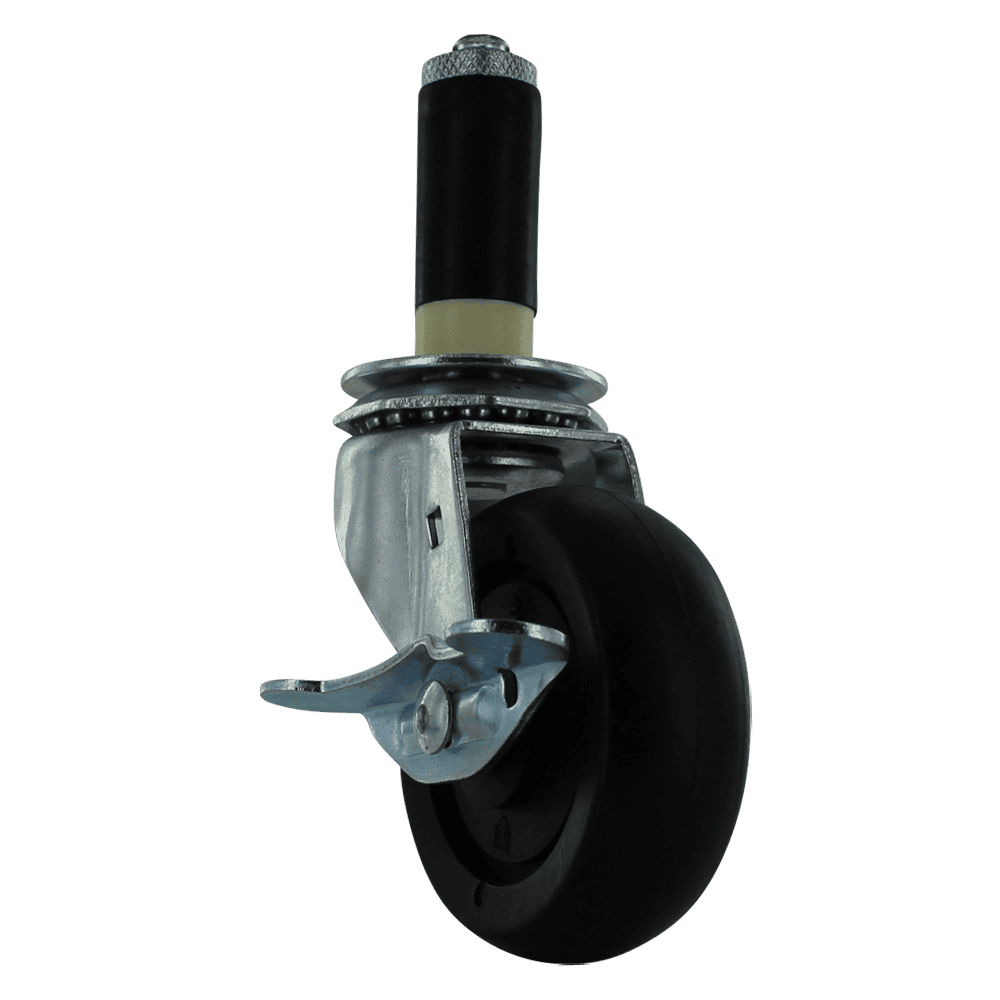

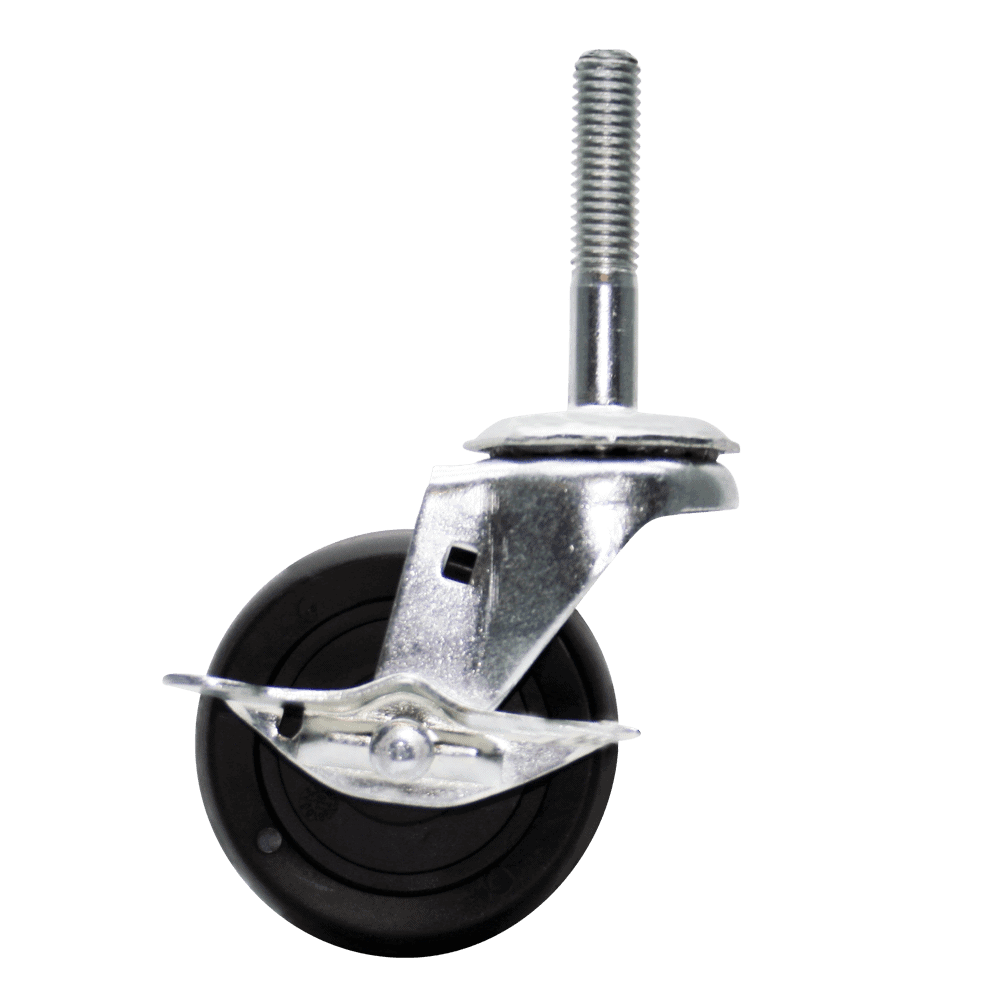

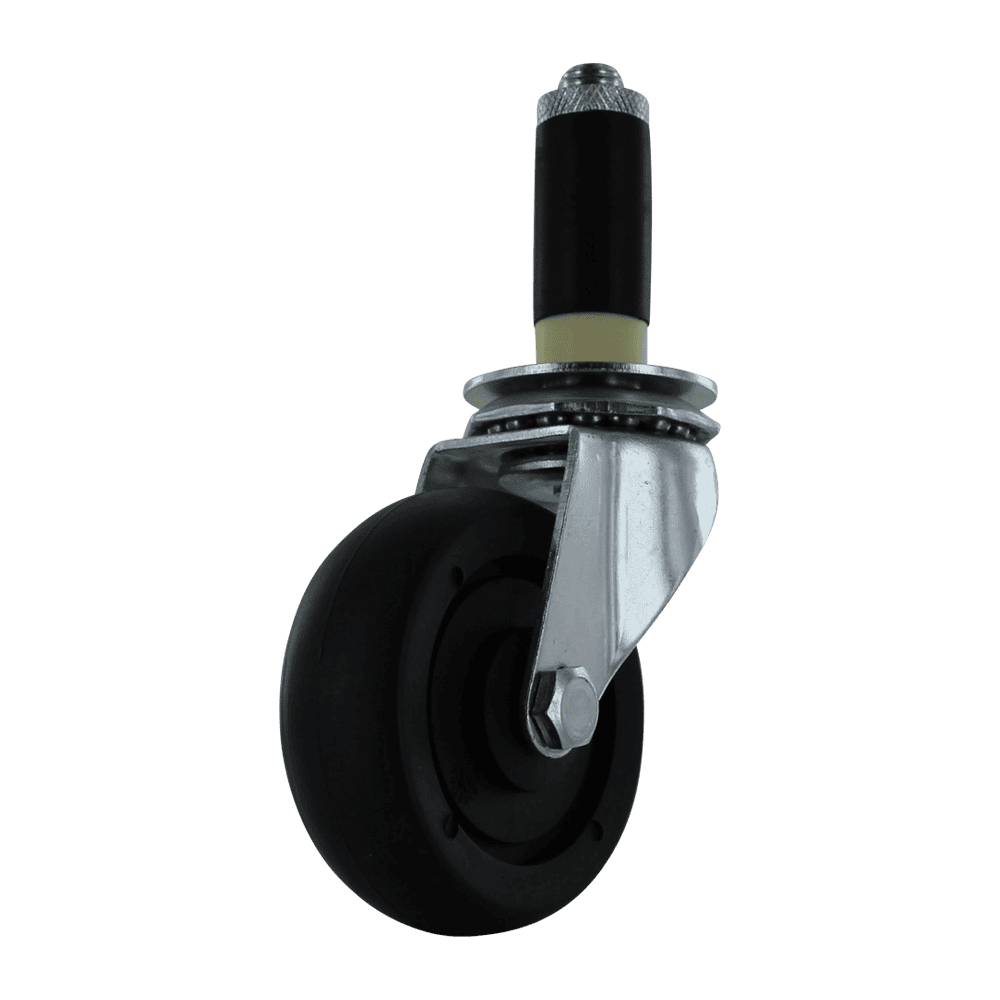

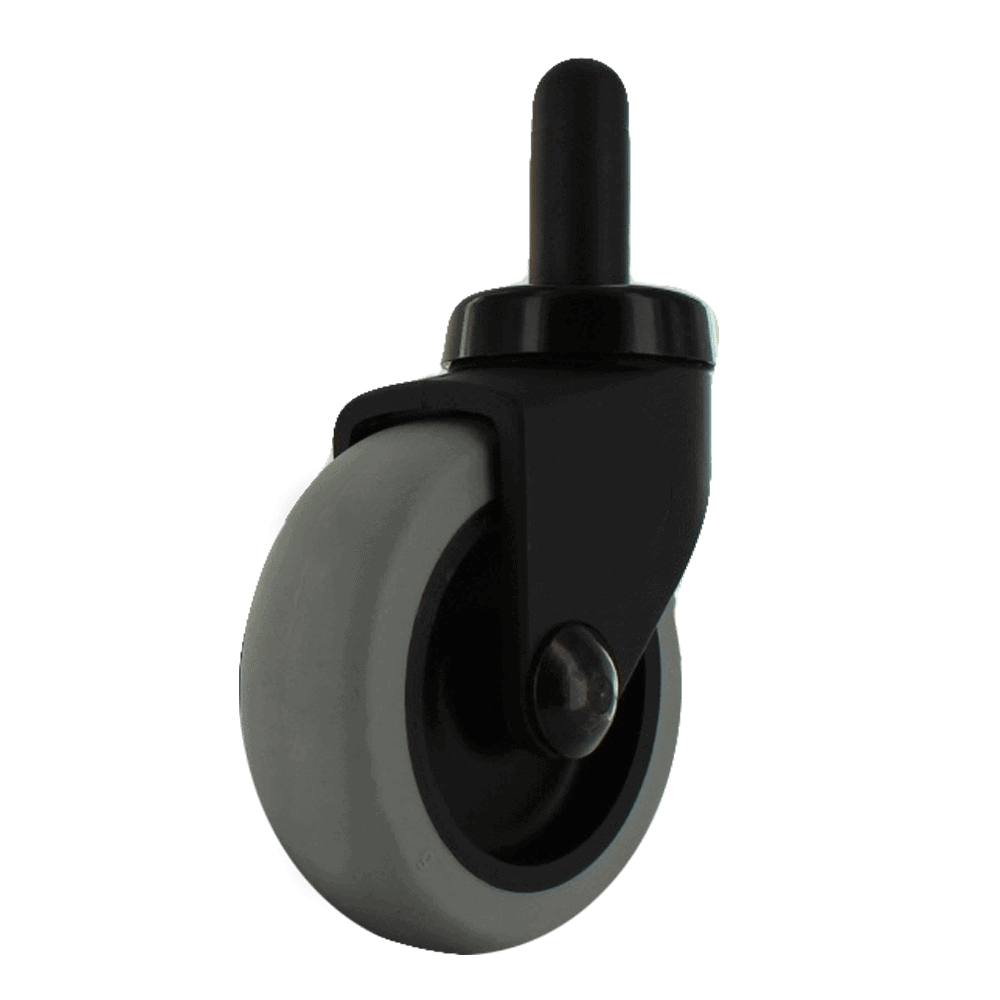

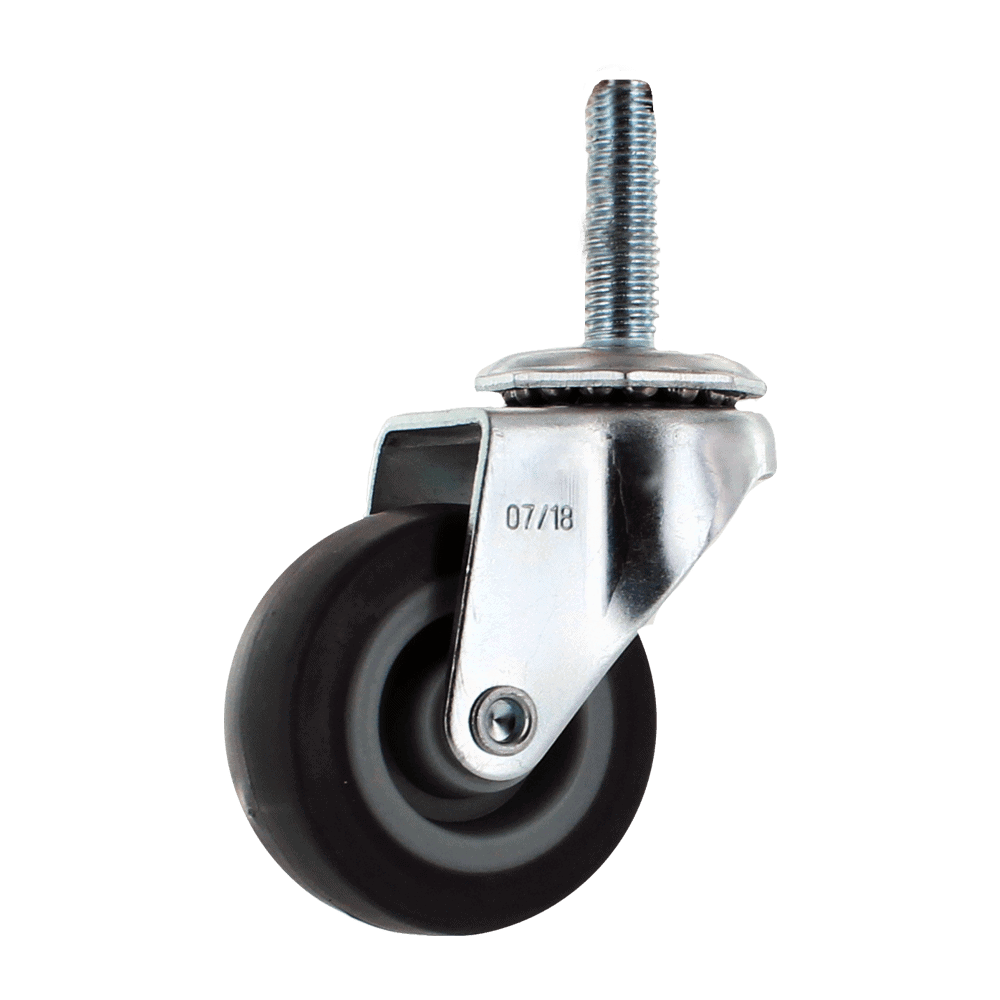

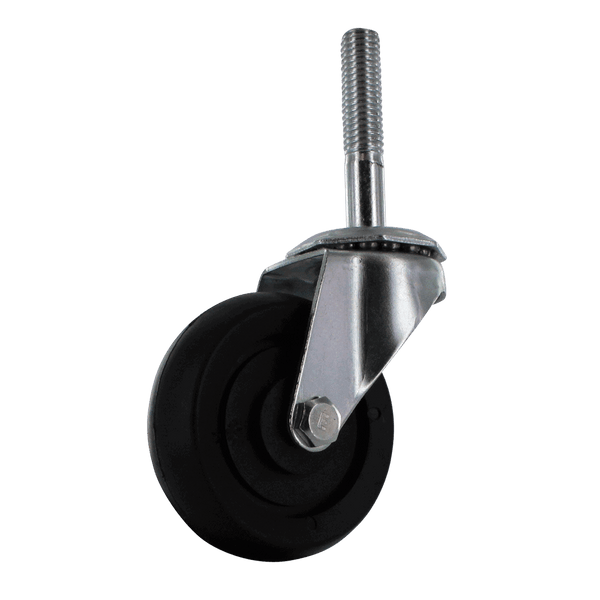

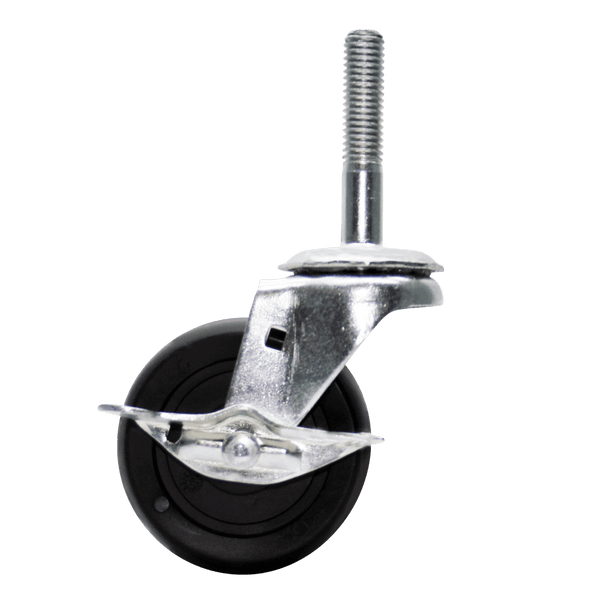

Rig: swivel P&H 10 series casters are listed, with side lock brake options.

P&H 10 series casters questions

How much weight can P&H 10 series casters carry?

Single P&H 10 series casters are rated 150 to 300 lb.

What stem do P&H 10 series casters use?

Most P&H 10 series casters list 27/32 in. Others: 18mm in and 1/2-13 x 2-1/2 in.

What wheel material is most common on P&H 10 series casters?

Polyolefin leads on P&H 10 series casters, rated 150 to 300 lb per caster. Among P&H 10 series casters, tpr is next at 150 lb.

Jordan Wilson, CasterHQ · reviewed October 20, 2026 · 844-439-4335 · info@casterhq.com

Sources

[S1] CasterHQ product fields (rated load, diameter, width, wheel and core material, temperature range, mount) and product descriptions for the items on this page, pulled October 20, 2026.
[S2] Preferred Equipment casters and wheels quick guide PDF (prefeq.com): load sizing on one less caster, wheel types and floor notes.
