The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

10" x 4" Forged Steel Casters

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Diameter: 10 inTread: 3 to 4 inCapacity: 6,000 to 18,000 lb per casterPlate sizes: 8-1/2 x 8-1/2

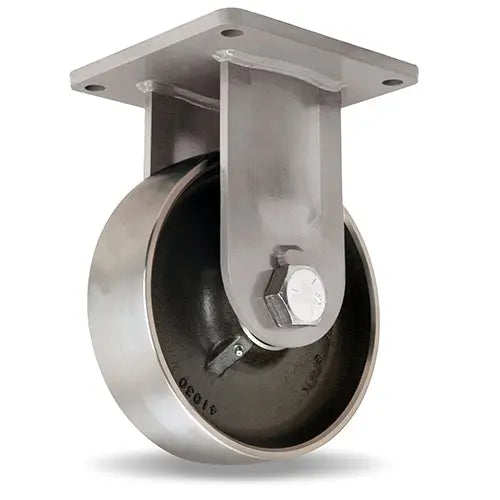

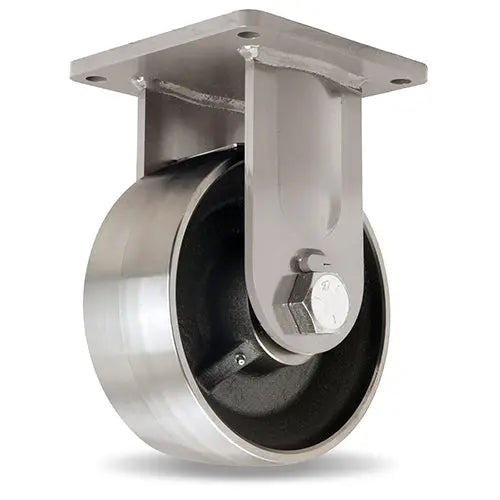

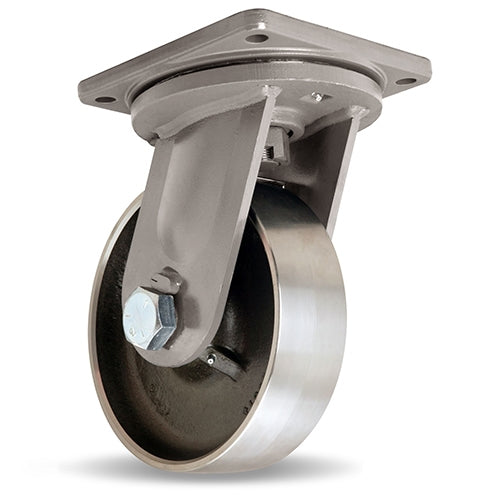

You get four forged steel casters here from Hamilton with 10 in wheels, rated 6,000 to 18,000 lb each. Every one uses a 8-1/2 x 8-1/2 in top plate, in both swivel and rigid and without brakes. Picks range from a Hamilton R-MD-103FST 10 x 3 in forged steel rigid caster rated 6,000 lb to a Hamilton S-MD-104FST 10 x 4 in forged steel swivel caster rated 18,000 lb. Listed temperature ratings are mostly -40°F to 320°F.
