10" x 3" Casters

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Diameter: 10 inTread: 2-1/2 and 3 inPlate: 6-1/8 x 7-1/2 in (most)Capacity: 2,500 to 2,600 lb per caster

This page lists 10 in cast iron casters. Cast iron is the most common tread here, rated 2,500 to 2,600 lb per caster. Brands: Hamilton.

2600 lbs

TieredPricing

Hamilton Extra Heavy Duty Swivel Caster with 10" x 3" Metal Wheel with 1" Straight Roller Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton S-EHD-13MH 10" x 3" Metal Swivel Caster – 2600 lb

Part # S-EHD-13MH

from $467.00

Volume pricing available

Cast IronPlate

Load rating

2600 lbs

Size10" x 3"

Capacity2600 lbs

WheelCast Iron

MountPlate 6-1/8" x 7-1/2"

TypeSwivel

More Details Less Details

Width 3"

Height 12-1/2"

Bolt Pattern 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -40°F to 320°F

Rig Type Swivel

Brake No Brake

Frame Crimson Powder

Hamilton Extra Heavy Duty Swivel Caster with 10" x 3" Metal Wheel with 1"...

Shop Product

2500 lbs

TieredPricing

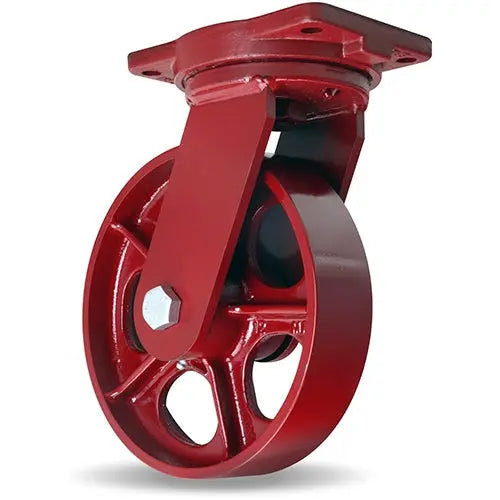

Hamilton Extra Heavy Duty Swivel Caster with 10" x 2 1/2" Metal Wheel with 1" Straight Roller Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton S-EHD-10MH 10" x 2 1/2" Metal Swivel Caster – 2500 lb

Part # S-EHD-10MH

from $527.00

Volume pricing available

Cast IronPlate

Load rating

2500 lbs

Size10" x 2-1/2"

Capacity2500 lbs

WheelCast Iron

MountPlate 6-1/8" x 7-1/2"

TypeSwivel

More Details Less Details

Width 2-1/2"

Height 12-1/2"

Bolt Pattern 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -40°F to 320°F

Rig Type Swivel

Brake No Brake

Frame Crimson Powder

Hamilton Extra Heavy Duty Swivel Caster with 10" x 2 1/2" Metal Wheel with...

Shop Product

2600 lbs

TieredPricing

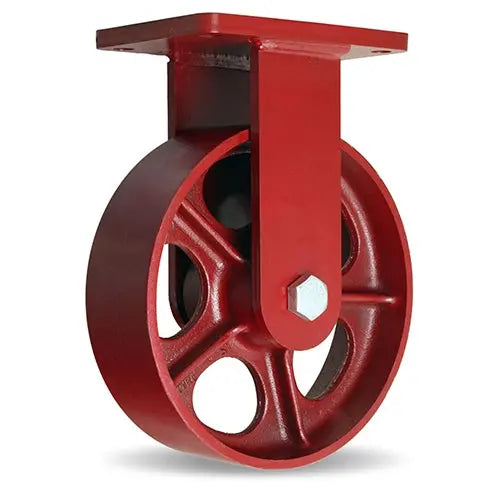

Hamilton Extra Heavy Duty Rigid Caster with 10" x 3" Metal Wheel with 1" Straight Roller Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton R-EHD-13MH 10" x 3" Metal Rigid Caster – 2600 lb

Part # R-EHD-13MH

$261.00

Volume pricing available

Cast IronPlate

Load rating

2600 lbs

Size10" x 3"

Capacity2600 lbs

WheelCast Iron

MountPlate 5-1/2" x 7-1/2"

TypeRigid

More Details Less Details

Width 3"

Height 12-1/2"

Bolt Pattern 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -40°F to 320°F

Rig Type Rigid

Brake No Brake

Frame Crimson Powder

Hamilton Extra Heavy Duty Rigid Caster with 10" x 3" Metal Wheel with 1"...

Shop Product

2500 lbs

TieredPricing

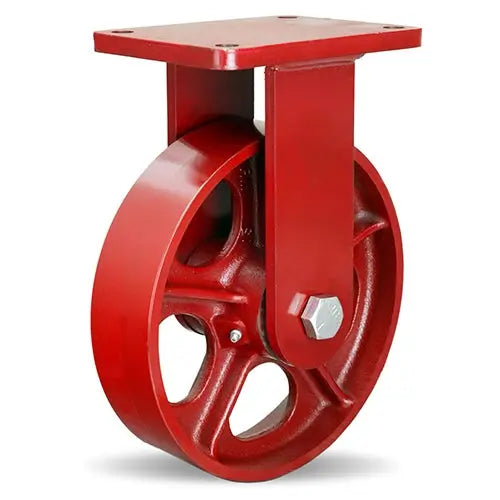

Hamilton Extra Heavy Duty Rigid Caster with 10" x 2 1/2" Metal Wheel with 1" Straight Roller Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton R-EHD-10MH 10" x 2 1/2" Metal Rigid Caster – 2500 lb

Part # R-EHD-10MH

$264.00

Volume pricing available

Cast IronPlate

Load rating

2500 lbs

Size10" x 2-1/2"

Capacity2500 lbs

WheelCast Iron

MountPlate 5-1/2" x 7-1/2"

TypeRigid

More Details Less Details

Width 2-1/2"

Height 12-1/2"

Bolt Pattern 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -40°F to 320°F

Rig Type Rigid

Brake No Brake

Frame Crimson Powder

Hamilton Extra Heavy Duty Rigid Caster with 10" x 2 1/2" Metal Wheel with...

Shop Product

10 in cast iron casters by tread

Tread	Core	Wheel sizes	Rated per caster	Listed temperature	Where it fits
Cast iron		10 in	2,500 to 2,600 lb	-40°F to 320°F	heat, chips and heavy loads on rough floors

Ratings are for single casters of 10 in cast iron casters, from product fields [S1].

Wheel sizes

Wheel	Treads	Rated
10 x 2-1/2 in	cast iron	2,500 lb
10 x 3 in	cast iron	2,600 lb

Choosing 10 in cast iron casters

Load: divide the loaded weight by three for a four-caster cart [S2]. A 2,600 lb caster from this page then suits about 7,800 lb, and the strongest at 2,600 lb about 7,800 lb.
Mount: most 10 in cast iron casters use a 6-1/8 x 7-1/2 in top plate; 5-1/2 x 7-1/2 in plates are listed too; measure bolt hole centers on the old plate and compare.
Floor: on 10 in cast iron casters, cast iron suits smooth concrete and heavy loads, but is loud and hard on tile and wood.
Rig: swivel and rigid 10 in cast iron casters are listed.
Heat: among 10 in cast iron casters, the highest listed range is -40°F to 320°F on cast iron; check the temperature field on each listing before oven or hot-room use.

10 in cast iron casters questions

How much weight can 10 in cast iron casters carry?

Single 10 in cast iron casters are rated 2,500 to 2,600 lb.

What top plate do 10 in cast iron casters use?

Most 10 in cast iron casters use 6-1/8 x 7-1/2 in. Others listed: 5-1/2 x 7-1/2 in.

What wheel material is most common on 10 in cast iron casters?

Cast iron leads on 10 in cast iron casters, rated 2,500 to 2,600 lb per caster.

Jordan Wilson, CasterHQ · reviewed October 20, 2026 · 844-439-4335 · info@casterhq.com

Sources

[S1] CasterHQ product fields (rated load, diameter, width, wheel and core material, temperature range, mount) and product descriptions for the items on this page, pulled October 20, 2026.
[S2] Preferred Equipment casters and wheels quick guide PDF (prefeq.com): load sizing on one less caster, wheel types and floor notes.
