12" x 3" Polyurethane Casters

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Diameter: 12 inTread: 3 inCapacity: 800 to 1,500 lb per casterPlate sizes: 5-1/4 x 7-1/4

This page lists four polyurethane casters with 12 in wheels, rated 800 to 1,500 lb each, made by Hamilton. Every one uses a 5-1/4 x 7-1/4 in top plate, and you can pick swivel or rigid, and none has a brake. Two examples are a Hamilton R-SPCH-12DB-1 12 x 3 in Duralast rigid spring loaded caster rated 800 lb and a Hamilton S-SPCH-12DB-2 12 x 3 in Duralast poly spring loaded swivel caster rated 1,500 lb.

1500 lbs

TieredPricing

S-SPCH-12DB-2 Hamilton Champion 12" Swivel Caster - Duralast Polyurethane Wheel with 3/4" Precision Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton S-SPCH-12DB-2 12" x 3" Duralast Poly Spring Loaded Swivel Caster

Part # S-SPCH-12DB-2

$1,204.00

Volume pricing available

PolyurethanePlate

Load rating

1500 lbs

Size12" x 3"

Capacity1500 lbs

WheelPolyurethane

MountPlate 5-1/4" x 7-1/4"

TypeSwivel

More Details Less Details

Width 3"

Height 16-1/4"

Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Swivel

Brake No Brake

Frame Platinum Powder

S-SPCH-12DB-2 Hamilton Spring Loaded Champion Swivel Caster 12" x 3" Duralast Polyurethane Wheel |...

Shop Product

800 lbs

TieredPricing

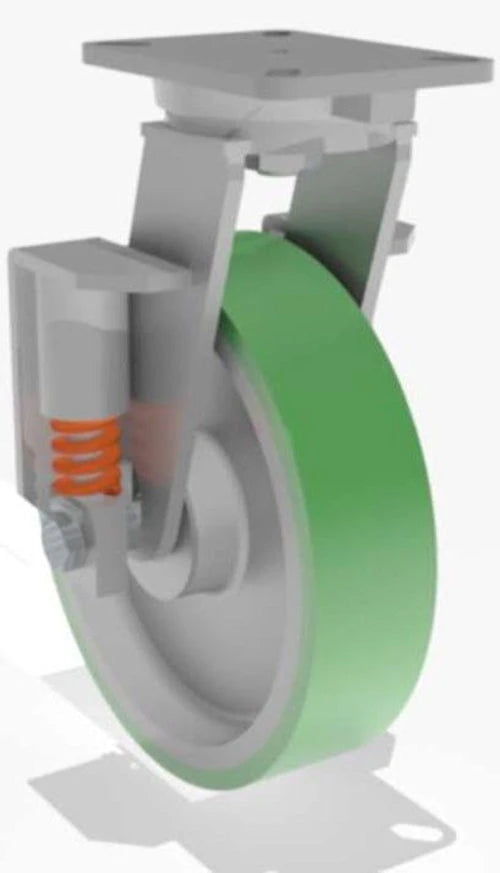

Hamilton S-SPCH-12DB-1 Spring Loaded Swivel Caster - 12"x3" Duralast Polyurethane on Cast Iron Wheel with 3/4" Precision Ball Bearings - Heavy-Duty Industrial Quality Hamilton

Made to Order · 4-6 Wk

Hamilton S-SPCH-12DB-1 12"x3" Duralast Poly Swivel Spring Loaded Caster – 800 lb

Part # S-SPCH-12DB-1

$1,290.00

Volume pricing available

PolyurethanePlate

Load rating

800 lbs

Size12" x 3"

Capacity800 lbs

WheelPolyurethane

MountPlate 5-1/4" x 7-1/4"

TypeSwivel

More Details Less Details

Width 3"

Height 16-1/4"

Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Swivel

Brake No Brake

Frame Platinum Powder

S-SPCH-12DB-1 Hamilton Spring Loaded Champion Swivel Caster Premium Quality | Robust Duralast Polyurethane Key...

Shop Product

1500 lbs

TieredPricing

R-SPCH-12DB-2 Hamilton Champion 12" Rigid Caster - Duralast Polyurethane Wheel with 3/4" Precision Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton R-SPCH-12DB-2 12" x 3" Duralast Rigid Spring Loaded Caster – 1500 lb

Part # R-SPCH-12DB-2

$1,041.00

Volume pricing available

PolyurethanePlate

Load rating

1500 lbs

Size12" x 3"

Capacity1500 lbs

WheelPolyurethane

MountPlate 5-1/4" x 7-1/4"

TypeRigid

More Details Less Details

Width 3"

Height 16-1/4"

Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Rigid

Brake No Brake

Frame Platinum Powder

R-SPCH-12DB-2 Hamilton Spring Loaded Champion Rigid Caster 12" x 3" Duralast Polyurethane Wheel |...

Shop Product

800 lbs

TieredPricing

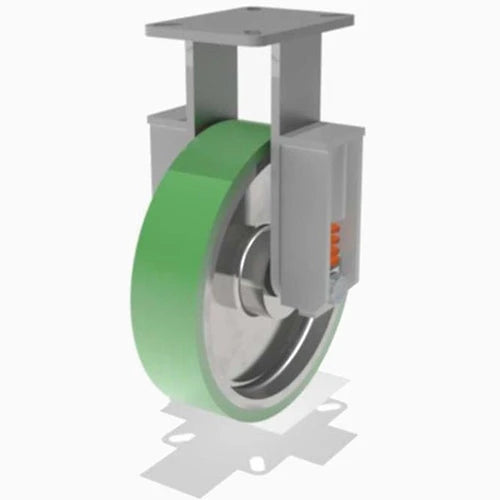

Hamilton R-SPCH-12DB-1 Spring Loaded Rigid Caster - 12"x3" Duralast Polyurethane on Cast Iron Wheel with 3/4" Precision Ball Bearings - Heavy-Duty Industrial Quality Hamilton

Made to Order · 4-6 Wk

Hamilton R-SPCH-12DB-1 12"x3" Duralast Rigid Spring Loaded Caster – 800 lb

Part # R-SPCH-12DB-1

$982.00

Volume pricing available

PolyurethanePlate

Load rating

800 lbs

Size12" x 3"

Capacity800 lbs

WheelPolyurethane

MountPlate 5-1/4" x 7-1/4"

TypeRigid

More Details Less Details

Width 3"

Height 16-1/4"

Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Rigid

Brake No Brake

Frame Platinum Powder

R-SPCH-12DB-1 Hamilton Spring Loaded Champion Rigid Caster Premium Quality | Robust Duralast Polyurethane Key...

Shop Product

Hamilton Spring Loaded | SPCH Casters with 12" Duralast Polyurethane Wheels

12" Premium Duralast Polyurethane Wheel | Spring Loaded for Optimal Shock Absorption

High-Quality Spring Loaded Casters from Hamilton

Discover the Hamilton SPCH Spring Loaded Casters with top-grade 12" Duralast Polyurethane Wheels. Perfectly designed for dynamic loads and challenging terrains, these casters promise unmatched durability and smooth maneuverability. Hamilton’s expertise in caster technology guarantees the resilience and longevity of this product, making it ideal for both industrial and commercial applications.

Experience Unparalleled Mobility with Hamilton's SPCH Casters

Why choose Hamilton's Spring Loaded Casters? Engineered for exceptional performance, the SPCH series ensures minimal maintenance and maximum operational efficiency. The 12" Duralast Polyurethane Wheels are known for their long-lasting resilience. With Hamilton, enjoy the best in caster technology for your business.

Need Assistance? Hamilton's Caster Experts Are Here To Help!

Contemplating the SPCH Spring Loaded Casters for your setup? Our team of dedicated Caster Specialists is ready to assist you. Get expert advice and solutions tailored to your needs. Contact us weekdays between 8 am - 5 pm.
