12" x 4" Polyurethane Casters

Plate sizes: 8-1/2 x 8-1/2Bolt holes: 7 x 7Diameter: 12 inTread: 3 inCapacity: up to 11,000 lb
Match a 8-1/2 x 8-1/2 top plate when bolting casters under tow-line carts and AGV fixtures. Typical builds show wheel diameters 12 in, polyurethane treads, and capacities 4,700 to 11,000 lb. When floors see chemicals or washdowns, prefer sealed bearings and non-absorbent wheel compounds. Larger plates spread bolt stress on thick frames under continuous tow abuse. Replace worn corners in matched sets when possible so the cart tracks straight under load.
9400 lbs
TieredPricing
Hamilton Maxi-Duty 12" Dual Swivel AGV Caster | 9400 lbs. Load Capacity | 12x3 DuraGlide-AGV Polyurethane Wheel (95A) | Forged Steel Center | 1-1/4" Sealed Precision Ball Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton 12" x 3" DuraGlide-AGV Dual Swivel Caster – 9400 lb
Part # S-MDD-AGV-12GB95
$2,528.00
Volume pricing available
PolyurethanePlate
Load rating
9400 lbs
Diameter 12"
Capacity 9400 lbs
Wheel Polyurethane
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 3"
Height 15.5"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty 12" Dual Swivel AGV Caster Top-tier Performance & Durability | Load Capacity:...
Shop Product
11000 lbs
TieredPricing
Hamilton 12" Maxi-Duty Dual Swivel Caster - 11,000 lbs Load Capacity - DuraGlide-AGV Polyurethane 95A on Forged Steel - 1-1/4" Sealed Ball Bearing - S-MDD-AGV-124GB95 Hamilton
Made to Order · 4-6 Wk
Hamilton S-MDD-AGV-124GB95 12" DuraGlide-AGV Dual Swivel Caster – 11000 lb
Part # S-MDD-AGV-124GB95
$2,944.00
Volume pricing available
PolyurethanePlate
Load rating
11000 lbs
Diameter 12"
Capacity 11000 lbs
Wheel Polyurethane
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Height 15.5"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton 12" Maxi-Duty Dual Swivel Caster - Product Code: S-MDD-AGV-124GB95 11,000 lbs Load Capacity...
Shop Product
5500 lbs
TieredPricing
Hamilton 12" Swivel Caster for AGV - 5500 lbs Load Capacity - Maxi-Duty with DuraGlide-AGV Polyurethane (95A) on Forged Steel - 1-1/4" Sealed Precision Ball Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton 12" x 4" DuraGlide-AGV Swivel Caster – 5500 lb
Part # S-MD-AGV-124GB95
$1,620.00
Volume pricing available
PolyurethanePlate
Load rating
5500 lbs
Capacity 5500 lbs
Wheel Polyurethane
Mount Plate
More Details Less Details
Height 15.5"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton 12" Swivel Caster for AGV - 5500 lbs Load Capacity Maxi-Duty Performance |...
Shop Product
4700 lbs
TieredPricing
Hamilton 12" DuraGlide-AGV Polyurethane Swivel Caster - 4700 lbs Load Capacity, 95A Hardness, Forged Steel Center, 1" Sealed Precision Ball Bearing - Enhanced Precision Duty for AGV Hamilton
Made to Order · 4-6 Wk
Hamilton 12" x 3" DuraGlide-AGV Swivel Caster – 4700 lb
Part # S-EPSD-AGV-12GB95
$1,278.00
Volume pricing available
Polyurethane
Load rating
4700 lbs
Capacity 4700 lbs
Wheel Polyurethane
More Details Less Details
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton 12" DuraGlide-AGV Polyurethane Swivel Caster Premium Quality & Durability | 4700 lbs Load...
Shop Product
5500 lbs
TieredPricing
Hamilton 12" DuraGlide-AGV Polyurethane Swivel Caster - 5500 lbs Load Capacity - Enhanced Precision Duty with 1" Sealed Ball Bearing on Forged Steel - S-EPSD-AGV-124GB95 Hamilton
Made to Order · 4-6 Wk
Hamilton S-EPSD-AGV-124GB95 12" x 4" Polyurethane Swivel Caster – 5500 lb
Part # S-EPSD-AGV-124GB95
$1,538.00
Volume pricing available
Polyurethane
Load rating
5500 lbs
Diameter 12"
Capacity 5500 lbs
Wheel Polyurethane
More Details Less Details
Height 15.5"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton 12" DuraGlide-AGV Polyurethane Swivel Caster Product Code: S-EPSD-AGV-124GB95 Top-tier Features for High-Performance Applications...
Shop Product
9400 lbs
TieredPricing
Hamilton Maxi-Duty 12" Dual Rigid AGV Caster | 9400 lbs. Load Capacity | 12x3 DuraGlide-AGV Polyurethane Wheel (95A) | Forged Steel Center | 1-1/4" Sealed Precision Ball Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton 12" x 3" DuraGlide-AGV Dual Rigid Caster – 9400 lb
Part # R-MDD-AGV-12GB95
$2,234.00
Volume pricing available
PolyurethanePlate
Load rating
9400 lbs
Diameter 12"
Capacity 9400 lbs
Wheel Polyurethane
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 3"
Height 15.5"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty 12" Dual Swivel AGV Caster Top-tier Performance & Durability | Load Capacity:...
Shop Product
11000 lbs
TieredPricing
Hamilton 12" Maxi-Duty Dual Rigid Caster - 11,000 lbs Load Capacity - DuraGlide-AGV Polyurethane 95A on Forged Steel - 1-1/4" Sealed Ball Bearing - R-MDD-AGV-124GB95 Hamilton
Made to Order · 4-6 Wk
Hamilton R-MDD-AGV-124GB95 12" x 4" Polyurethane Dual Rigid Caster – 11000 lb
Part # R-MDD-AGV-124GB95
$2,528.00
Volume pricing available
PolyurethanePlate
Load rating
11000 lbs
Diameter 12"
Capacity 11000 lbs
Wheel Polyurethane
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Height 15.5"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton 12" Maxi-Duty Dual Rigid Caster - Product Code: R-MDD-AGV-124GB95 11,000 lbs Load Capacity...
Shop Product
5500 lbs
TieredPricing

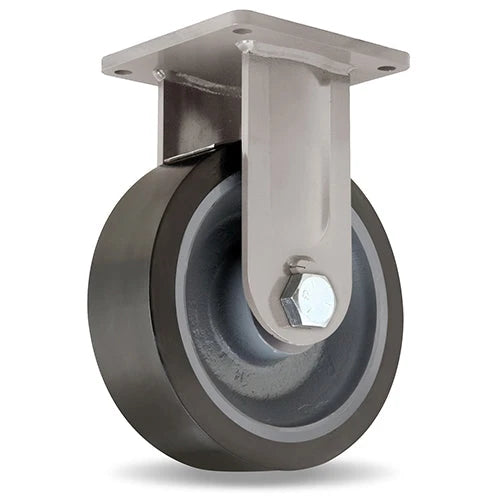

Hamilton 12" Rigid Caster for AGV - 5500 lbs Load Capacity - Maxi-Duty with DuraGlide-AGV Polyurethane (95A) on Forged Steel - 1-1/4" Sealed Precision Ball Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton 12" x 4" DuraGlide-AGV Rigid Caster – 5500 lb
Part # R-MD-AGV-124GB95
$1,483.00
Volume pricing available
PolyurethanePlate
Load rating
5500 lbs
Capacity 5500 lbs
Wheel Polyurethane
Mount Plate
More Details Less Details
Height 15.5"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton 12" Rigid Caster for AGV - 5500 lbs Load Capacity Maxi-Duty Performance |...
Shop Product
4700 lbs
TieredPricing

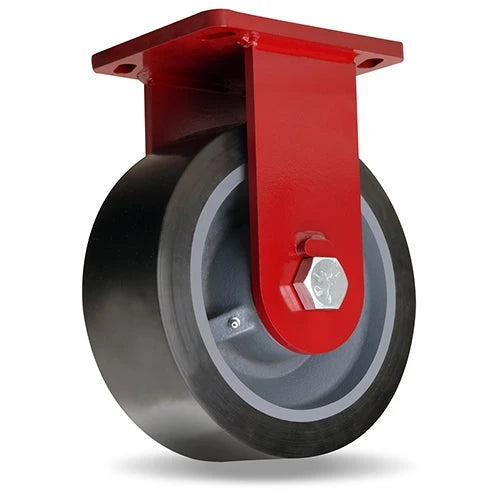

Hamilton 12" DuraGlide-AGV Polyurethane Rigid Caster - 4700 lbs Load Capacity, 95A Hardness, Forged Steel Center, 1" Sealed Precision Ball Bearing - Enhanced Precision Duty for AGV Hamilton
Made to Order · 4-6 Wk
Hamilton 12" x 3" DuraGlide-AGV Rigid Caster – 4700 lb
Part # R-EPSD-AGV-12GB95
$1,220.00
Volume pricing available
Polyurethane
Load rating
4700 lbs
Capacity 4700 lbs
Wheel Polyurethane
More Details Less Details
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton 12" DuraGlide-AGV Polyurethane Rigid Caster Premium Quality & Durability | 4700 lbs Load...
Shop Product
5500 lbs
TieredPricing
Hamilton 12" DuraGlide-AGV Polyurethane Rigid Caster - 5500 lbs Load Capacity - Enhanced Precision Duty with 1" Sealed Ball Bearing on Forged Steel - R-EPSD-AGV-124GB95 Hamilton
Made to Order · 4-6 Wk
Hamilton R-EPSD-AGV-124GB95 12" x 4" Polyurethane Rigid Caster – 5500 lb
Part # R-EPSD-AGV-124GB95
$1,278.00
Volume pricing available
Polyurethane
Load rating
5500 lbs
Diameter 12"
Capacity 5500 lbs
Wheel Polyurethane
More Details Less Details
Height 15.5"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton 12" DuraGlide-AGV Polyurethane Rigid Caster Product Code: R-EPSD-AGV-124GB95 Top-tier Features for High-Performance Applications...
Shop Product
