All measurements indicate the wheel diameter by the tread width.

The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″
BHP: 1-3/4″ × 2-7/8″, slotted to 3″
BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″
BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″
BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)
BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)
BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
(3″ Wide Casters), Industry-Standard
(3″ Wide Casters), Industry-Standard
BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
View All • 21 Plate Sizes
View All • 21 Plate Sizes
Plate Casters
Plate Casters
Stem Casters
Stem Casters
Stainless Casters
Stainless Casters
Ergonomic Casters
Ergonomic Casters
Leveling Casters
Leveling Casters
Back to Wheels
Caster Wheel Materials & Selection Guide

Caster Wheel Materials & Selection Guide
Polyolefin Wheels

Polyolefin Wheels
High Temperature Wheels

High Temperature Wheels
Track Wheels (All Types)

Track Wheels (All Types)
Hand Truck Wheels

Hand Truck Wheels
Rubber Wheels (All Types)

Rubber Wheels (All Types)
Nylon Wheels

Nylon Wheels
Keyed Drive Wheels

Keyed Drive Wheels
Pneumatic Wheels

Pneumatic Wheels
Atx Off-road Wheels

Atx Off-road Wheels
Poly Wheels (All Types)

Poly Wheels (All Types)
Phenolic Wheels

Phenolic Wheels
Metal Wheels (All Types)

Metal Wheels (All Types)
Flat-free (Foam-filled)

Flat-free (Foam-filled)
Wheel Replacement Parts

Wheel Replacement Parts
Back to Parts
Caster Plate Mounting Hardware

Caster Plate Mounting Hardware
Quick Change Caster Pads

Quick Change Caster Pads
Caster Frames - Swivel & Rigid

Caster Frames - Swivel & Rigid
Sockets & T-nuts For Casters

Sockets & T-nuts For Casters
Washers

Washers
Expanding Rubber Adapter Kits

Expanding Rubber Adapter Kits
Bumpers

Bumpers
Axles & Nuts

Axles & Nuts
Spanner Bushings

Spanner Bushings
Caster Shims & Weld Plates

Caster Shims & Weld Plates
Furniture Glides

Furniture Glides
Floor Truck Locks

Floor Truck Locks
Swivel Locks

Swivel Locks
Wheel Bearings

Wheel Bearings
Back to Material Handling

Furniture & Equipment Movers
Furniture Dollies

Furniture Dollies
Hydraulic Lift Tables

Hydraulic Lift Tables
Utility Carts

Utility Carts
Pallet Dollies

Pallet Dollies
Stevens ESCORT SRT-8 steel appliance hand truck, red steel frame, black uprights, strap and footplate

Safe & Appliance Dollies
Carts & Platform Trucks

Carts & Platform Trucks
Hand Trucks & Accessories

Hand Trucks & Accessories
Ratchet Straps & Tie Downs

Ratchet Straps & Tie Downs
Three Wheel Dollies

Three Wheel Dollies
Wire Shelving

Wire Shelving
Pallet Jacks

Pallet Jacks
Stackers

Stackers
Heavy Duty Tilt Trucks

Heavy Duty Tilt Trucks
Ball Transfers

Ball Transfers
Moving Supplies

Moving Supplies
Back to menu
Shop by IndustryAll 20 industries ›
Healthcare & Medical Material Handling Food Service & Food Processing Aerospace & Aviation Automotive Manufacturing & Industrial Data Centers Furniture & Fixtures Hospitality Institutional & Education Laundry & Linen Marine Horticulture & Gardens Retail Environment Robotics & Automation Air Cargo Defense & Military Oil, Gas & Energy Sanitation & Washdown Towline & Tugger
Shop by ApplicationAll applications ›
Specialty Casters Specialty Casters Gate Casters Gate Casters BBQ Pit & Smoker Casters BBQ Pit & Smoker Casters Keyed Drive Wheels Keyed Drive Wheels Drywall Cart Casters Drywall Cart Casters Skid Wheels & Casters for RVs Skid Wheels & Casters for RVs Leveling Casters Leveling Casters Shopping Cart Wheels & Casters Shopping Cart Wheels & Casters Band Equipment Casters & Wheels Band Equipment Casters & Wheels Low Profile Casters Low Profile Casters Cart Wheels & Casters Cart Wheels & Casters Toolbox Caster Sets Toolbox Caster Sets Bakery Oven Rack Casters Bakery Oven Rack Casters Kitchen Prep Table Caster Sets Kitchen Prep Table Caster Sets Wire Shelving Casters Wire Shelving Casters Silent Glide Casters Silent Glide Casters
Back to Brands
ALBION CASTERS

ALBION CASTERS
BLICKLE CASTERS

BLICKLE CASTERS
HAMILTON CASTERS

HAMILTON CASTERS
P&H CASTERS

P&H CASTERS
SHEPHERD CASTERS

SHEPHERD CASTERS
B&P MANUFACTURING

B&P MANUFACTURING
SAFE 'N SECURE

SAFE 'N SECURE
HUDSON BEARINGS

HUDSON BEARINGS
QUANTUM STORAGE

QUANTUM STORAGE
AMERICAN MOVING SUPPLIES

AMERICAN MOVING SUPPLIES
COLSON CASTERS

COLSON CASTERS
DURASTAR CASTERS

DURASTAR CASTERS
CORPS DESIGN

CORPS DESIGN
FAULTLESS MEDICAL CASTERS

FAULTLESS MEDICAL CASTERS

Keyed Replacement Wheels · 14mm Bore · 450–1,000 lb · Polyurethane

Diameter: 4 to 8 inTread: 1-1/2 and 2 inCapacity: 450 to 1,000 lb per wheel
14 mm bore keyed wheels in polyurethane. Polyurethane on steel cores is the most common tread here, rated 450 to 1,000 lb per wheel in 4, 5, 6 and 8 in.
600 lbs
TieredPricing
6" x 1-1/2" Polyurethane on Steel Keyed Drive Wheel | 14mm Bore - 600 lbs Capacity Per Wheel CasterHQ
Made to Order · 4-6 Weeks
6" x 1-1/2" Polyurethane Keyed Industrial Replacement Wheel – 600 lb · 14mm Bore
Part # HD-615-PS-KDW-14mm
$191.00
Volume pricing available
Polyurethane
Load rating
600 lbs
Size6" x 1-1/2"
Capacity600 lbs
MaterialPolyurethane
CoreSteel
More Details Less Details
Width 1-1/2"
Core Steel
Quick-fit wheel specs for replacement and procurement teams.
Shop Product
450 lbs
TieredPricing
4" x 1-1/2" Polyurethane on Steel Keyed Drive Wheel | 14mm Bore - 450 lbs Capacity Per Wheel CasterHQ
Made to Order · 4-6 Weeks
4" x 1-1/2" Polyurethane Keyed Industrial Wheel – 450 lb
Part # HD-415-PS-KDW-14mm
$133.00
Volume pricing available
Polyurethane
Load rating
450 lbs
Size4" x 1-1/2"
Capacity450 lbs
MaterialPolyurethane
CoreSteel
More Details Less Details
Width 1-1/2"
Core Steel
Quick-fit wheel specs for replacement and procurement teams.
Shop Product
1000 lbs
TieredPricing
8" x 2" Polyurethane on Steel Keyed Drive Wheel | 14mm Bore - 1,000 lbs Capacity Per Wheel CasterHQ
Made to Order · 4-6 Weeks
8" x 2" Polyurethane Keyed Industrial Replacement Wheel – 1,000 lb · 14mm Bore
Part # HD-82-PS-KDW-14mm
from $314.00
Volume pricing available
Polyurethane
Load rating
1000 lbs
Size8" x 2"
Capacity1000 lbs
MaterialPolyurethane
CoreSteel
More Details Less Details
Width 2"
Core Steel
Quick-fit wheel specs for replacement and procurement teams.
Shop Product
800 lbs
TieredPricing
6" x 2" Polyurethane on Steel Keyed Drive Wheel | 14mm Bore - 800 lbs Capacity Per Wheel CasterHQ
Made to Order · 4-6 Weeks
6" x 2" Polyurethane Keyed Industrial Replacement Wheel – 800 lb
Part # HD-62-PS-KDW-14mm
from $216.00
Volume pricing available
Polyurethane
Load rating
800 lbs
Size5" x 2"
Capacity800 lbs
MaterialPolyurethane
CoreSteel
More Details Less Details
Width 2"
Core Steel
Quick-fit wheel specs for replacement and procurement teams.
Shop Product
800 lbs
TieredPricing
5" x 2" Polyurethane on Steel Keyed Drive Wheel | 14mm Bore - 800 lbs Capacity Per Wheel CasterHQ
Made to Order · 4-6 Weeks
5" x 2" Polyurethane Keyed Industrial Replacement Wheel – 800 lb · 14mm Bore
Part # HD-52-PS-KDW-14mm
from $183.00
Volume pricing available
Polyurethane
Load rating
800 lbs
Size5" x 2"
Capacity800 lbs
MaterialPolyurethane
CoreSteel
More Details Less Details
Width 2"
Core Steel
Quick-fit wheel specs for replacement and procurement teams.
Shop Product
600 lbs
TieredPricing

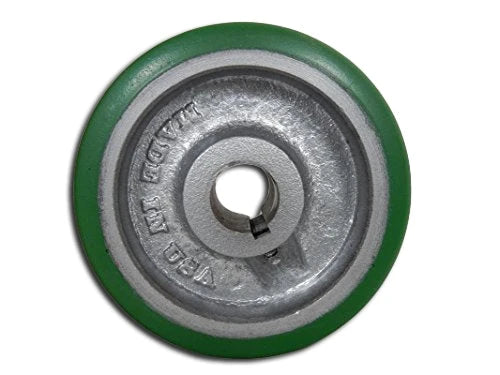

5" x 1-1/2" Polyurethane on Steel Keyed Drive Wheel | 14mm Bore - 600 lbs Capacity Per Wheel CasterHQ
Made to Order · 4-6 Weeks
5" x 1.5" Polyurethane Keyed Industrial Replacement Wheel – 600 lb · 14mm Bore
Part # HD-515-PS-KDW-14mm
$166.00
Volume pricing available
Polyurethane
Load rating
600 lbs
Size5" x 1-1/2"
Capacity600 lbs
MaterialPolyurethane
CoreSteel
More Details Less Details
Width 1-1/2"
Core Steel
Quick-fit wheel specs for replacement and procurement teams.
Shop Product
600 lbs
TieredPricing
4" x 2" Polyurethane on Steel Keyed Drive Wheel | 14mm Bore - 600 lbs Capacity Per Wheel CasterHQ
Made to Order · 4-6 Weeks
4" x 2" Polyurethane Keyed Industrial Replacement Wheel – 600 lb · 2-3/16" Hub · 14mm Bore
Part # HD-42-PS-KDW-14mm
from $133.00
Volume pricing available
Polyurethane
Load rating
600 lbs
Size4" x 2"
Capacity600 lbs
MaterialPolyurethane
CoreSteel
More Details Less Details
Width 2"
Core Steel
Quick-fit wheel specs for replacement and procurement teams.
Shop Product

14 mm bore keyed wheels by tread

Tread Core Wheel sizes Rated per wheel Listed temperature Where it fits
Polyurethane Steel 4, 5, 6 and 8 in 450 to 1,000 lb quiet, floor-friendly and long wearing

Ratings are for single wheels of 14 mm bore keyed wheels, from product fields [S1].

Wheel sizes

Wheel Treads Rated
4 x 1-1/2 in polyurethane 450 lb
4 x 2 in polyurethane 600 lb
5 x 1-1/2 in polyurethane 600 lb
5 x 2 in polyurethane 800 lb
6 x 1-1/2 in polyurethane 600 lb
8 x 2 in polyurethane 1,000 lb

Choosing 14 mm bore keyed wheels

  1. Load: divide the loaded weight by three for a four-wheel cart [S2]. A 800 lb wheel from this page then suits about 2,400 lb, and the strongest at 1,000 lb about 3,000 lb.
  2. Floor: on 14 mm bore keyed wheels, polyurethane protects finished floors and runs quietly; check the rating if the cart also crosses rough concrete.

14 mm bore keyed wheels questions

How much weight can 14 mm bore keyed wheels carry?

Single 14 mm bore keyed wheels are rated 450 to 1,000 lb.

What wheel material is most common on 14 mm bore keyed wheels?

Polyurethane leads on 14 mm bore keyed wheels, rated 450 to 1,000 lb per wheel.

Jordan Wilson, CasterHQ · reviewed October 20, 2026 · 844-439-4335 · info@casterhq.com

Sources

  • [S1] CasterHQ product fields (rated load, diameter, width, wheel and core material, temperature range, mount) and product descriptions for the items on this page, pulled October 20, 2026.
  • [S2] Preferred Equipment casters and wheels quick guide PDF (prefeq.com): load sizing on one less caster, wheel types and floor notes.
