All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.
Wheel = wheel diameter · capacity is per caster.
























| Tread | Core | Wheel sizes | Rated per caster | Listed temperature | Where it fits |
|---|---|---|---|---|---|
| Polyurethane | Polyolefin | 4, 4.92, 5 and 6 in | 200 to 250 lb | -30°F to 140°F | quiet, floor-friendly and long wearing |
| Rubber | Polyolefin | 5 and 6 in | 200 to 300 lb | -30°F to 140°F | cushioned and quiet on finished floors |
| TPR | Polyolefin | 4.92 and 5 in | 250 lb | -30°F to 140°F | non-marking, quiet on finished floors |
| Polyolefin | 4.92 in | 250 lb | -30°F to 140°F | wet and chemical areas, light to medium loads |

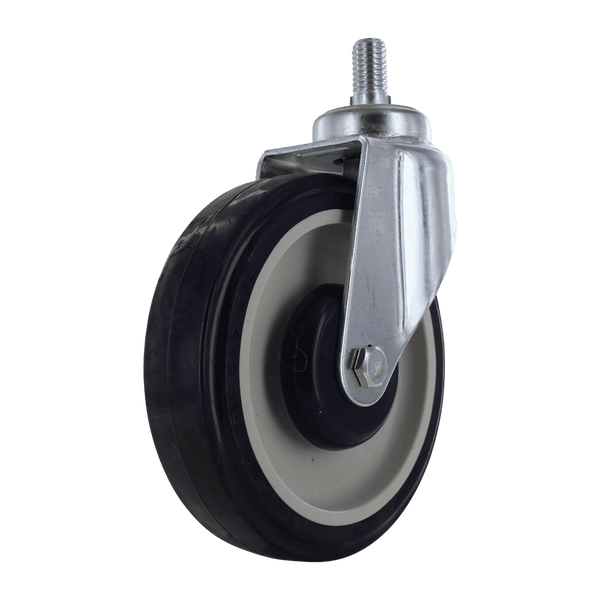

Ratings are for single casters of P&H 30 series casters, from product fields [S1].
| Wheel | Treads | Rated |
|---|---|---|
| 4 x 1 in | polyurethane | 200 lb |
| 4 x 1-1/4 in | polyurethane | 200 lb |
| 4.92 x 1.18 in | polyurethane | 225 to 250 lb |
| 4.92 x 1-1/4 in | polyurethane | 250 lb |
| 4.92 x 1.26 in | polyurethane, polyolefin and TPR | 200 to 250 lb |
| 5 x 1-1/4 in | polyurethane, rubber and TPR | 200 to 250 lb |
| 6 x 1-1/4 in | polyurethane and rubber | 250 to 300 lb |
Related to P&H 30 series casters: 5 x 1-1/4 in rubber wheels and 5 x 1.25 in polyurethane casters.
Single P&H 30 series casters are rated 200 to 300 lb.
Most P&H 30 series casters list 1/2-13 x 1 in. Others: M12 x 40mm in and 1/2 in.
Polyurethane leads on P&H 30 series casters, rated 200 to 250 lb per caster. Among P&H 30 series casters, rubber is next at 200 to 300 lb.

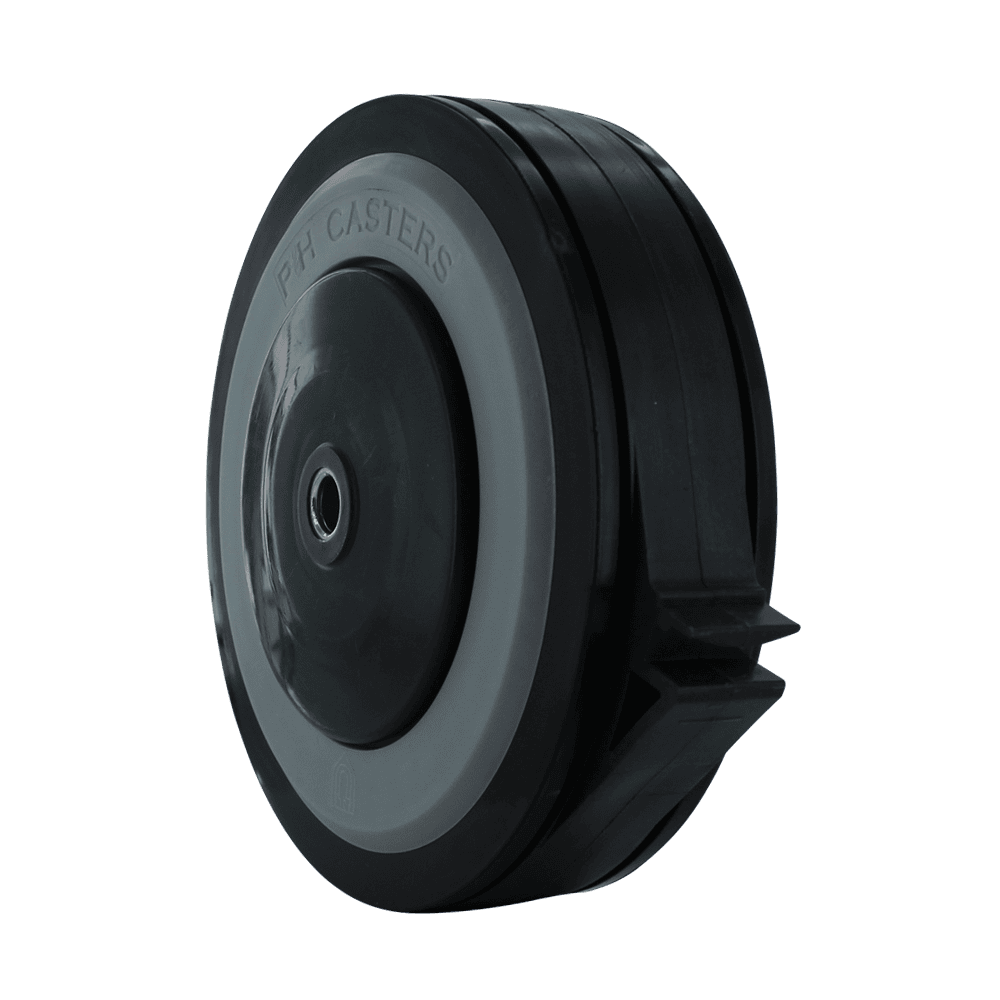

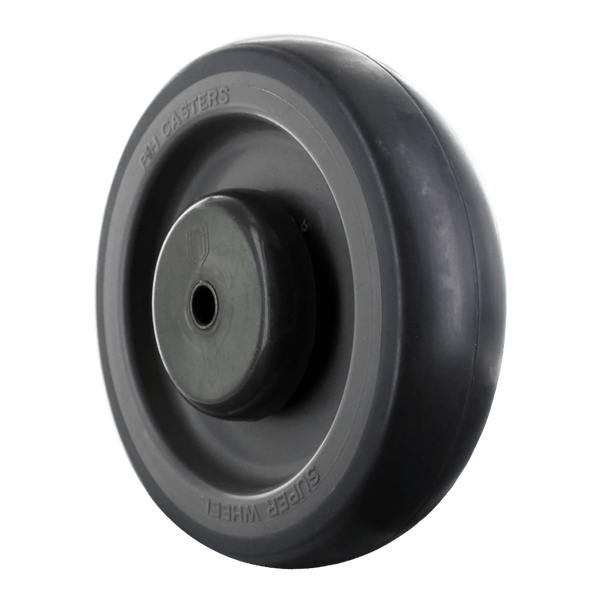

Yes. Wheel-only listings for P&H 30 series casters are here, sized 5 in; match the bore and hub length to your axle.
