The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

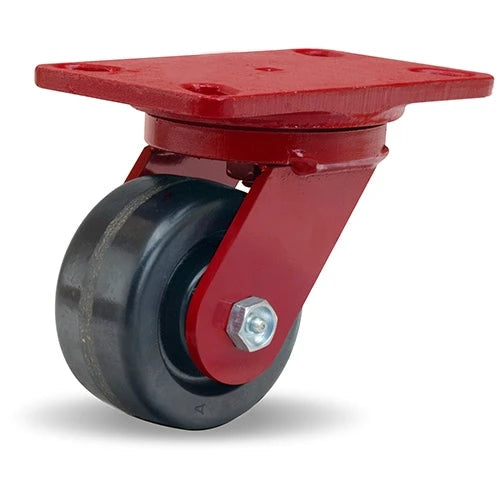

4" x 2" Phenolic Casters

Diameter: 4 inTread: 2 inCapacity: up to 800 lb

Phenolic casters here serve bake carts, metalworking fixtures, and debris-heavy floors. Typical builds show wheel diameters 4 in, phenolic treads, and plate-mount frames. Size capacity from the heaviest corner load with shock margin, and keep overall height consistent across the set. Replace worn corners in matched sets when possible so the cart tracks straight under load. These medium-duty options cover everyday bake carts, metalworking fixtures, and debris-heavy floors without jumping to extreme forged series.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"

View All • 21 Plate Sizes
