4" x 2" Phenolic Casters

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Diameter: 4 inTread: 2 inCapacity: 600 to 800 lb per casterPlate sizes: 4-1/2 x 6-1/2

This page lists four casters with 4 in wheels, rated 600 to 800 lb each, made by Hamilton. The top plate is 4-1/2 x 6-1/2 in on all of them, and you can pick swivel or rigid, and none has a brake. Two examples are a Hamilton S-SPHS-4SPB-1 4 x 2 in Ergo-Glide spring loaded swivel caster rated 600 lb and a Hamilton R-SPHS-4P-2 4 x 2 in Plastex phenolic rigid spring loaded caster rated 800 lb. The usual temperature rating here is up to 250°F.

600 lbs

TieredPricing

S-SPHS-4SPB-2 Hamilton Heavy Service Swivel Caster - 4"x2" Ergo-Glide Polyurethane Wheel - Spring Loaded with 1/2" Sealed Precision Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton S-SPHS-4SPB-2 4"x2" Ergo-Glide Swivel Spring Loaded Caster – 600 lb

Part # S-SPHS-4SPB-2

from $551.00

Volume pricing available

PolyurethanePlate

Load rating

600 lbs

Size4" x 2"

Capacity600 lbs

WheelPolyurethane

MountPlate 4-1/2" x 6-1/2"

TypeSwivel

More Details Less Details

Width 2"

Height 6-11/16"

Bolt Pattern 2-3/8" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Swivel

Brake No Brake

Frame Crimson Powder

S-SPHS-4SPB-2 Hamilton Heavy Service Swivel Caster: Optimum Mobility with Durability 4" x 2" Ergo-Glide...

Shop Product

600 lbs

TieredPricing

Hamilton S-SPHS-4SPB-1 Heavy Service Swivel Caster - 4"x2" Ergo-Glide Polyurethane on Cast Iron - 1/2" Sealed Precision Ball Bearings - Durable & High-Quality Hamilton

Made to Order · 4-6 Wk

Hamilton S-SPHS-4SPB-1 4"x2" Ergo-Glide Spring Loaded Swivel Caster – 600 lb

Part # S-SPHS-4SPB-1

from $495.00

Volume pricing available

PolyurethanePlate

Load rating

600 lbs

Size4" x 2"

Capacity600 lbs

WheelPolyurethane

MountPlate 4-1/2" x 6-1/2"

TypeSwivel

More Details Less Details

Width 2"

Height 6-11/16"

Bolt Pattern 2-3/8" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Swivel

Brake No Brake

Frame Crimson Powder

Hamilton S-SPHS-4SPB-1 Spring Loaded Heavy Service Swivel Caster High-Quality Caster | Durable & Reliable...

Shop Product

800 lbs

TieredPricing

R-SPHS-4P-2 Hamilton Spring Loaded Rigid Caster: 4" x 2" Plastex Phenolic Wheel with 3/4" Roller Bearing - Heavy Duty Performance & Smooth Mobility Hamilton

Made to Order · 4-6 Wk

Hamilton R-SPHS-4P-2 4" x 2" Plastex Phenolic Rigid Spring Loaded Caster – 800 lb

Part # R-SPHS-4P-2

from $476.00

Volume pricing available

PhenolicPlate

Load rating

800 lbs

Size4" x 2"

Capacity800 lbs

WheelPhenolic

MountPlate 4-1/2" x 6-1/2"

TypeRigid

More Details Less Details

Width 2"

Height 6-11/16"

Bolt Pattern 2-3/8" x 4-15/16" and 3-3/8" x 5-1/4"

Core Phenolic

Temp Range Up to 250°F

Rig Type Rigid

Brake No Brake

Frame Crimson Powder

R-SPHS-4P-2 Hamilton Spring Loaded Heavy Service Rigid Caster 4" x 2" Plastex Phenolic Wheel...

Shop Product

620 lbs

TieredPricing

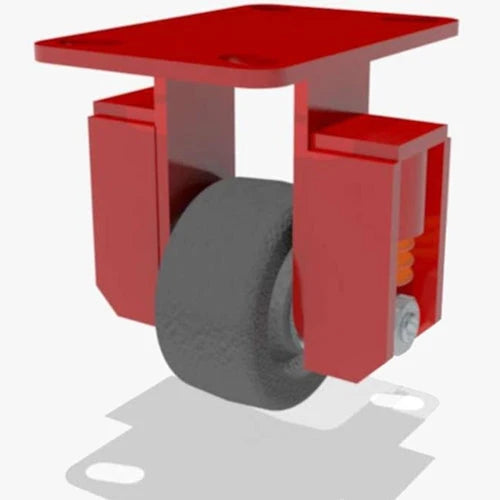

Hamilton Spring Loaded Rigid Caster R-SPHS-4P-1 - 4"x2" Plastex Phenolic Wheel with 3/4" Roller Bearing - Heavy-Duty Industrial Use Hamilton

Made to Order · 4-6 Wk

Hamilton R-SPHS-4P-1 4"x2" Plastex Phenolic Rigid Spring Loaded Caster – 620 lb

Part # R-SPHS-4P-1

from $431.00

Volume pricing available

PhenolicPlate

Load rating

620 lbs

Size4" x 2"

Capacity620 lbs

WheelPhenolic

MountPlate 4-1/2" x 6-1/2"

TypeRigid

More Details Less Details

Width 2"

Height 6-11/16"

Bolt Pattern 2-3/8" x 4-15/16" and 3-3/8" x 5-1/4"

Core Phenolic

Temp Range Up to 250°F

Rig Type Rigid

Brake No Brake

Frame Crimson Powder

R-SPHS-4P-1 Hamilton Spring Loaded Heavy Service Rigid Caster Top-Quality & Durability | Perfect for...

Shop Product

Hamilton Spring Loaded SPHS Casters with 4" Ergo-Glide Wheels

Spring-Loaded Shock Absorption | 4" Premium Ergo-Glide Wheels

Revolutionary Spring Loaded Casters from Hamilton

Welcome the Hamilton Spring Loaded SPHS Casters – engineered specifically for superior shock absorption and weight distribution. Equipped with top-of-the-line 4" Ergo-Glide Wheels, these casters promise reduced floor wear, smoother transitions, and increased longevity. Ideal for e-commerce platforms, warehouses, and industrial setups prioritizing safety and efficiency.

Why Choose Hamilton's Ergo-Glide SPHS Casters?

Embrace the gold standard in mobility solutions with Hamilton's SPHS series. Offering unmatched durability, these spring-loaded casters ensure optimal weight distribution, reducing wear and tear. Trust in Hamilton, a renowned brand in caster innovation, for your e-commerce and industrial needs.

Need Assistance? Hamilton's Caster Experts Are Here For You

Considering the Hamilton Spring Loaded SPHS Casters for your facility? Get in touch with our team of Caster Experts available weekdays. Experience world-class support and make informed decisions for your e-commerce or industrial operations.
