4" x 2" Casters

Diameter: 4 inTread: 2 inCapacity: up to 1,600 lb
Industrial tread compounds casters here serve warehouse carts, racks, and everyday plant fixtures. Typical builds show wheel diameters 4 in, plate-mount frames, and capacities 600 to 1,600 lb. For dual-wheel or wide treads, check fork clearance and swivel radius in tight aisles. Use kingpinless or heavy plate series when shock loads keep shearing kingpin races. These medium-duty options cover everyday warehouse carts, racks, and everyday plant fixtures without jumping to extreme forged series.
1600 lbs
TieredPricing
4" x 2" Kingpinless Swivel Caster - Hamilton Standard Duty - Ergo-Glide Polyurethane Wheel - 1/2" Sealed Precision Ball Bearings S-52K-4SPB Hamilton
Made to Order · 4-6 Wk
Hamilton S-52K-4SPB 4" x 2" Ergo-Glide Kingpinless Swivel Caster – 1600 lb
Part # S-52K-4SPB
from $159.00
Volume pricing available
PolyurethanePlate
Load rating
1600 lbs
Diameter 4"
Capacity 1600 lbs
Wheel Polyurethane
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Iron
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Standard Duty Kingpinless Swivel Caster with Ergo-Glide Polyurethane Wheel The Hamilton Standard Duty...
Shop Product
600 lbs
TieredPricing
Hamilton Spinfinity Maintenance-Free Kingpinless ZFWH Series Swivel Caster with 4" x 2" Ergo-Glide Wheel (80A) with 1/2" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-ZFWH-4SPB 4" x 2" Ergo-Glide Swivel Kingpinless Caster – 600 lb
Part # S-ZFWH-4SPB
from $275.00
Volume pricing available
PolyurethanePlate
Load rating
600 lbs
Diameter 4"
Capacity 600 lbs
Wheel Polyurethane
Mount Plate
Plate Size 4" x 5"
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8"
Core Cast Iron
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Spinfinity Maintenance-Free Kingpinless ZFWH Series Swivel Caster with 4" x 2" Ergo-Glide Wheel...
Shop Product
600 lbs
TieredPricing
S-ZFHS-4SPB Hamilton Spinfinity Maintenance-Free Kingpinless ZFHS Series Swivel Caster | 4" x 2" Ergo-Glide Wheel (80A Hardness) | 3/4" Sealed Precision Ball Bearings | Durable & High-Performance Caster Wheel for Industrial Use Hamilton
Made to Order · 4-6 Wk
Hamilton S-ZFHS-4SPB 4" x 2" Ergo-Glide Swivel Kingpinless Caster
Part # S-ZFHS-4SPB
from $297.00
Volume pricing available
Cast IronPlate
Load rating
600 lbs
Diameter 4"
Capacity 600 lbs
Wheel Cast Iron
Mount Plate
Plate Size 4-1/2" x 6-1/2"
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"
Core Cast Iron
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
S-ZFHS-4SPB Hamilton Spinfinity Maintenance-Free Kingpinless ZFHS Series Swivel Caster | Ergo-Glide Wheel S-ZFHS-4SPB Hamilton...
Shop Product
600 lbs
TieredPricing

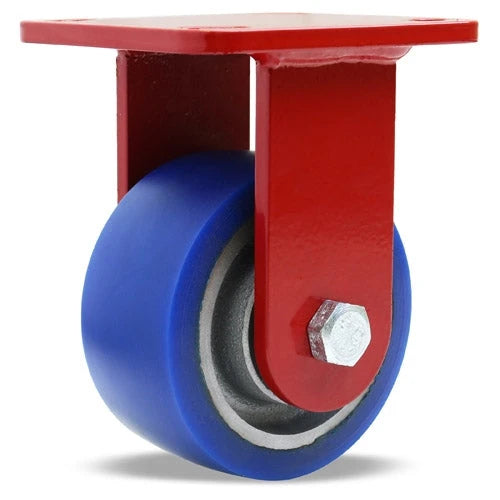

Hamilton ZFWH Series Rigid Caster with 4" x 2" Ergo-Glide Wheel with 1/2" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-ZFWH-4SPB 4" x 2" Ergo-Glide Rigid Caster – 600 lb
Part # R-ZFWH-4SPB
from $160.00
Volume pricing available
PolyurethanePlate
Load rating
600 lbs
Diameter 4"
Capacity 600 lbs
Wheel Polyurethane
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8"
Core Cast Iron
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton ZFWH Series Rigid Caster with 4" x 2" Ergo-Glide Wheel with 1/2" Sealed...
Shop Product
600 lbs
TieredPricing

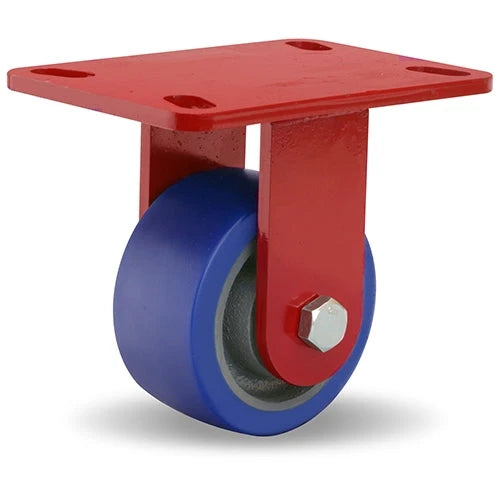

Hamilton Heavy Service Rigid Caster with 4" x 2" Ergo-Glide Polyurethane (85A) on Cast Iron Wheel with 1/2" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-HS-4SPB 4" x 2" Ergo-Glide Rigid Caster – 600 lb
Part # R-HS-4SPB
from $147.00
Volume pricing available
Cast IronPlate
Load rating
600 lbs
Diameter 4"
Capacity 600 lbs
Wheel Cast Iron
Mount Plate
Plate Size 4-1/2" x 6-1/2"
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-7/16" x 4-15/16"
Core Cast Iron
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Heavy Service Rigid Caster with 4" x 2" Ergo-Glide Polyurethane (85A) on Cast...
Shop Product
1600 lbs
TieredPricing
4" x 2" Rigid Caster - Hamilton Standard Duty - Ergo-Glide Polyurethane Wheel - 1/2" Sealed Precision Ball Bearings R-52K-4SPB Hamilton
Made to Order · 4-6 Wk
Hamilton R-52K-4SPB 4" x 2" Ergo-Glide Rigid Caster – 1600 lb
Part # R-52K-4SPB
from $132.00
Volume pricing available
PolyurethanePlate
Load rating
1600 lbs
Diameter 4"
Capacity 1600 lbs
Wheel Polyurethane
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Iron
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Standard Duty Rigid Caster with Ergo-Glide Polyurethane Wheel The Hamilton Standard Duty Rigid...
Shop Product

Hamilton Standard Ergonomic Casters with 4" Ergo-Glide Wheels

Advanced 4" Ergo-Glide Wheels | Ergonomic Precision for Enhanced Mobility

Leading-edge Ergonomic Caster Design

Elevate your equipment mobility with the Hamilton Standard Ergonomic Casters. Boasting 4" Ergo-Glide Wheels, these casters offer effortless movement and reduced rolling resistance. The ergonomic design ensures minimal strain, establishing them as a go-to for professionals seeking both performance and comfort.

Experience Superior Mobility with Hamilton's Ergonomic Casters

Dive into the future of mobility with Hamilton's ergonomic caster series. Ideal for diverse applications, our casters promise long-lasting reliability, reducing the need for frequent replacements. Choose Hamilton, the trusted name in high-quality ergonomic casters.

Require Caster Guidance? Lean on Hamilton's Expertise

Thinking about integrating Hamilton's ergonomic casters with 4" Ergo-Glide Wheels? Our expert team is ready to assist you. Contact us weekdays between 8 am - 5 pm and discover caster solutions optimized for your specific needs.
