4" x 2" Forged Steel Casters

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Diameter: 4 inTread: 2 inCapacity: 560 to 800 lb per casterPlate sizes: 4 x 4-1/2, 4 x 5
This page lists six steel casters with 4 in wheels, rated 560 to 800 lb each, made by Hamilton. Most mount on a 4 x 4-1/2 in plate, with 4 x 5 in also offered, and you can pick swivel or rigid, and none has a brake. You will find a Hamilton S-WHS-4HFSB 4 x 2 in forged steel swivel stainless caster rated 560 lb and a Hamilton S-52HK-4HFSB 4 x 2 in forged steel swivel kingpinless caster rated 800 lb here. Temperature ratings sit at -22°F to 750°F for most of the page.
560 lbs
TieredPricing

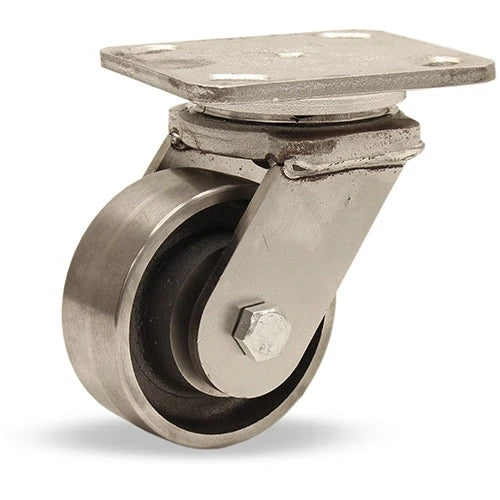

Hamilton S-WHS-4HFSB Stainless Steel Workhorse Swivel Caster - 4"x2" Forged Steel Wheel - High-Temperature Resistant up to 750°F with Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-WHS-4HFSB 4" x 2" Forged Steel Swivel Stainless Caster
Part # S-WHS-4HFSB
from $699.00
Volume pricing available
SteelPlate
Load rating
560 lbs
Size4" x 2"
Capacity560 lbs
WheelSteel
MountPlate 4" x 5"
TypeSwivel
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Steel
Temp Range -22°F to 750°F
Rig Type Swivel
Brake No Brake
Frame Stainless
S-WHS-4HFSB Hamilton Stainless Steel Workhorse Swivel Caster 4" x 2" Forged Steel Wheel |...
Shop Product
560 lbs
TieredPricing

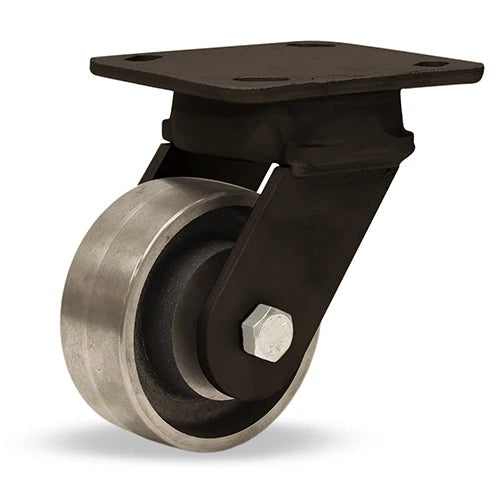

Hamilton WHK Inferno Series S-WHK-4HFSB - 750° F Rated Swivel Caster with 4" x 2" Forged Steel Wheel & High Heat Stainless Steel Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-WHK-4HFSB 4" x 2" Forged Steel Swivel Caster – 560 lb
Part # S-WHK-4HFSB
from $467.00
Volume pricing available
SteelPlate
Load rating
560 lbs
Size4" x 2"
Capacity560 lbs
WheelSteel
MountPlate 4" x 5"
TypeSwivel
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Steel
Temp Range -22°F to 750°F
Rig Type Swivel
Brake No Brake
Frame Steel, Black
S-WHK-4HFSB Hamilton High Heat WHK Inferno Series Swivel Caster Rated up to 750° F...
Shop Product
800 lbs
TieredPricing

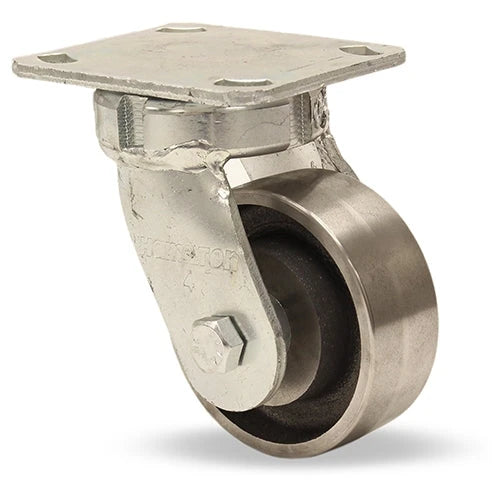

Hamilton S-52HK-4HFSB High Heat Kingpinless Swivel Caster - 4" x 2" Forged Steel Wheel, 750° F Rated with Shielded Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-52HK-4HFSB 4" x 2" Forged Steel Swivel Kingpinless Caster
Part # S-52HK-4HFSB
from $318.00
Volume pricing available
SteelPlate
Load rating
800 lbs
Size4" x 2"
Capacity800 lbs
WheelSteel
MountPlate 4" x 4-1/2"
TypeSwivel
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Steel
Temp Range -22°F to 750°F
Rig Type Swivel
Brake No Brake
Frame Steel, Bright Zinc Plated
S-52HK-4HFSB Hamilton High Heat Kingpinless Swivel Caster 4" x 2" Forged Steel Wheel Rated...
Shop Product
595 lbs
TieredPricing

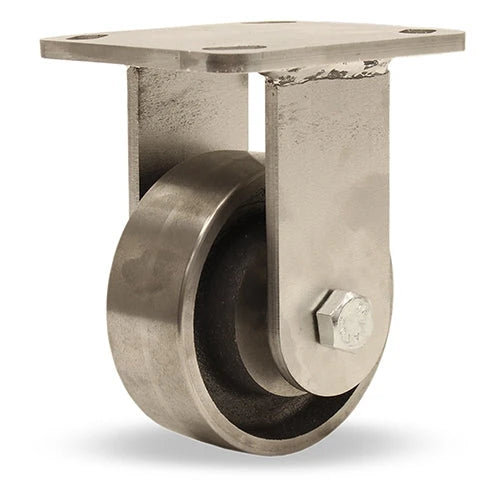

Hamilton R-WHS-4HFSB Stainless Steel Workhorse Rigid Caster - 4"x2" Forged Steel Wheel - High-Temperature Resistant up to 750°F with Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-WHS-4HFSB 4"x2" Forged Steel Rigid Stainless Caster – CasterHQ
Part # R-WHS-4HFSB
from $404.00
Volume pricing available
SteelPlate
Load rating
595 lbs
Size4" x 2"
Capacity595 lbs
WheelSteel
MountPlate 4" x 4-1/2"
TypeRigid
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Steel
Temp Range -22°F to 750°F
Rig Type Rigid
Brake No Brake
Frame Stainless
R-WHS-4HFSB Hamilton Stainless Steel Workhorse Rigid Caster 4" x 2" Forged Steel Wheel |...
Shop Product
560 lbs
TieredPricing

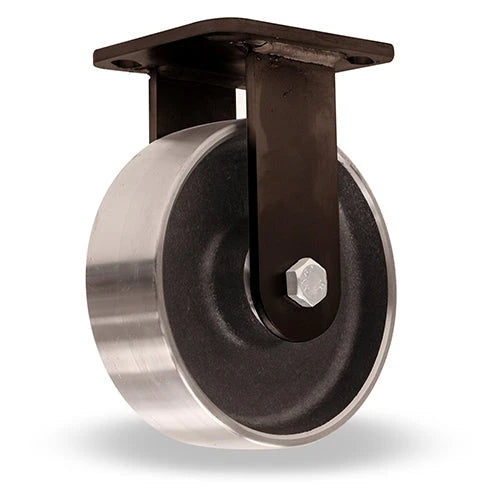

Hamilton WHK Inferno Series R-WHK-4HFSB - 750° F Rated Rigid Caster with 4" x 2" Forged Steel Wheel & High Heat Stainless Steel Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-WHK-4HFSB 4" x 2" Forged Steel Rigid Caster – 560 lb
Part # R-WHK-4HFSB
from $308.00
Volume pricing available
SteelPlate
Load rating
560 lbs
Size4" x 2"
Capacity560 lbs
WheelSteel
MountPlate 4" x 4-1/2"
TypeRigid
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Steel
Temp Range -22°F to 750°F
Rig Type Rigid
Brake No Brake
Frame Steel, Black
R-WHK-4HFSB Hamilton High Heat WHK Inferno Series Rigid Caster Rated up to 750° F...
Shop Product
800 lbs
TieredPricing

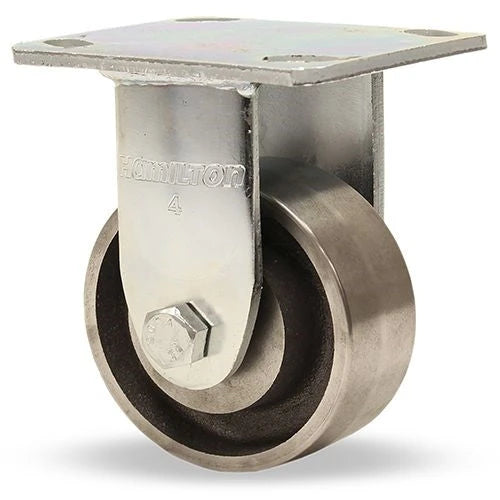

Hamilton R-52HK-4HFSB High Heat Rigid Caster - 4" x 2" Forged Steel Wheel, 750° F Rated with Shielded Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-52HK-4HFSB 4" x 2" Forged Steel Rigid Caster – 750° F
Part # R-52HK-4HFSB
from $288.00
Volume pricing available
Forged SteelPlate
Load rating
800 lbs
Size4" x 2"
Capacity800 lbs
WheelForged Steel
MountPlate 4" x 4-1/2"
TypeRigid
More Details Less Details
Width 2"
Height 5-5/8"
Temp Range -22°F to 750°F
Rig Type Rigid
Brake No Brake
R-52HK-4HFSB Hamilton High Heat Rigid Caster 4" x 2" Forged Steel Wheel Rated up...
Shop Product

Hamilton Inferno Series Heavy Duty Casters with 4" Forged Steel Wheels

Heavy-Duty 4" Inferno Forged Steel Wheels | High-Temperature Resistant

Robust and Reliable – Hamilton Inferno Heavy Duty Casters

Discover the power of the Hamilton Inferno Heavy Duty Casters, engineered for reliability in high-temperature environments. Our 4" Inferno Forged Steel Wheels are designed to withstand the rigors of industrial applications, making them an essential component for furnaces, foundries, and other heat-intensive settings.

These casters boast exceptional durability and performance, offering smooth maneuverability and steadfast support for heavy loads. Embrace the heat with Hamilton's high-temperature solutions.

Enhance Your Operations with High-Temperature Capability

Selecting the right casters for your high-temperature applications can dramatically improve your operational efficiency. The Hamilton Inferno Series is the prime choice for businesses that require robust, heat-resistant mobility solutions. Optimize your equipment with casters that are built to last.

Need Heat-Resistant Casters? Get Expert Advice

Considering an upgrade to Hamilton Inferno Heavy Duty Casters? Our industry-leading experts are ready to assist you. Contact us weekdays from 8 am to 5 pm for professional advice on choosing the best high-temperature casters for your needs.
