The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

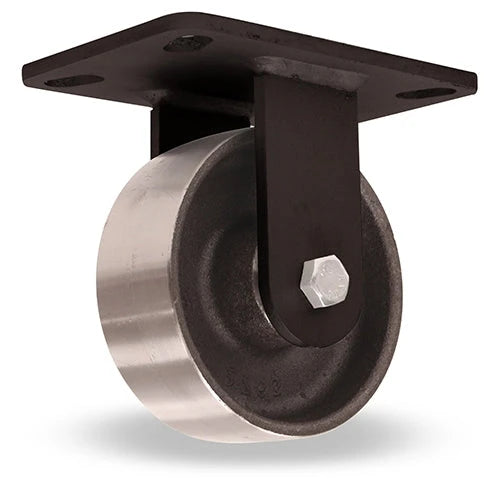

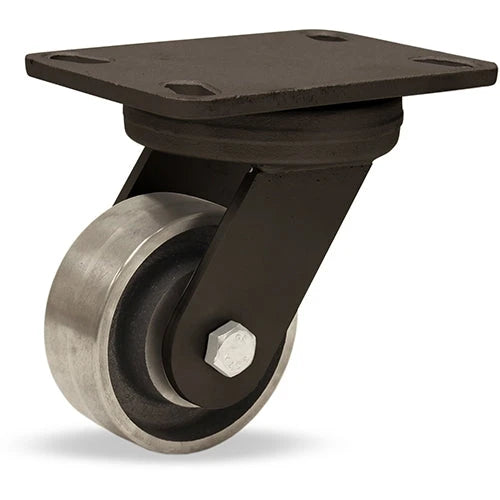

4" x 2" Forged Steel Casters

Plate sizes: 4-1/2 x 6-1/2Diameter: 4 inTread: 2 inCapacity: up to 2,200 lb

4-1/2 x 6-1/2 inch top-plate casters for heavy warehouse carts, die carts, and plant fixtures. Typical builds show wheel diameters 4 in, steel treads, and capacities 1,120 to 2,200 lb. Replace worn corners in matched sets when possible so the cart tracks straight under load. Larger plates spread bolt stress on thick frames under continuous tow abuse. Size capacity from the heaviest corner load with shock margin, and keep overall height consistent across the set.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
