5" x 2" Polyurethane Casters

Diameter: 5 inTread: 2 inCapacity: up to 1,200 lb
5" x 2" Polyurethane Casters for warehouse carts on epoxy and smooth concrete. Catalog chips cover wheel diameters 5 in, polyurethane treads, and plate-mount frames. Size capacity from the heaviest corner load with shock margin, and keep overall height consistent across the set. Replace worn corners in matched sets when possible so the cart tracks straight under load. These medium-duty options cover everyday warehouse carts on epoxy and smooth concrete without jumping to extreme forged series.
1050 lbs
TieredPricing
Hamilton Spring Loaded Swivel Caster S-SPHS-5DB-2 - 5"x2" Duralast Polyurethane Wheel with 1/2" Sealed Precision Bearings - Heavy Service & Durable Hamilton
Made to Order · 4-6 Wk
Hamilton S-SPHS-5DB-2 5"x2" Duralast Poly Swivel Spring Loaded Caster – 1050 lb
Part # S-SPHS-5DB-2
from $540.00
Volume pricing available
PolyurethanePlate
Load rating
1050 lbs
Diameter 5"
Capacity 1050 lbs
Wheel Polyurethane
Mount Plate
Plate Size 4-1/2" x 6-1/2"
More Details Less Details
Width 2"
Height 7-3/16"
Bolt Pattern 2-3/8" x 4-15/16" and 3-3/8" x 5-1/4"
Core Cast Iron
Temp Range -5°F to 160°F
Rig Type Swivel
Brake No Brake
Frame Crimson Powder
Hamilton Spring Loaded Heavy Service Swivel Caster: Unparalleled Performance & Durability Optimal Load Capacity...
Shop Product
620 lbs
TieredPricing
Hamilton S-SPHS-5DB-1 Heavy Service Swivel Caster - 5" x 2" Duralast Polyurethane Wheel with 1/2" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-SPHS-5DB-1 5" x 2" Duralast Swivel Spring Loaded Caster – 620 lb
Part # S-SPHS-5DB-1
from $626.00
Volume pricing available
PolyurethanePlate
Load rating
620 lbs
Diameter 5"
Capacity 620 lbs
Wheel Polyurethane
Mount Plate
Plate Size 4-1/2" x 6-1/2"
More Details Less Details
Width 2"
Height 7-3/16"
Bolt Pattern 2-3/8" x 4-15/16" and 3-3/8" x 5-1/4"
Core Cast Iron
Temp Range -5°F to 160°F
Rig Type Swivel
Brake No Brake
Frame Crimson Powder
Hamilton S-SPHS-5DB-1 Spring Loaded Heavy Service Swivel Caster 5" x 2" Duralast Polyurethane Wheel...
Shop Product
1050 lbs
TieredPricing
Hamilton Spring Loaded Rigid Caster R-SPHS-5DB-2 - 5"x2" Duralast Polyurethane Wheel with 1/2" Sealed Precision Bearings - Heavy Service & Durable Hamilton
Made to Order · 4-6 Wk
Hamilton R-SPHS-5DB-2 5"x2" Duralast Rigid Spring Loaded Caster – 1050 lb
Part # R-SPHS-5DB-2
from $513.00
Volume pricing available
PolyurethanePlate
Load rating
1050 lbs
Diameter 5"
Capacity 1050 lbs
Wheel Polyurethane
Mount Plate
Plate Size 4-1/2" x 6-1/2"
More Details Less Details
Width 2"
Height 7-3/16"
Bolt Pattern 2-3/8" x 4-15/16" and 3-3/8" x 5-1/4"
Core Cast Iron
Temp Range -5°F to 160°F
Rig Type Rigid
Brake No Brake
Frame Crimson Powder
Hamilton Spring Loaded Heavy Service Rigid Caster: Unparalleled Performance & Durability Optimal Load Capacity...
Shop Product
620 lbs
TieredPricing

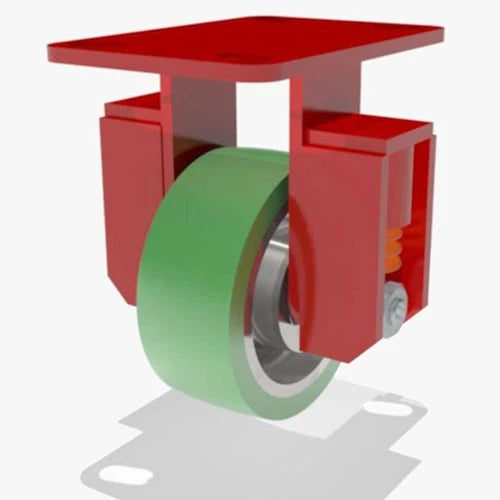

Hamilton R-SPHS-5DB-1 Heavy Service Rigid Caster - 5" x 2" Duralast Polyurethane Wheel with 1/2" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-SPHS-5DB-1 5" x 2" Duralast Rigid Spring Loaded Caster – 620 lb
Part # R-SPHS-5DB-1
from $460.00
Volume pricing available
PolyurethanePlate
Load rating
620 lbs
Diameter 5"
Capacity 620 lbs
Wheel Polyurethane
Mount Plate
Plate Size 4-1/2" x 6-1/2"
More Details Less Details
Width 2"
Height 7-3/16"
Bolt Pattern 2-3/8" x 4-15/16" and 3-3/8" x 5-1/4"
Core Cast Iron
Temp Range -5°F to 160°F
Rig Type Rigid
Brake No Brake
Frame Crimson Powder
Hamilton R-SPHS-5DB-1 Spring Loaded Heavy Service Rigid Caster 5" x 2" Duralast Polyurethane Wheel...
Shop Product

Hamilton Spring Loaded | SPHS Casters with 5" Duralast Polyurethane Wheels

5" Premium Duralast Polyurethane Wheels | Spring-Loaded for Enhanced Maneuverability

High-Quality and Reliable Hamilton Spring Loaded Casters

Explore the efficiency of the Hamilton Spring Loaded SPHS Casters fitted with industry-leading 5" Duralast Polyurethane Wheels. Renowned for durability and superior load-bearing capabilities, these casters are ideal for both industrial and commercial applications. The spring-loaded feature enhances shock absorption, ensuring smoother transport and reducing wear and tear on your equipment.

Experience Unmatched Durability with Hamilton Casters

Trusted by professionals worldwide, Hamilton's SPHS series promises longevity, sturdiness, and premium performance. Whether you're operating in a warehouse, manufacturing plant, or any other heavy-duty environment, our spring-loaded casters with 5" Duralast Polyurethane Wheels deliver every time.

Need Guidance? Hamilton's Caster Experts Are Here to Help

Are you considering the SPHS series for your industrial needs? Hamilton's dedicated team of Caster Experts is just a call away. Connect with us during business hours for advice, recommendations, and insights tailored to your specific requirements.
