5" Wheels

Made to Order · 4-6 Wk
450 lbs
Made in USA

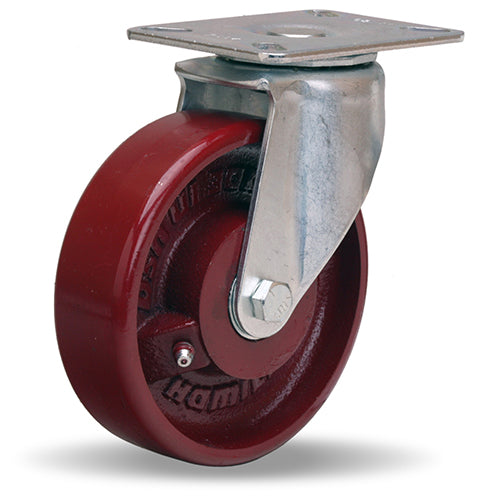

Hamilton S-HL-5M 5" x 1.5" Metal Swivel Caster – 450 lb
Part # S-HL-5M
$91.00 USD
Bulk Pricing
50+
5% off
100+
10% off
200+
15% off
Cast IronPlate
Load rating
450 lbs
Diameter 5"
Capacity 450 lbs
Wheel Cast Iron
Mount Plate
Plate Size 3-1/8" x 4-1/8"
More Details Less Details
Height 6.375"
Bolt Pattern 1-3/4" x 2-15/16" slotted to 2-3/8" x 3-3/8"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton S-HL-5M Hi-Lo Swivel Caster 450 lbs Load Capacity | 5" x 1 1/2"...
Made to Order · 4-6 Wk
450 lbs
Hamilton R-HL-5M Hi-Lo Rigid Caster, 5-Inch Metal Wheel, 450 lbs Load Capacity, 5/8-Inch Straight Roller Bearing - Durable Industrial Caster Hamilton
Made in USA
Hamilton R-HL-5M 5" x 1 1/2" Metal Rigid Caster – 450 lb
Part # R-HL-5M
$87.00 USD
Bulk Pricing
50+
5% off
100+
10% off
200+
15% off
Cast IronPlate
Load rating
450 lbs
Diameter 5"
Capacity 450 lbs
Wheel Cast Iron
Mount Plate
Plate Size 3-1/8" x 4-1/8"
More Details Less Details
Height 6.375"
Bolt Pattern 1-3/4" x 2-15/16" slotted to 2-3/8" x 3-3/8"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton R-HL-5M Hi-Lo Rigid Caster 450 lbs Load Capacity | 5" x 1 1/2"...

Hamilton Hi-Lo | HL Series Casters with 5" Metal Wheels

Robust 5" Metal Wheels | Industrial-Strength Construction

High-Performance and Durable Casters for Industrial Use

Explore the unparalleled performance of Hamilton Hi-Lo | HL Series Casters. Engineered for industrial applications, these casters feature 5-inch metal wheels designed for strength and durability. Ideal for heavy-duty environments, the HL Series ensures smooth mobility and reliable support.

Maximize Efficiency with Hamilton's Hi-Lo Casters

Boost your operational efficiency with Hamilton's HL Casters. Their exceptional load-bearing capacity and resistance to wear and tear make them a top choice for industrial settings. Experience a seamless combination of performance and durability with these premium-quality casters.

Expert Advice for Your Caster Needs

Unsure about the best caster solution for your application? Our Hamilton Caster Experts are ready to assist. Contact us weekdays from 8 am to 5 pm for professional advice and support in selecting the ideal caster for your industrial requirements.
