All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.






| Tread | Core | Wheel sizes | Rated per caster | Listed temperature | Where it fits |
|---|---|---|---|---|---|
| Polyurethane | 5 in | 400 to 770 lb | -5°F to 160°F | quiet, floor-friendly and long wearing | |
| Polyolefin | 5 in | 300 lb | wet and chemical areas, light to medium loads |
Ratings are for single casters of 5 in casters on a 2-1/2 x 3-5/8 in plate, from product fields [S1].
| Wheel | Treads | Rated |
|---|---|---|
| 5 x 1-1/4 in | polyurethane and polyolefin | 300 to 400 lb |

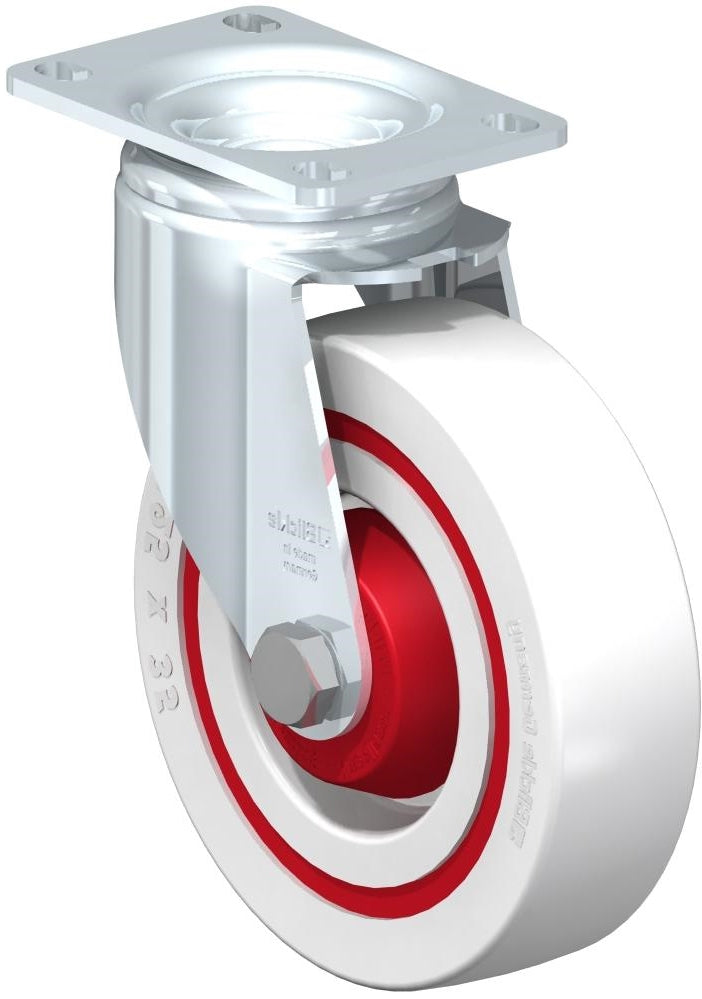

| 5 x 1-3/8 in | polyurethane | 770 lb |
| 5 x 1-7/16 in | 400 to 1,380 lb | |
| 5 x 1-9/16 in | polyurethane | 400 lb |
Related to 5 in casters on a 2-1/2 x 3-5/8 in plate: caster wheels.
Single 5 in casters on a 2-1/2 x 3-5/8 in plate are rated 300 to 1,380 lb.
Most 5 in casters on a 2-1/2 x 3-5/8 in plate use 2-1/2 x 3-5/8 in.
Polyurethane leads on 5 in casters on a 2-1/2 x 3-5/8 in plate, rated 400 to 770 lb per caster. Among 5 in casters on a 2-1/2 x 3-5/8 in plate, polyolefin is next at 300 lb.
