All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.
Custom made to order. All sales final.
Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.
Wheel = wheel diameter · capacity is per wheel.














| Tread | Core | Wheel sizes | Rated per wheel | Listed temperature | Where it fits |
|---|---|---|---|---|---|
| Cast iron | 6-1/8 in | 2,500 lb | -30°F to 320°F | heat, chips and heavy loads on rough floors | |
| Forged steel | 6-1/8 in | 4,500 lb | -30°F to 320°F | very high loads and impact |
Ratings are for single wheels of Hamilton 6-1â„8 in wheels, from product fields [S1].
| Wheel | Treads | Rated |
|---|---|---|
| 6-1/8 x 1-5/8 in | forged steel | 4,500 lb |

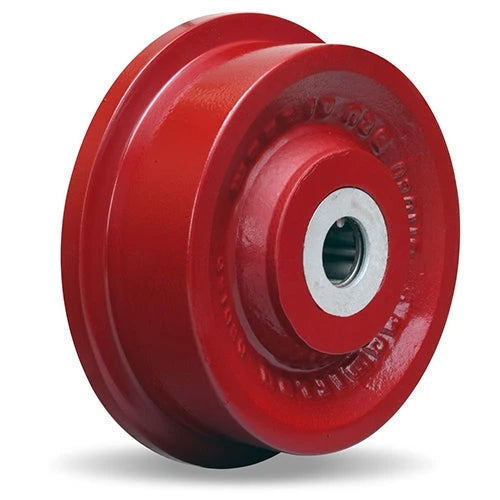

| 6-1/8 x 1-11/16 in | cast iron | 2,500 lb |
Related to Hamilton 6-1â„8 in wheels: caster wheels, 6-1/8 x 1-11/16 in cast iron wheels and 6-1/8 x 1-11/16 in cast iron wheels.
Single Hamilton 6-1â„8 in wheels are rated 2,500 to 4,500 lb; most fall between 2,500 and 4,500 lb.
Cast iron leads on Hamilton 6-1â„8 in wheels, rated 2,500 lb per wheel. Among Hamilton 6-1â„8 in wheels, forged steel is next at 4,500 lb.
Jordan Wilson, CasterHQ · reviewed October 20, 2026 · 844-439-4335 · info@casterhq.com
