6" x 2" Rubber Casters · 500-600 lb · 4" x 4-1/2" Plate · Brake

Diameter: 6 inTread: 2 inPlate: 4 x 4-1/2 inCapacity: 500 to 600 lb per caster
This page lists 6 x 2 in rubber casters. Rubber on polyolefin cores is the most common tread on these 6 x 2 in rubber casters, rated 500 to 600 lb per caster.
500 lbs
TieredPricing
6" x 2" Rigid Crowned Thermo Plastic Rubber Wheel | Rigid Caster | 4" x 4-1/2" Plate Size | 500 lbs Capacity CasterHQ
In Stock · Same/Next Day
6" x 2" Thermo Rubber Rigid Caster – 500 lb
Part # 30CR620DTR38X-03
from $29.00
Volume pricing available
Gray RubberPlate
Load rating
500 lbs
Size6" x 2"
Capacity500 lbs
WheelGray Rubber
MountPlate 4" x 4-1/2"
TypeRigid
More Details Less Details
Width 2"
Height 7-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Core Polyolefin
Temp Range -40°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
6" x 2" Rigid Crowned Thermo Plastic Rubber Wheel | Rigid Caster | 4"...
Shop Product
600 lbs
TieredPricing
6" x 2" Rigid Flat Tread Thermo Plastic Rubber Wheel | Rigid Caster | 4" x 4-1/2" Plate Size | 600 lbs Capacity CasterHQ
In Stock · Same/Next Day
6" x 2" Thermo Rubber Rigid Caster – 600 lb
Part # 30CR620PPR84X-03
from $31.00
Volume pricing available
Gray RubberPlate
Load rating
600 lbs
Size6" x 2"
Capacity600 lbs
WheelGray Rubber
MountPlate 4" x 4-1/2"
TypeRigid
More Details Less Details
Width 2"
Height 7-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Core Polyolefin
Temp Range -40°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
6" x 2" Rigid Flat Tread Thermo Plastic Rubber Wheel | Rigid Caster |...
Shop Product
600 lbs
TieredPricing
6" x 2" Swivel with Brake | Flat Tread Thermo Plastic Rubber Wheel | Swivel Caster | 4" x 4-1/2" Plate Size | 600 lbs Capacity CasterHQ
In Stock · Same/Next Day
6" x 2" Thermo Plastic Rubber Swivel Caster with Brake – 600 lb
Part # 30TS620PPR57X-03
from $42.00
Volume pricing available
Gray RubberPlate
Load rating
600 lbs
Size6" x 2"
Capacity600 lbs
WheelGray Rubber
MountPlate 4" x 4-1/2"
TypeSwivel with Brake · Side Lock Brake
More Details Less Details
Width 2"
Height 7-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Core Polyolefin
Temp Range -40°F to 180°F
Rig Type Swivel with Brake
Brake Side Lock Brake
Frame Zinc Plated Steel
6" x 2" Swivel with Brake | Flat Tread Thermo Plastic Rubber Wheel |...
Shop Product
500 lbs
TieredPricing
6" x 2" Crowned Thermo Plastic Rubber Wheel - Swivel Caster - 4" x 4-1/2" Plate Size - 500 lbs Capacity CasterHQ
In Stock · Same/Next Day
6" x 2" Thermo Rubber Swivel Caster – 500 lb
Part # 30CS620DTR38X-03
from $34.00
Volume pricing available
Gray RubberPlate
Load rating
500 lbs
Size6" x 2"
Capacity500 lbs
WheelGray Rubber
MountPlate 4" x 4-1/2"
TypeSwivel
More Details Less Details
Width 2"
Height 7-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Core Polyolefin
Temp Range -40°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
6" x 2" Crowned Thermo Plastic Rubber Wheel - 4" x 4-1/2" Plate Size...
Shop Product
600 lbs
TieredPricing

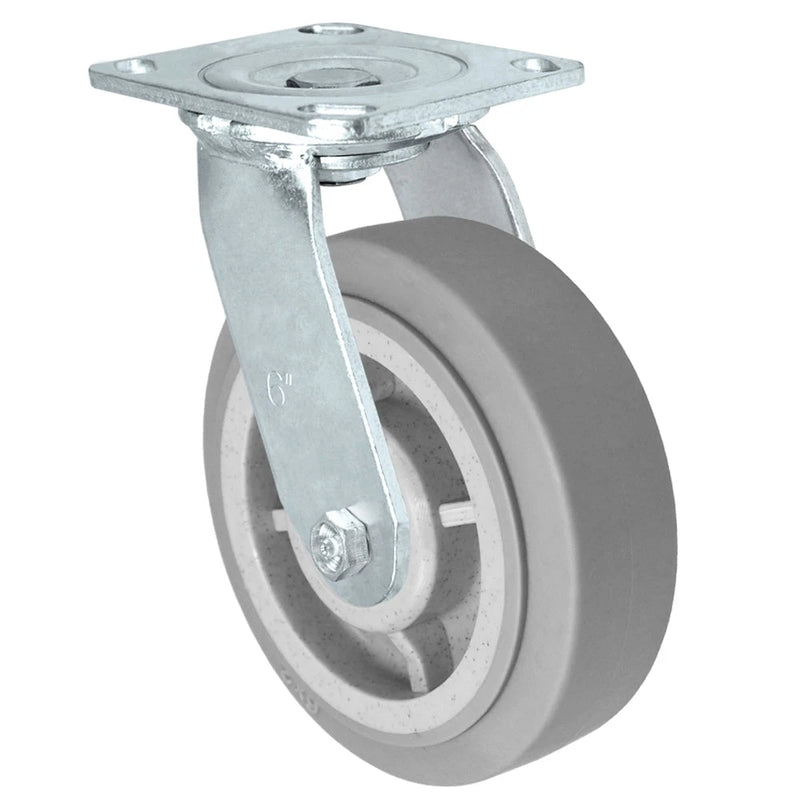

6" x 2" Swivel Flat Tread Thermo Plastic Rubber Wheel | Swivel Caster | 4" x 4-1/2" Plate Size | 600 lbs Capacity CasterHQ
In Stock · Same/Next Day
6" x 2" Thermo Rubber Swivel Caster – 600 lb
Part # 30CS620PPR57X-03
from $34.00
Volume pricing available
Gray RubberPlate
Load rating
600 lbs
Size6" x 2"
Capacity600 lbs
WheelGray Rubber
MountPlate 4" x 4-1/2"
TypeSwivel
More Details Less Details
Width 2"
Height 7-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Core Polyolefin
Temp Range -40°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
6" x 2" Swivel Flat Tread Thermo Plastic Rubber Wheel | Swivel Caster |...
Shop Product

6 x 2 in rubber casters by tread

Tread Core Wheel sizes Rated per caster Listed temperature Where it fits
Rubber Polyolefin 6 in 500 to 600 lb -40°F to 180°F cushioned and quiet on finished floors

Ratings are for single casters of 6 x 2 in rubber casters, from product fields [S1].

Choosing 6 x 2 in rubber casters

  1. Load: divide the loaded weight by three for a four-caster cart [S2]; at 600 lb each, 6 x 2 in rubber casters suit a loaded cart of about 1,800 lb.
  2. Mount: most 6 x 2 in rubber casters use a 4 x 4-1/2 in top plate; match the bolt holes on your frame to the plate before ordering.
  3. Floor: on 6 x 2 in rubber casters, rubber protects finished floors and runs quietly; check the rating if the cart also crosses rough concrete.
  4. Rig: swivel and rigid 6 x 2 in rubber casters are listed, with side lock brake options.

Related to 6 x 2 in rubber casters: thermo rubber wheels.

6 x 2 in rubber casters questions

How much weight can 6 x 2 in rubber casters carry?

Single 6 x 2 in rubber casters are rated 500 to 600 lb.

What top plate do 6 x 2 in rubber casters use?

Most 6 x 2 in rubber casters use 4 x 4-1/2 in.

What wheel material is most common on 6 x 2 in rubber casters?

Rubber leads on 6 x 2 in rubber casters, rated 500 to 600 lb per caster.

Jordan Wilson, CasterHQ · reviewed October 20, 2026 · 844-439-4335 · info@casterhq.com

Sources

  • [S1] CasterHQ product fields (rated load, diameter, width, wheel and core material, temperature range, mount) and product descriptions for the items on this page, pulled October 20, 2026.
  • [S2] Preferred Equipment casters and wheels quick guide PDF (prefeq.com): load sizing on one less caster, wheel types and floor notes.
