6" x 3" Casters

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Diameter: 6 inTread: 2-1/2 to 3 inCapacity: 800 to 1,500 lb per casterPlate sizes: 5-1/4 x 7-1/4
The eight polyurethane casters here come from Hamilton with 6 in wheels, rated 800 to 1,500 lb each. All mount on a 5-1/4 x 7-1/4 in plate, with swivel and rigid versions, and none has a brake. Picks range from a Hamilton S-SPCH-63DB-1 6 x 3 in Duralast swivel spring loaded caster rated 800 lb to a Hamilton S-SPCH-6DB-2 6 x 2 1/2 in Duralast swivel spring loaded caster rated 1,500 lb.
1500 lbs
TieredPricing

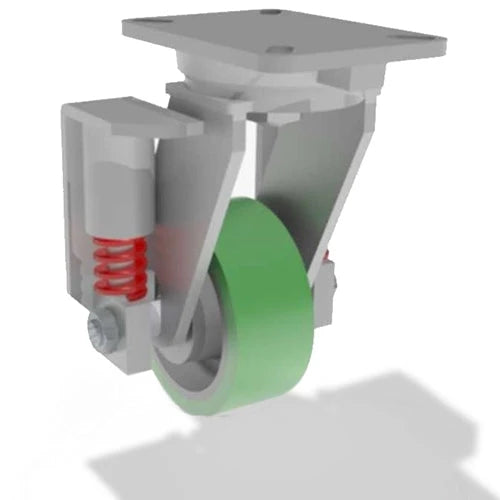

Hamilton S-SPCH-6DB-2: 6" Duralast Polyurethane Swivel Caster with Precision Bearing - Spring Loaded Champion Hamilton
Made to Order · 4-6 Wk
Hamilton S-SPCH-6DB-2 6" x 2 1/2" Duralast Swivel Spring Loaded Caster – 1500 lb
Part # S-SPCH-6DB-2
$1,110.00
Volume pricing available
PolyurethanePlate
Load rating
1500 lbs
Size6" x 2-1/2"
Capacity1500 lbs
WheelPolyurethane
MountPlate 5-1/4" x 7-1/4"
TypeSwivel
More Details Less Details
Width 2-1/2"
Height 11-1/4"
Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -5°F to 160°F
Rig Type Swivel
Brake No Brake
Frame Platinum Powder
Hamilton S-SPCH-6DB-2: Spring Loaded Champion Swivel Caster 6" x 2 1/2" Duralast Polyurethane Wheel...
Shop Product
800 lbs
TieredPricing
Hamilton S-SPCH-6DB-1 Swivel Caster - 6" Duralast Polyurethane on Cast Iron Wheel - 3/4" Precision Bearing - Spring Loaded Champion Hamilton
Made to Order · 4-6 Wk
Hamilton S-SPCH-6DB-1 6" x 2 1/2" Duralast Swivel Spring Loaded Caster – 800 lb
Part # S-SPCH-6DB-1
$1,177.00
Volume pricing available
PolyurethanePlate
Load rating
800 lbs
Size6" x 2-1/2"
Capacity800 lbs
WheelPolyurethane
MountPlate 5-1/4" x 7-1/4"
TypeSwivel
More Details Less Details
Width 2-1/2"
Height 11-1/4"
Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -5°F to 160°F
Rig Type Swivel
Brake No Brake
Frame Platinum Powder
Hamilton Spring Loaded Champion Swivel Caster S-SPCH-6DB-1: Durable & Efficient Experience the perfect blend...
Shop Product
1500 lbs
TieredPricing

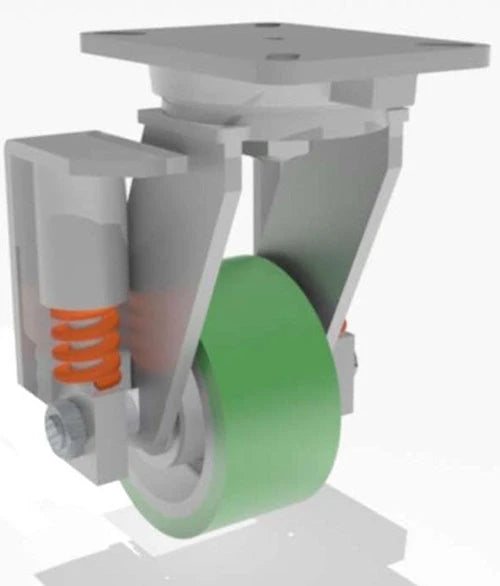

Hamilton 6" x 3" Spring Loaded Champion Swivel Caster - Duralast Polyurethane on Cast Iron with 3/4" Precision Ball Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton 6" x 3" Duralast Swivel Spring Loaded Caster – 1500 lb
Part # S-SPCH-63DB-2
$973.00
Volume pricing available
PolyurethanePlate
Load rating
1500 lbs
Size6" x 3"
Capacity1500 lbs
WheelPolyurethane
MountPlate 5-1/4" x 7-1/4"
TypeSwivel
More Details Less Details
Width 3"
Height 11-1/4"
Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -5°F to 160°F
Rig Type Swivel
Brake No Brake
Frame Platinum Powder
Hamilton Spring Loaded Champion Swivel Caster - 6" x 3" Duralast Polyurethane on Cast...
Shop Product
800 lbs
TieredPricing
Hamilton S-SPCH-63DB-1 Champion Swivel Caster - 6" x 3" Duralast Polyurethane Wheel with 3/4" Precision Ball Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton S-SPCH-63DB-1 6" x 3" Duralast Swivel Spring Loaded Caster – 800 lb
Part # S-SPCH-63DB-1
$1,032.00
Volume pricing available
PolyurethanePlate
Load rating
800 lbs
Size6" x 3"
Capacity800 lbs
WheelPolyurethane
MountPlate 5-1/4" x 7-1/4"
TypeSwivel
More Details Less Details
Width 3"
Height 11-1/4"
Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -5°F to 160°F
Rig Type Swivel
Brake No Brake
Frame Platinum Powder
Hamilton S-SPCH-63DB-1 Spring Loaded Champion Swivel Caster 6" x 3" Duralast Polyurethane Wheel |...
Shop Product
1500 lbs
TieredPricing
Hamilton R-SPCH-6DB-2: 6" Duralast Polyurethane Rigid Caster with Precision Bearing - Spring Loaded Champion Hamilton
Made to Order · 4-6 Wk
Hamilton R-SPCH-6DB-2 6" x 2-1/2" Duralast Rigid Spring Loaded Caster – 1500 lb
Part # R-SPCH-6DB-2
$956.00
Volume pricing available
PolyurethanePlate
Load rating
1500 lbs
Size6" x 2-1/2"
Capacity1500 lbs
WheelPolyurethane
MountPlate 5-1/4" x 7-1/4"
TypeRigid
More Details Less Details
Width 2-1/2"
Height 11-1/4"
Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -5°F to 160°F
Rig Type Rigid
Brake No Brake
Frame Platinum Powder
Hamilton R-SPCH-6DB-2: Spring Loaded Champion Rigid Caster 6" x 2 1/2" Duralast Polyurethane Wheel...
Shop Product
800 lbs
TieredPricing

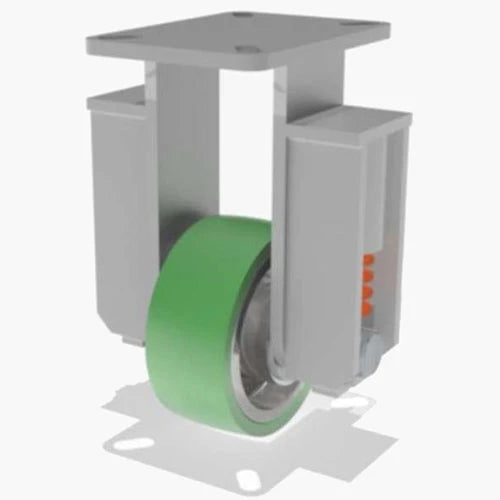

Hamilton R-SPCH-6DB-1 Rigid Caster - 6" Duralast Polyurethane on Cast Iron Wheel - 3/4" Precision Bearing - Spring Loaded Champion Hamilton
Made to Order · 4-6 Wk
Hamilton R-SPCH-6DB-1 6" x 2 1/2" Duralast Rigid Spring Loaded Caster – 800 lb
Part # R-SPCH-6DB-1
$893.00
Volume pricing available
PolyurethanePlate
Load rating
800 lbs
Size6" x 2-1/2"
Capacity800 lbs
WheelPolyurethane
MountPlate 5-1/4" x 7-1/4"
TypeRigid
More Details Less Details
Width 2-1/2"
Height 11-1/4"
Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -5°F to 160°F
Rig Type Rigid
Brake No Brake
Frame Platinum Powder
Hamilton Spring Loaded Champion Rigid Caster R-SPCH-6DB-1: Durable & Efficient Experience the perfect blend...
Shop Product
1500 lbs
TieredPricing

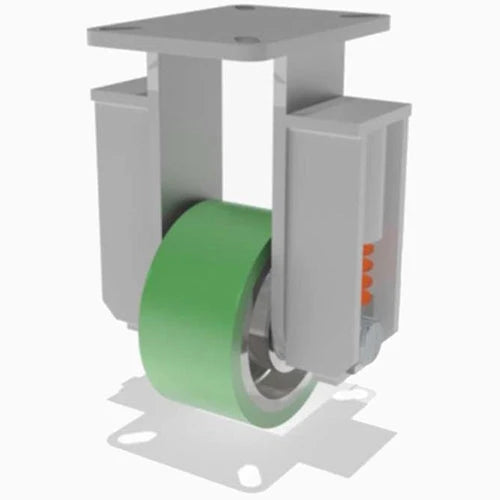

Hamilton 6" x 3" Spring Loaded Champion Rigid Caster - Duralast Polyurethane on Cast Iron with 3/4" Precision Ball Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton 6" x 3" Duralast Rigid Spring Loaded Caster – 1500 lb
Part # R-SPCH-63DB-2
$843.00
Volume pricing available
PolyurethanePlate
Load rating
1500 lbs
Size6" x 3"
Capacity1500 lbs
WheelPolyurethane
MountPlate 5-1/4" x 7-1/4"
TypeRigid
More Details Less Details
Width 3"
Height 11-1/4"
Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -5°F to 160°F
Rig Type Rigid
Brake No Brake
Frame Platinum Powder
Hamilton Spring Loaded Champion Rigid Caster - 6" x 3" Duralast Polyurethane on Cast...
Shop Product
800 lbs
TieredPricing
Hamilton R-SPCH-63DB-1 Champion Rigid Caster - 6" x 3" Duralast Polyurethane Wheel with 3/4" Precision Ball Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton R-SPCH-63DB-1 6" x 3" Duralast Rigid Spring Loaded Caster – 800 lb
Part # R-SPCH-63DB-1
$796.00
Volume pricing available
PolyurethanePlate
Load rating
800 lbs
Size6" x 3"
Capacity800 lbs
WheelPolyurethane
MountPlate 5-1/4" x 7-1/4"
TypeRigid
More Details Less Details
Width 3"
Height 11-1/4"
Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -5°F to 160°F
Rig Type Rigid
Brake No Brake
Frame Platinum Powder
Hamilton R-SPCH-63DB-1 Spring Loaded Champion Rigid Caster 6" x 3" Duralast Polyurethane Wheel |...
Shop Product

Hamilton Spring Loaded | SPCH Casters with 6" Duralast Polyurethane Wheels

6" Premium Duralast Polyurethane Wheel | Spring Loaded for Optimal Shock Absorption

High-Quality Spring Loaded Casters from Hamilton

Discover the Hamilton SPCH Spring Loaded Casters with top-grade 6" Duralast Polyurethane Wheels. Perfectly designed for dynamic loads and challenging terrains, these casters promise unmatched durability and smooth maneuverability. Hamilton’s expertise in caster technology guarantees the resilience and longevity of this product, making it ideal for both industrial and commercial applications.

Experience Unparalleled Mobility with Hamilton's SPCH Casters

Why choose Hamilton's Spring Loaded Casters? Engineered for exceptional performance, the SPCH series ensures minimal maintenance and maximum operational efficiency. The 6" Duralast Polyurethane Wheels are known for their long-lasting resilience. With Hamilton, enjoy the best in caster technology for your business.

Need Assistance? Hamilton's Caster Experts Are Here To Help!

Contemplating the SPCH Spring Loaded Casters for your setup? Our team of dedicated Caster Specialists is ready to assist you. Get expert advice and solutions tailored to your needs. Contact us weekdays between 8 am - 5 pm.
