The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

Under 350 lbs. each
351–675 lbs. each
676–1,250 lbs. each
1,251–2,000 lbs. each
2,001–4,000 lbs. each
4,001–7,500 lbs. each
7,501–10,000 lbs. each
10,001–15,000 lbs. each
15,001–20,000 lbs. each
20,001–30,000 lbs. each
30,000+ lbs. each

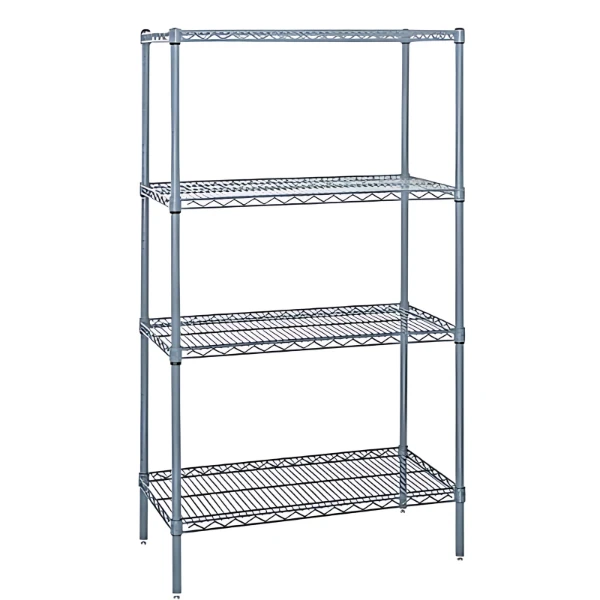

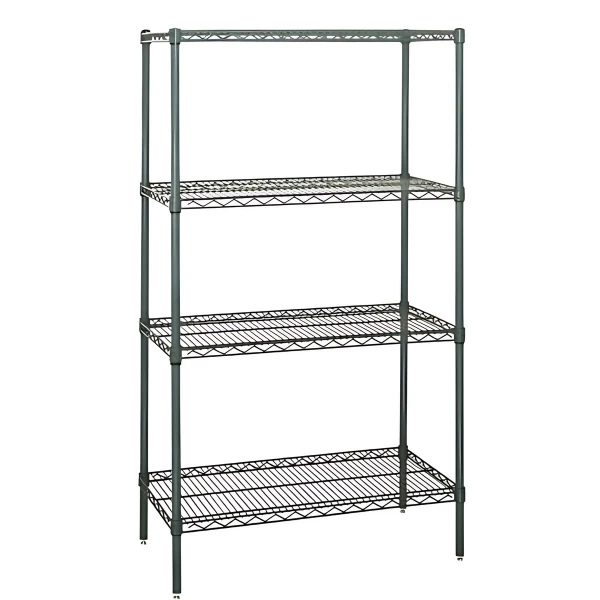

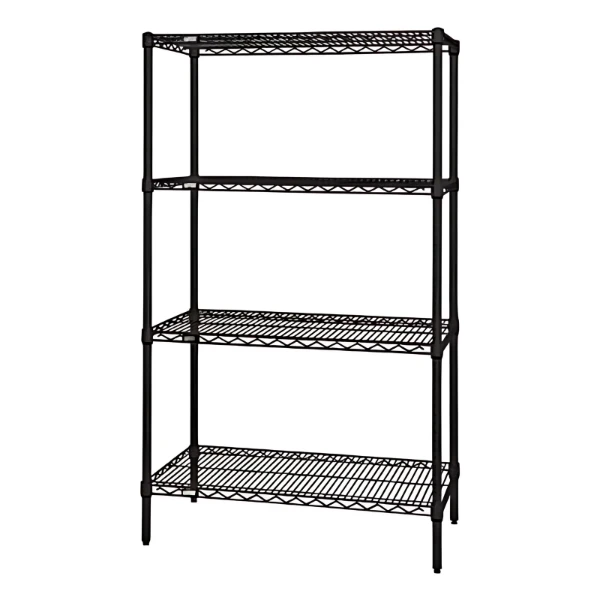

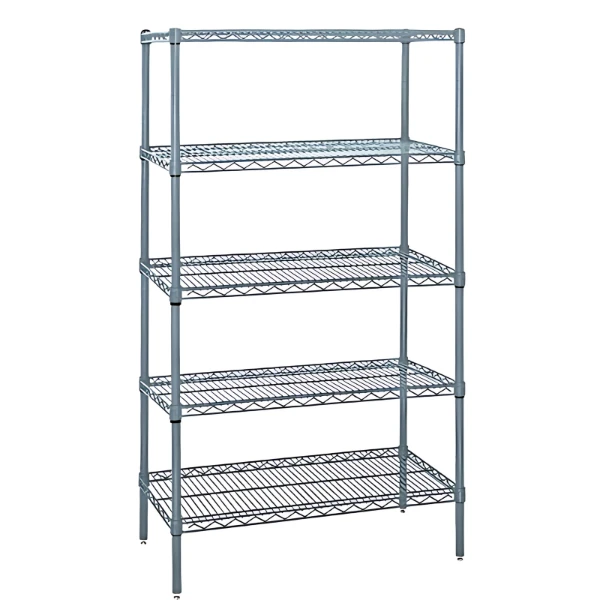

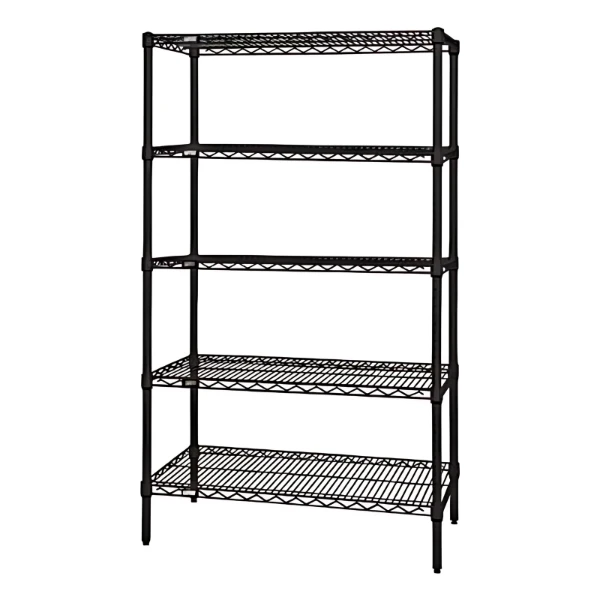

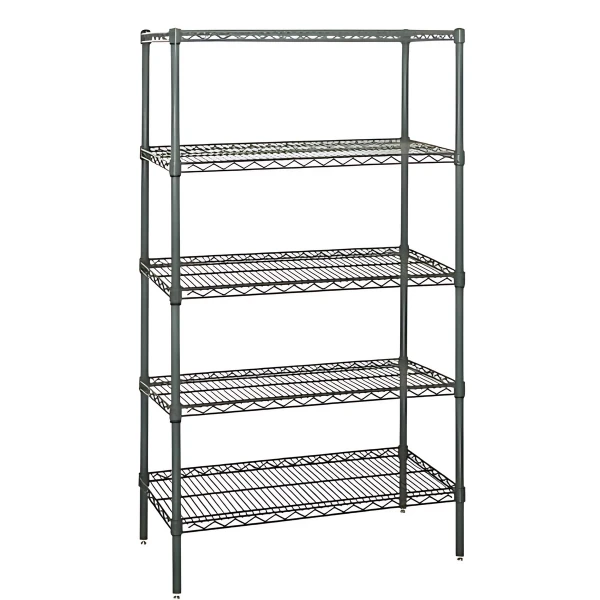

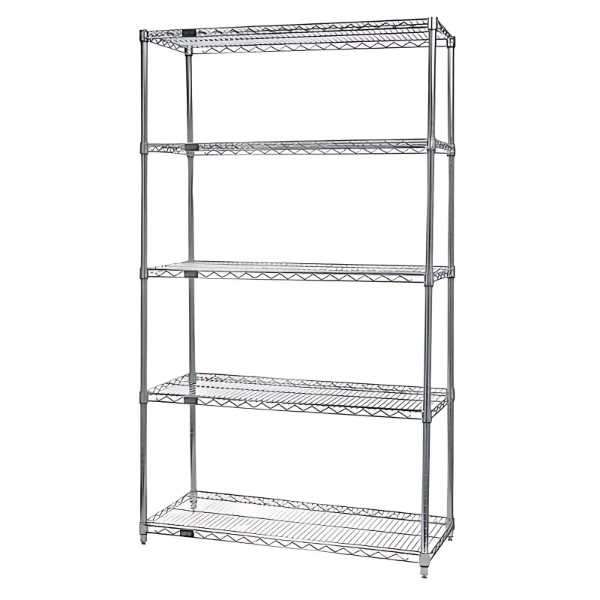

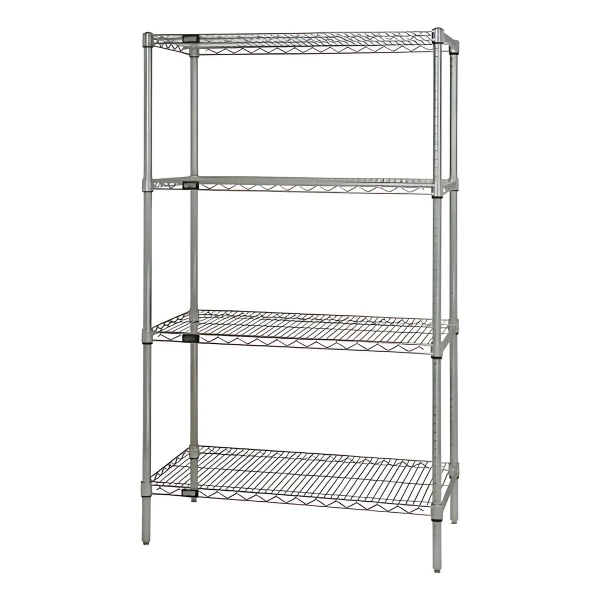

72" Shelving Units · 600 lb

Capacity: up to 600 lb

72" Shelving Units · 600 lb for light institutional and furniture-grade frames. Typical builds show plate-mount frames and capacities 600 lb. For dual-wheel or wide treads, check fork clearance and swivel radius in tight aisles. Size capacity from the heaviest corner load with shock margin, and keep overall height consistent across the set. These light-duty options cover everyday light institutional and furniture-grade frames without jumping to extreme forged series.
