8" x 2" Rubber Casters · 600 lb · 4" x 4-1/2" Plate · Brake

Diameter: 8 inTread: 2 inPlate: 4 x 4-1/2 inCapacity: 600 lb per caster
This page lists 8 x 2 in rubber casters. Rubber on polyolefin cores is the most common tread on these 8 x 2 in rubber casters, rated 600 lb per caster.
600 lbs
TieredPricing
8" x 2" Crowned Thermo Plastic Rubber Wheel - Rigid Caster - 4" x 4-1/2" Plate Size - 600 lbs Capacity CasterHQ
In Stock · Same/Next Day
8" x 2" Thermo Rubber Rigid Caster – 600 lb
Part # 30CR820DTR38X-03
from $36.00
Volume pricing available
Gray RubberPlate
Load rating
600 lbs
Size8" x 2"
Capacity600 lbs
WheelGray Rubber
MountPlate 4" x 4-1/2"
TypeRigid
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Core Polyolefin
Temp Range -40°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
8" x 2" Crowned Thermo Plastic Rubber Wheel - Rigid Caster - 4" x...
Shop Product
600 lbs
TieredPricing
8" x 2" Swivel Caster | Crowned Thermo Plastic Rubber Wheel | 4" x 4-1/2" Plate Size | 600 lbs Capacity CasterHQ
In Stock · Same/Next Day
8" x 2" Thermo Rubber Swivel Caster – 600 lb
Part # 30CS820DTR38X-03
from $42.00
Volume pricing available
Gray RubberPlate
Load rating
600 lbs
Size8" x 2"
Capacity600 lbs
WheelGray Rubber
MountPlate 4" x 4-1/2"
TypeSwivel
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Core Polyolefin
Temp Range -40°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
8" x 2" Swivel Caster | Crowned Thermo Plastic Rubber Wheel | 4" x...
Shop Product
600 lbs
TieredPricing
8" x 2" Rigid Caster | Flat Tread Thermo Plastic Rubber Wheel | 4" x 4-1/2" Plate Size | 600 lbs Capacity CasterHQ
In Stock · Same/Next Day
8" x 2" Thermo Rubber Rigid Caster – 600 lb
Part # 30CR820PPR84X-03
from $38.00
Volume pricing available
Gray RubberPlate
Load rating
600 lbs
Size8" x 2"
Capacity600 lbs
WheelGray Rubber
MountPlate 4" x 4-1/2"
TypeRigid
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Core Polyolefin
Temp Range -40°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
8" x 2" Rigid Caster | Flat Tread Thermo Plastic Rubber Wheel | 4"...
Shop Product
600 lbs
TieredPricing
8" x 2" Swivel Caster with Brake | Flat Tread Thermo Plastic Rubber Wheel | 4" x 4-1/2" Plate Size | 600 lbs Capacity CasterHQ
In Stock · Same/Next Day
8" x 2" Thermo Rubber Swivel Caster with Brake – 600 lb
Part # 30TS820PPR84X-03
from $51.00
Volume pricing available
Gray RubberPlate
Load rating
600 lbs
Size8" x 2"
Capacity600 lbs
WheelGray Rubber
MountPlate 4" x 4-1/2"
TypeSwivel with Brake · Side Lock Brake
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Core Polyolefin
Temp Range -40°F to 180°F
Rig Type Swivel with Brake
Brake Side Lock Brake
Frame Zinc Plated Steel
8" x 2" Swivel Caster with Brake | Flat Tread Thermo Plastic Rubber Wheel...
Shop Product
600 lbs
TieredPricing

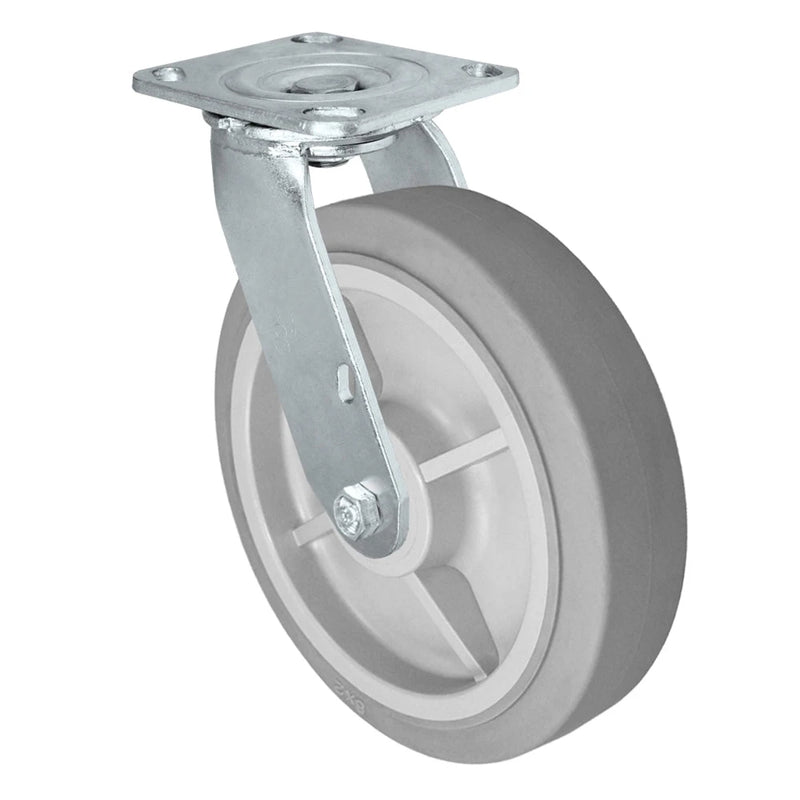

8" x 2" Swivel Caster | Flat Tread Thermo Plastic Rubber Wheel | 4" x 4-1/2" Plate Size | 600 lbs Capacity CasterHQ
In Stock · Same/Next Day
8" x 2" Thermo Rubber Swivel Caster – 600 lb
Part # HQ2080S-PL1-TPR
from $33.00
Volume pricing available
Gray RubberPlate
Load rating
600 lbs
Size8" x 2"
Capacity600 lbs
WheelGray Rubber
MountPlate 4" x 4-1/2"
TypeSwivel
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-5/8" x 3-5/8"
Core Polyolefin
Temp Range -40°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
8" x 2" Swivel Caster | Flat Tread Thermo Plastic Rubber Wheel | 4"...
Shop Product

8 x 2 in rubber casters by tread

Tread Core Wheel sizes Rated per caster Listed temperature Where it fits
Rubber Polyolefin 8 in 600 lb -40°F to 180°F cushioned and quiet on finished floors

Ratings are for single casters of 8 x 2 in rubber casters, from product fields [S1].

Choosing 8 x 2 in rubber casters

  1. Load: plan on three casters carrying a four-caster cart [S2]; 8 x 2 in rubber casters rated 600 lb each then carry about 1,800 lb.
  2. Mount: most 8 x 2 in rubber casters use a 4 x 4-1/2 in top plate; measure bolt hole centers on the old plate and compare.
  3. Floor: on 8 x 2 in rubber casters, rubber protects finished floors and runs quietly; check the rating if the cart also crosses rough concrete.
  4. Rig: swivel and rigid 8 x 2 in rubber casters are listed, with side lock brake options.

Related to 8 x 2 in rubber casters: thermo rubber wheels.

8 x 2 in rubber casters questions

How much weight can 8 x 2 in rubber casters carry?

Single 8 x 2 in rubber casters are rated 600 lb.

What top plate do 8 x 2 in rubber casters use?

Most 8 x 2 in rubber casters use 4 x 4-1/2 in.

What wheel material is most common on 8 x 2 in rubber casters?

Rubber leads on 8 x 2 in rubber casters, rated 600 lb per caster.

Jordan Wilson, CasterHQ · reviewed October 20, 2026 · 844-439-4335 · info@casterhq.com

Sources

  • [S1] CasterHQ product fields (rated load, diameter, width, wheel and core material, temperature range, mount) and product descriptions for the items on this page, pulled October 20, 2026.
  • [S2] Preferred Equipment casters and wheels quick guide PDF (prefeq.com): load sizing on one less caster, wheel types and floor notes.
