8" x 2" Polyurethane Casters

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Diameter: 8 inTread: 2 inCapacity: 620 to 1,050 lb per casterPlate sizes: 4 x 4-1/2, 4 x 5
This page lists four polyurethane casters with 8 in wheels, rated 620 to 1,050 lb each, made by Hamilton. The common top plate is 4 x 4-1/2 in, with 4 x 5 in also offered, with swivel and rigid versions and without brakes. Examples include a Hamilton R-SPWH-8DB-1 8 x 2 in polyurethane rigid spring loaded caster rated 620 lb and a Hamilton 8 in Duralast polyurethane swivel spring loaded caster rated 1,050 lb.
1050 lbs
TieredPricing
Hamilton 8" Swivel Caster Wheel - 1050 lbs Load Capacity - Spring Loaded Workhorse - Duralast Polyurethane on Cast Iron - 1/2" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton 8" Duralast Polyurethane Swivel Spring Loaded Caster – 1050 lb
Part # S-SPWH-8DB-2
$670.00
Volume pricing available
PolyurethanePlate
Load rating
1050 lbs
Size8" x 2"
Capacity1050 lbs
WheelPolyurethane
MountPlate 4" x 5"
TypeSwivel
More Details Less Details
Width 2"
Height 10-3/16"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Cast Iron
Temp Range -5°F to 160°F
Rig Type Swivel
Brake No Brake
Frame Platinum Powder
Hamilton 8" Spring Loaded Workhorse Swivel Caster Wheel Maximum Durability & Performance | 1050...
Shop Product
620 lbs
TieredPricing
8" Hamilton Spring Loaded Swivel Caster - 620 lbs Load Capacity, Duralast Polyurethane on Cast Iron Wheel, 1/2" Sealed Precision Ball Bearings - S-SPWH-8DB-1 Hamilton
Made to Order · 4-6 Wk
Hamilton S-SPWH-8DB-1 8" x 2" Duralast Swivel Spring Loaded Caster – 620 lb
Part # S-SPWH-8DB-1
from $540.00
Volume pricing available
PolyurethanePlate
Load rating
620 lbs
Size8" x 2"
Capacity620 lbs
WheelPolyurethane
MountPlate 4" x 5"
TypeSwivel
More Details Less Details
Width 2"
Height 10-3/16"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Cast Iron
Temp Range -5°F to 160°F
Rig Type Swivel
Brake No Brake
Frame Platinum Powder
8" Hamilton Spring Loaded Swivel Caster - Model S-SPWH-8DB-1 620 lbs Load Capacity |...
Shop Product
1050 lbs
TieredPricing

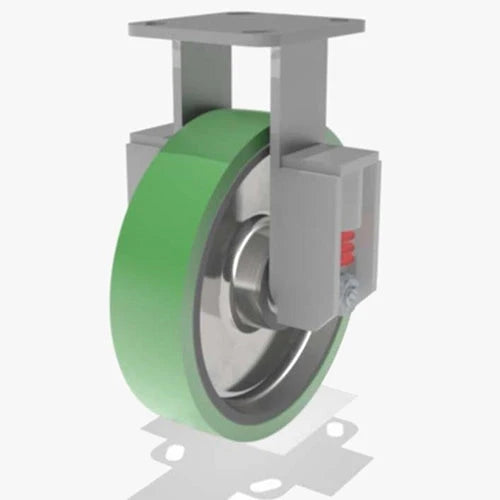

Hamilton 8" Rigid Caster Wheel - 1050 lbs Load Capacity - Spring Loaded Workhorse - Duralast Polyurethane on Cast Iron - 1/2" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton 8" Duralast Polyurethane Rigid Spring Loaded Caster – 1050 lb
Part # R-SPWH-8DB-2
$638.00
Volume pricing available
PolyurethanePlate
Load rating
1050 lbs
Size8" x 2"
Capacity1050 lbs
WheelPolyurethane
MountPlate 4" x 4-1/2"
TypeRigid
More Details Less Details
Width 2"
Height 10-3/16"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Cast Iron
Temp Range -5°F to 160°F
Rig Type Rigid
Brake No Brake
Frame Platinum Powder
Hamilton 8" Spring Loaded Workhorse Rigid Caster Wheel Maximum Durability & Performance | 1050...
Shop Product
620 lbs
TieredPricing
8" Hamilton Spring Loaded Rigid Caster - 620 lbs Load Capacity, Duralast Polyurethane on Cast Iron Wheel, 1/2" Sealed Precision Ball Bearings - R-SPWH-8DB-1 Hamilton
Made to Order · 4-6 Wk
Hamilton R-SPWH-8DB-1 8" x 2" Polyurethane Rigid Spring Loaded Caster – 620 lb
Part # R-SPWH-8DB-1
$496.00
Volume pricing available
PolyurethanePlate
Load rating
620 lbs
Size8" x 2"
Capacity620 lbs
WheelPolyurethane
MountPlate 4" x 4-1/2"
TypeRigid
More Details Less Details
Width 2"
Height 10-3/16"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Cast Iron
Temp Range -5°F to 160°F
Rig Type Rigid
Brake No Brake
Frame Platinum Powder
8" Hamilton Spring Loaded Rigid Caster - Model R-SPWH-8DB-1 620 lbs Load Capacity |...
Shop Product

Hamilton Spring Loaded | SPWH Casters with 8" Duralast Polyurethane Wheels

8" Premium Duralast Polyurethane Wheels | Spring-Loaded for Enhanced Maneuverability

High-Quality and Reliable Hamilton Spring Loaded Casters

Explore the efficiency of the Hamilton Spring Loaded SPWH Casters fitted with industry-leading 8" Duralast Polyurethane Wheels. Renowned for durability and superior load-bearing capabilities, these casters are ideal for both industrial and commercial applications. The spring-loaded feature enhances shock absorption, ensuring smoother transport and reducing wear and tear on your equipment.

Experience Unmatched Durability with Hamilton Casters

Trusted by professionals worldwide, Hamilton's SPWH series promises longevity, sturdiness, and premium performance. Whether you're operating in a warehouse, manufacturing plant, or any other heavy-duty environment, our spring-loaded casters with 8" Duralast Polyurethane Wheels deliver every time.

Need Guidance? Hamilton's Caster Experts Are Here to Help

Are you considering the SPWH series for your industrial needs? Hamilton's dedicated team of Caster Experts is just a call away. Connect with us during business hours for advice, recommendations, and insights tailored to your specific requirements.
