Hamilton Spring Loaded SPHS Casters w/ Ergo-Glide Wheels · 8" Wheels · Up to 1,200 lb

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Diameter: 8 inTread: 2 inCapacity: 620 to 1,200 lb per casterPlate sizes: 4-1/2 x 6-1/2

You get four casters here from Hamilton with 8 in wheels, rated 620 to 1,200 lb each. All mount on a 4-1/2 x 6-1/2 in plate, and you can pick swivel or rigid and without brakes. Examples include a Hamilton 8 x 2 in Plastex phenolic rigid spring loaded caster rated 620 lb and a Hamilton S-SPHS-8SPB-2 8 x 2 in Ergo-Glide swivel spring loaded caster rated 1,200 lb. Temperature ratings sit at Up to 250°F for most of the page.

1200 lbs

TieredPricing

Hamilton S-SPHS-8SPB-2 Heavy Service Swivel Caster - 8" x 2" Ergo-Glide Polyurethane Wheel on Cast Iron with 1/2" Sealed Precision Ball Bearings for Industrial Applications Hamilton

Made to Order · 4-6 Wk

Hamilton S-SPHS-8SPB-2 8" x 2" Ergo-Glide Swivel Spring Loaded Caster

Part # S-SPHS-8SPB-2

from $676.00

Volume pricing available

PolyurethanePlate

Load rating

1200 lbs

Size8" x 2"

Capacity1200 lbs

WheelPolyurethane

MountPlate 4-1/2" x 6-1/2"

TypeSwivel

More Details Less Details

Width 2"

Height 10-3/16"

Bolt Pattern 2-3/8" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Swivel

Brake No Brake

Frame Crimson Powder

Hamilton S-SPHS-8SPB-2 Heavy Service Swivel Caster 8" x 2" Ergo-Glide Polyurethane Wheel | 1/2"...

Shop Product

620 lbs

TieredPricing

Hamilton Heavy-Duty Swivel Caster - 8" x 2" Ergo-Glide Polyurethane Wheel with 1/2" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton S-SPHS-8SPB-1 8" x 2" Ergo-Glide Swivel Spring Loaded Caster – 620 lb

Part # S-SPHS-8SPB-1

from $689.00

Volume pricing available

PolyurethanePlate

Load rating

620 lbs

Size8" x 2"

Capacity620 lbs

WheelPolyurethane

MountPlate 4-1/2" x 6-1/2"

TypeSwivel

More Details Less Details

Width 2"

Height 10-3/16"

Bolt Pattern 2-3/8" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Swivel

Brake No Brake

Frame Crimson Powder

Hamilton Spring Loaded Heavy Service Swivel Caster 8" x 2" Ergo-Glide Polyurethane Wheel |...

Shop Product

1200 lbs

TieredPricing

Hamilton R-SPHS-8P-2 Spring Loaded Rigid Caster - 8" x 2" Plastex Phenolic Wheel with 3/4" Roller Bearing - Heavy Duty Industrial Use Hamilton

Made to Order · 4-6 Wk

Hamilton R-SPHS-8P-2 8" x 2" Plastex Phenolic Rigid Spring Loaded Caster

Part # R-SPHS-8P-2

from $546.00

Volume pricing available

PhenolicPlate

Load rating

1200 lbs

Size8" x 2"

Capacity1200 lbs

WheelPhenolic

MountPlate 4-1/2" x 6-1/2"

TypeRigid

More Details Less Details

Width 2"

Height 10-3/16"

Bolt Pattern 2-3/8" x 4-15/16" and 3-3/8" x 5-1/4"

Core Phenolic

Temp Range Up to 250°F

Rig Type Rigid

Brake No Brake

Frame Crimson Powder

R-SPHS-8P-2 Hamilton Spring Loaded Heavy Service Rigid Caster 8" x 2" Plastex Phenolic Wheel...

Shop Product

620 lbs

TieredPricing

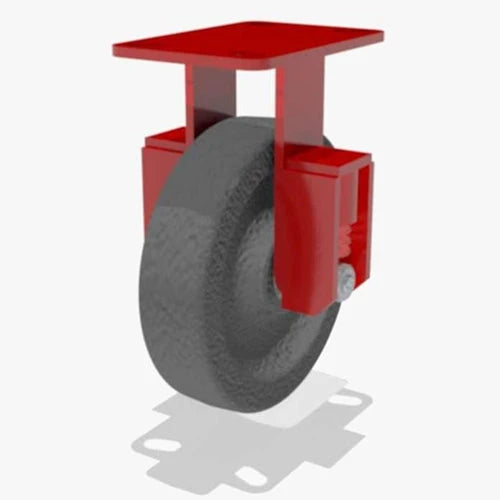

Hamilton 8" x 2" Spring Loaded Heavy Service Rigid Caster - Plastex Phenolic Wheel with 3/4" Straight Roller Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton 8" x 2" Plastex Phenolic Rigid Spring Loaded Caster – 620 lb

Part # R-SPHS-8P-1

from $470.00

Volume pricing available

PhenolicPlate

Load rating

620 lbs

Size8" x 2"

Capacity620 lbs

WheelPhenolic

MountPlate 4-1/2" x 6-1/2"

TypeRigid

More Details Less Details

Width 2"

Height 10-3/16"

Bolt Pattern 2-3/8" x 4-15/16" and 3-3/8" x 5-1/4"

Core Phenolic

Temp Range Up to 250°F

Rig Type Rigid

Brake No Brake

Frame Crimson Powder

Hamilton Spring Loaded Heavy Service Rigid Caster: 8" x 2" Plastex Phenolic Wheel Top...

Shop Product

Hamilton Spring Loaded SPWH Casters with 8" Ergo-Glide Wheels

Spring-Loaded Shock Absorption | 8" Premium Ergo-Glide Wheels

Revolutionary Spring Loaded Casters from Hamilton

Welcome the Hamilton Spring Loaded SPWH Casters – engineered specifically for superior shock absorption and weight distribution. Equipped with top-of-the-line 8" Ergo-Glide Wheels, these casters promise reduced floor wear, smoother transitions, and increased longevity. Ideal for e-commerce platforms, warehouses, and industrial setups prioritizing safety and efficiency.

Why Choose Hamilton's Ergo-Glide SPWH Casters?

Embrace the gold standard in mobility solutions with Hamilton's SPWH series. Offering unmatched durability, these spring-loaded casters ensure optimal weight distribution, reducing wear and tear. Trust in Hamilton, a renowned brand in caster innovation, for your e-commerce and industrial needs.

Need Assistance? Hamilton's Caster Experts Are Here For You

Considering the Hamilton Spring Loaded SPWH Casters for your facility? Get in touch with our team of Caster Experts available weekdays. Experience world-class support and make informed decisions for your e-commerce or industrial operations.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
