8" x 2" Stainless Steel Casters

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Diameter: 8 inTread: 2 inCapacity: 600 to 960 lb per casterPlate sizes: 4 x 4-1/2, 4 x 5
This page lists six cast iron casters with 8 in wheels, rated 600 to 960 lb each, made by Hamilton. Most use a 4 x 4-1/2 in top plate, with 4 x 5 in also offered, in both swivel and rigid, and none has a brake. Picks range from a Hamilton R-WHK-8HMB 8 x 2 in metal rigid caster rated 600 lb to a Hamilton S-52HK-8HMB 8 x 2 in metal swivel kingpinless caster rated 960 lb. Temperature ratings sit at Up to 750°F for most of the page.
600 lbs
TieredPricing
Hamilton S-WHS-8HMB Stainless Steel Swivel Caster - 8" x 2" Metal Wheel for High Heat (Up to 750° F) with Precision Ball Bearings - Industrial Grade Hamilton
Made to Order · 4-6 Wk
Hamilton S-WHS-8HMB 8" x 2" Metal Swivel Stainless Caster – 600 lb
Part # S-WHS-8HMB
from $704.00
Volume pricing available
Cast IronPlate
Load rating
600 lbs
Size8" x 2"
Capacity600 lbs
WheelCast Iron
MountPlate 4" x 5"
TypeSwivel
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Cast Iron
Temp Range Up to 750°F
Rig Type Swivel
Brake No Brake
Frame Stainless Steel
S-WHS-8HMB Hamilton Stainless Steel Workhorse Swivel Caster 8" x 2" Metal Wheel Rated up...
Shop Product
600 lbs
TieredPricing
Hamilton WHK Inferno Series 8" Metal Wheel Swivel Caster - High Heat 750° F Rated with Stainless Steel Bearings - S-WHK-8HMB Hamilton
Made to Order · 4-6 Wk
Hamilton S-WHK-8HMB 8" x 2" Metal Swivel Caster – 600 lb
Part # S-WHK-8HMB
from $480.00
Volume pricing available
Cast IronPlate
Load rating
600 lbs
Size8" x 2"
Capacity600 lbs
WheelCast Iron
MountPlate 4" x 5"
TypeSwivel
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Cast Iron
Temp Range Up to 750°F
Rig Type Swivel
Brake No Brake
Frame Steel, Black
S-WHK-8HMB Hamilton High Heat WHK Inferno Series Swivel Caster 8" x 2" Metal Wheel...
Shop Product
960 lbs
TieredPricing
Hamilton S-52HK-8HMB High Heat Kingpinless Swivel Caster - 8"x2" Metal Wheel Rated to 750°F with Precision Ball Bearings - Industrial Standard Duty Hamilton
Made to Order · 4-6 Wk
Hamilton S-52HK-8HMB 8" x 2" Metal Swivel Kingpinless Caster – 750° F
Part # S-52HK-8HMB
from $338.00
Volume pricing available
Cast IronPlate
Load rating
960 lbs
Size8" x 2"
Capacity960 lbs
WheelCast Iron
MountPlate 4" x 4-1/2"
TypeSwivel
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Cast Iron
Temp Range Up to 750°F
Rig Type Swivel
Brake No Brake
Frame Steel, Bright Zinc Plated
S-52HK-8HMB Hamilton High Heat Standard Duty Kingpinless Swivel Caster 8" x 2" Metal Wheel...
Shop Product
600 lbs
TieredPricing
Hamilton R-WHS-8HMB Stainless Steel Rigid Caster - 8" x 2" Metal Wheel for High Heat (Up to 750° F) with Precision Ball Bearings - Industrial Grade Hamilton
Made to Order · 4-6 Wk
Hamilton R-WHS-8HMB 8" x 2" Metal Rigid Stainless Caster – 750° F
Part # R-WHS-8HMB
from $386.00
Volume pricing available
Cast IronPlate
Load rating
600 lbs
Size8" x 2"
Capacity600 lbs
WheelCast Iron
MountPlate 4" x 4-1/2"
TypeRigid
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Cast Iron
Temp Range Up to 750°F
Rig Type Rigid
Brake No Brake
Frame Stainless Steel
R-WHS-8HMB Hamilton Stainless Steel Workhorse Rigid Caster 8" x 2" Metal Wheel Rated up...
Shop Product
600 lbs
TieredPricing

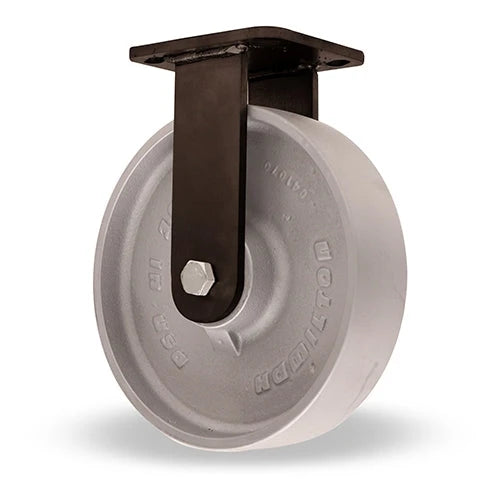

Hamilton WHK Inferno Series 8" Metal Wheel Rigid Caster - High Heat 750° F Rated with Stainless Steel Bearings - R-WHK-8HMB Hamilton
Made to Order · 4-6 Wk
Hamilton R-WHK-8HMB 8" x 2" Metal Rigid Caster – 600 lb
Part # R-WHK-8HMB
$317.00
Volume pricing available
Cast IronPlate
Load rating
600 lbs
Size8" x 2"
Capacity600 lbs
WheelCast Iron
MountPlate 4" x 4-1/2"
TypeRigid
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Cast Iron
Temp Range Up to 750°F
Rig Type Rigid
Brake No Brake
Frame Steel, Black
R-WHK-8HMB Hamilton High Heat WHK Inferno Series Rigid Caster 8" x 2" Metal Wheel...
Shop Product
960 lbs
TieredPricing

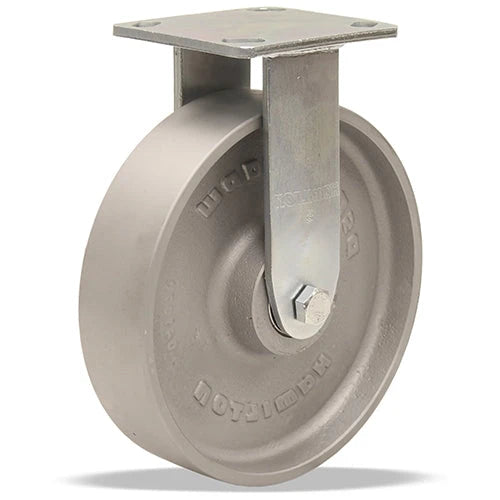

Hamilton R-52HK-8HMB High Heat Rigid Caster - 8"x2" Metal Wheel Rated to 750°F with Precision Ball Bearings - Industrial Standard Duty Hamilton
Made to Order · 4-6 Wk
Hamilton R-52HK-8HMB 8" x 2" Metal Rigid High Heat Caster – 750° F
Part # R-52HK-8HMB
from $310.00
Volume pricing available
Cast IronPlate
Load rating
960 lbs
Size8" x 2"
Capacity960 lbs
WheelCast Iron
MountPlate 4" x 4-1/2"
TypeRigid
More Details Less Details
Width 2"
Height 9-1/2"
Temp Range Up to 750°F
Rig Type Rigid
Brake No Brake
R-52HK-8HMB Hamilton High Heat Standard Duty Rigid Caster 8" x 2" Metal Wheel Rated...
Shop Product

Hamilton Inferno Heavy-Duty Casters with 8" Inferno Metal Wheels

High-Temperature Resistant | Precision Engineered Performance

Premium Quality Heavy-Duty Casters

Explore the strength and durability of Hamilton Inferno Heavy-Duty Casters, the perfect solution for industries demanding high-temperature resistance and smooth maneuverability. Our 8-inch Inferno Metal Wheels are designed for reliability in challenging environments, ensuring your operations remain uninterrupted and efficient.

Advanced Design for Industrial Applications

Investing in Hamilton Inferno Casters means benefiting from features that ensure performance stability, such as heat-resistant materials and precision engineering. These casters are an essential component for any high-temperature application, offering both functionality and long-term service.

Need Casters That Can Handle the Heat?

Our team is ready to assist with selecting the right Hamilton Inferno Casters for your needs. With robust build quality and a track record of exceeding industry standards, Hamilton's heavy-duty casters are your go-to choice for enduring high-temperature environments. Contact us today for expert advice and premium caster solutions.
