DuraStar S30 Series Polyurethane Casters · Up to 1,000 lb · 4"–8"

Plate sizes: 4 x 4-1/2Bolt holes: 2-5/8 x 3-3/8 slotted to 3 x 3Diameter: 4, 5, 6, 8 inTread: 2 inCapacity: up to 1,000 lb

30 Series casters for warehouse carts on epoxy and smooth concrete. You will see top plates around 4 x 4-1/2, wheel diameters 4, 5, 6, 8 in, and polyurethane, polyolefin, and stainless treads across the SKUs listed below. Bring plate and stem measurements when replacing unmarked casters so the new corners sit level. Softer treads quiet finished floors; harder compounds last longer on chips, heat, and rough concrete.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

1000 lbs

TieredPricing

Durastar Medium Heavy Duty S30 Series - 8" x 2" DURATOUGH Polyurethane on Polyolefin Swivel Caster - 1000 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

8" x 2" Duratough Polyurethane Swivel Stainless Caster – 1000 lb

Part # S30-S-820-PTU-03

from $58.00

Volume pricing available

PolyurethanePlate

Load rating

1000 lbs

Diameter 8"

Capacity 1000 lbs

Wheel Polyurethane

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 9-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Core Polyolefin

Temp Range -20°F to 180°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S30 Series - 8" x 2" DURATOUGH Polyurethane on Polyolefin...

Shop Product

900 lbs

TieredPricing

Durastar Medium Heavy Duty S30 Series - 6" x 2" DURATOUGH Polyurethane on Polyolefin Swivel Caster - 900 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

6" x 2" DURATOUGH Polyurethane Swivel Stainless Caster – 900 lb

Part # S30-S-620-PTU-03

from $55.00

Volume pricing available

PolyurethanePlate

Load rating

900 lbs

Diameter 6"

Capacity 900 lbs

Wheel Polyurethane

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 7-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Core Polyolefin

Temp Range -20°F to 180°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S30 Series - 6" x 2" DURATOUGH Polyurethane on Polyolefin...

Shop Product

750 lbs

TieredPricing

Durastar Medium Heavy Duty S30 Series - 5" x 2" DURATOUGH Polyurethane on Polyolefin Swivel Caster - 750 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

5" x 2" Polyurethane Swivel Stainless Caster – 750 lb · DuraStar S30 Series

Part # S30-S-520-PTU-03

from $54.00

Volume pricing available

PolyurethanePlate

Load rating

750 lbs

Diameter 5"

Capacity 750 lbs

Wheel Polyurethane

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 6-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Core Polyolefin

Temp Range -20°F to 180°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S30 Series - 5" x 2" DURATOUGH Polyurethane on Polyolefin...

Shop Product

700 lbs

TieredPricing

Durastar Medium Heavy Duty S30 Series - 4" x 2" DURATOUGH Polyurethane on Polyolefin Swivel Caster - 700 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

4" x 2" DURATOUGH Polyurethane Swivel Stainless Caster – 700 lb

Part # S30-S-420-PTU-03

from $52.00

Volume pricing available

PolyurethanePlate

Load rating

700 lbs

Diameter 4"

Capacity 700 lbs

Wheel Polyurethane

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 5-5/8"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Core Polyolefin

Temp Range -20°F to 180°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S30 Series - 4" x 2" DURATOUGH Polyurethane on Polyolefin...

Shop Product

1000 lbs

TieredPricing

Durastar Medium Heavy Duty S30 Series - 8" x 2" DURATOUGH Polyurethane on Polyolefin Rigid Caster - 1000 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

8" x 2" DURATOUGH Polyurethane Rigid Caster – 1000 lb · DuraStar S30 Series

Part # S30-R-820-PTU-03

from $55.00

Volume pricing available

PolyurethanePlate

Load rating

1000 lbs

Diameter 8"

Capacity 1000 lbs

Wheel Polyurethane

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 9-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Core Polyolefin

Temp Range -20°F to 180°F

Rig Type Rigid

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S30 Series - 8" x 2" DURATOUGH Polyurethane on Polyolefin...

Shop Product

900 lbs

TieredPricing

Durastar Medium Heavy Duty S30 Series - 6" x 2" DURATOUGH Polyurethane on Polyolefin Rigid Caster - 900 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

6" x 2" Polyurethane Rigid Stainless Caster – 900 lb

Part # S30-R-620-PTU-03

from $53.00

Volume pricing available

PolyurethanePlate

Load rating

900 lbs

Diameter 6"

Capacity 900 lbs

Wheel Polyurethane

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 7-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Core Polyolefin

Temp Range -20°F to 180°F

Rig Type Rigid

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S30 Series - 6" x 2" DURATOUGH Polyurethane on Polyolefin...

Shop Product

750 lbs

TieredPricing

Durastar Medium Heavy Duty S30 Series - 5" x 2" DURATOUGH Polyurethane on Polyolefin Rigid Caster - 750 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

5" x 2" Duratough Polyurethane Rigid Stainless Caster – 750 lb

Part # S30-R-520-PTU-03

from $52.00

Volume pricing available

PolyurethanePlate

Load rating

750 lbs

Diameter 5"

Capacity 750 lbs

Wheel Polyurethane

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 6-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Core Polyolefin

Temp Range -20°F to 180°F

Rig Type Rigid

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S30 Series - 5" x 2" DURATOUGH Polyurethane on Polyolefin...

Shop Product

700 lbs

TieredPricing

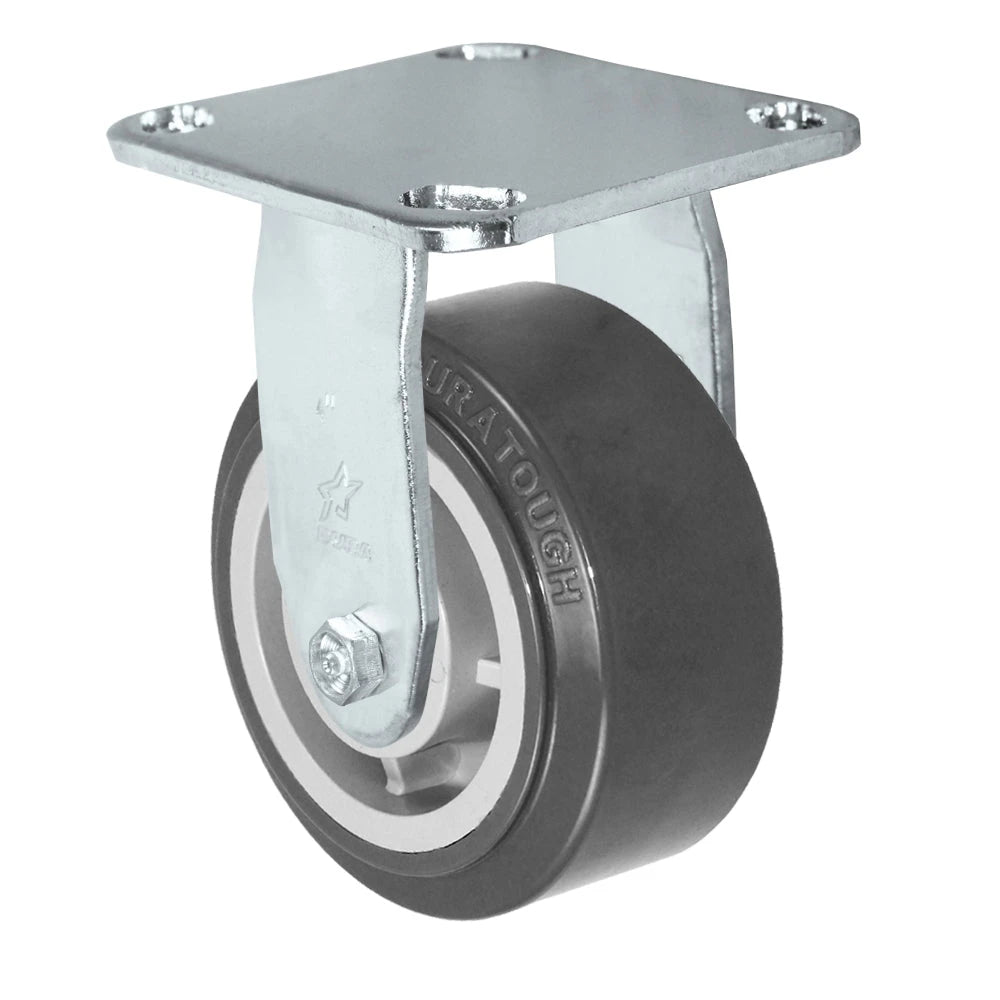

Durastar Medium Heavy Duty S30 Series - 4" x 2" DURATOUGH Polyurethane on Polyolefin Rigid Caster - 700 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

4" x 2" Polyurethane on Polyolefin Rigid Stainless Caster – 700 lb

Part # S30-R-420-PTU-03

from $49.00

Volume pricing available

PolyurethanePlate

Load rating

700 lbs

Diameter 4"

Capacity 700 lbs

Wheel Polyurethane

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 5-5/8"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Core Polyolefin

Temp Range -20°F to 180°F

Rig Type Rigid

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S30 Series - 4" x 2" DURATOUGH Polyurethane on Polyolefin...

Shop Product
