DuraStar 5" x 1-1/4" Polyurethane Polyurethane Casters · 7 Styles · Up to 350 lb · 3"–5"

Diameter: 3, 3-1/2, 4, 5 inTread: 1-1/4 inCapacity: up to 350 lb
Polyurethane and polyolefin casters here serve warehouse carts on epoxy and smooth concrete. You will see wheel diameters 3, 3-1/2, 4, 5 in, polyurethane and polyolefin treads, and plate-mount frames across the SKUs listed below. Match bolt-hole spacing or stem diameter to the frame before you standardize a fleet. Use kingpinless or heavy plate series when shock loads keep shearing kingpin races. These light-duty options cover everyday warehouse carts on epoxy and smooth concrete without jumping to extreme forged series.

Shop by type

3 types

Wheel = wheel diameter · capacity is per caster.

325 lbs
TieredPricing
Durastar Light Medium Duty 24 Series - 4" x 1-1/4" Duratough Polyurethane on Polyolefin Swivel Caster - 325 lb Capacity, Choose Top Plate Option Durastar
Ships in 1-3 Business Days
4" x 1-1/4" Duratough Polyurethane Swivel Caster – 325 lb
Part # 24-S-414-PTU-1156
from $26.00
Volume pricing available
PolyurethanePlate
Load rating
325 lbs
Diameter 4"
Capacity 325 lbs
Wheel Polyurethane
Mount Plate
More Details Less Details
Width 1-1/4"
Height 5-1/8"
Core Polyolefin
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Light Medium Duty 24 Series - 4" x 1-1/4" Duratough Polyurethane on Polyolefin...
Shop Product
350 lbs
TieredPricing
Durastar Light Medium Duty 24 Series - 5" x 1-1/4" Duratough Polyurethane on Polyolefin Swivel Caster - 350 lb Capacity, Choose Top Plate Option Durastar
Ships in 1-3 Business Days
5" x 1-1/4" Duratough Polyurethane Swivel Caster – 350 lb · DuraStar 24 Series · Model 24-S-514-PTU-56
Part # 24-S-514-PTU-56
from $32.00
Volume pricing available
PolyurethanePlate
Load rating
350 lbs
Diameter 5"
Capacity 350 lbs
Wheel Polyurethane
Mount Plate
More Details Less Details
Width 1-1/4"
Height 6-1/4"
Core Polyolefin
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Light Medium Duty 24 Series - 5" x 1-1/4" Duratough Polyurethane on Polyolefin...
Shop Product
300 lbs
TieredPricing
Durastar 3-1/2" x 1-1/4" Duratough Polyurethane on Polyolefin Swivel Caster - 300 Load Capacity w/ Choose Bearing, Choose Top Plate Option Durastar
Ships in 1-3 Business Days
3-1/2" x 1-1/4" Polyurethane Swivel Caster – 300 lb
Part # 24-S-3514-PTU-1156
from $18.00
Volume pricing available
PolyurethanePlate
Load rating
300 lbs
Diameter 3-1/2"
Capacity 300 lbs
Wheel Polyurethane
Mount Plate
More Details Less Details
Width 1-1/4"
Height 4-5/8"
Core Polyolefin
Temp Range -40°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar 3.5" Polyurethane Swivel Caster: Versatile & Customizable 300 lb Capacity | Customizable Options...
Shop Product
275 lbs
TieredPricing
Durastar 3" x 1-1/4" Duratough Polyurethane on Polyolefin Swivel Caster - 275 Load Capacity, Choose Top Plate Option Durastar
Ships in 1-3 Business Days
3" x 1-1/4" Polyurethane on Polyolefin Swivel Caster – 275 lb · Model 24-S-314-PTU-11
Part # 24-S-314-PTU-11
from $14.00
Volume pricing available
PolyurethanePlate
Load rating
275 lbs
Diameter 3"
Capacity 275 lbs
Wheel Polyurethane
Mount Plate
More Details Less Details
Width 1-1/4"
Height 4-5/32"
Core Polyolefin
Temp Range -45°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar 3" x 1-1/4" Swivel Caster: Unmatched Durability and Versatility 275 lb Load Capacity...
Shop Product
350 lbs
TieredPricing

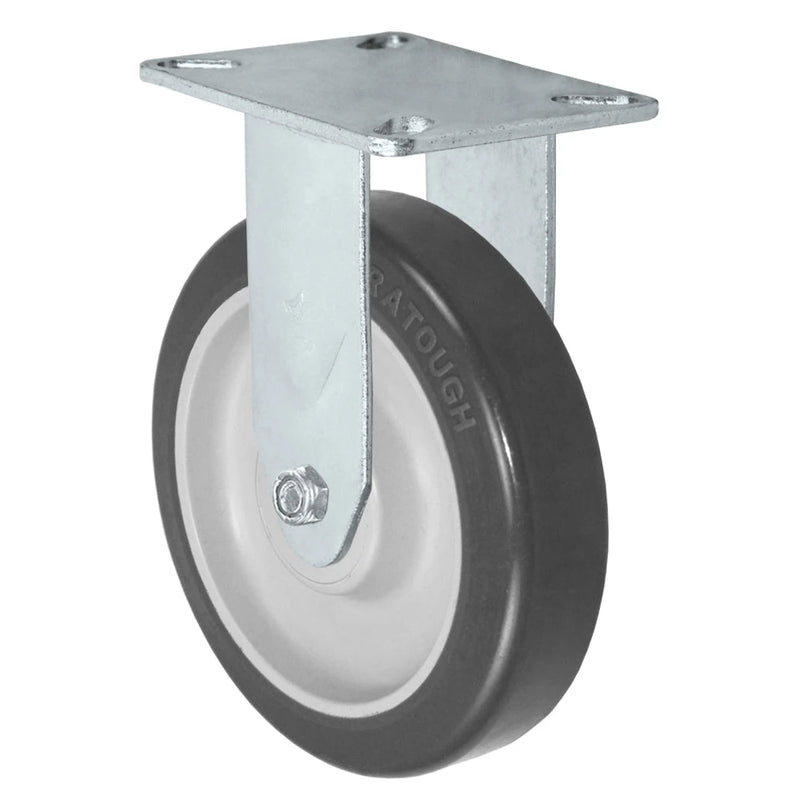

Durastar Light Medium Duty 24 Series - 5" x 1-1/4" Duratough Polyurethane on Polyolefin Rigid Caster - 350 lb Capacity, Choose Top Plate Option Durastar
Ships in 1-3 Business Days
5" x 1-1/4" Duratough Polyurethane Rigid Caster – 350 lb · DuraStar 24 Series · Model 24-R-514-PTU-11
Part # 24-R-514-PTU-11
from $31.00
Volume pricing available
PolyurethanePlate
Load rating
350 lbs
Diameter 5"
Capacity 350 lbs
Wheel Polyurethane
Mount Plate
More Details Less Details
Width 1-1/4"
Height 6-1/4"
Core Polyolefin
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Light Medium Duty 24 Series - 5" x 1-1/4" Duratough Polyurethane on Polyolefin...
Shop Product
325 lbs
TieredPricing
Durastar Light Medium Duty 24 Series - 4" x 1-1/4" Duratough Polyurethane on Polyolefin Rigid Caster - 325 lb Capacity, Choose Top Plate Option Durastar
Ships in 1-3 Business Days
4" x 1-1/4" Duratough Polyurethane Rigid Caster – 325 lb
Part # 24-R-414-PTU-1156
from $25.00
Volume pricing available
PolyurethanePlate
Load rating
325 lbs
Diameter 4"
Capacity 325 lbs
Wheel Polyurethane
Mount Plate
More Details Less Details
Width 1-1/4"
Height 5-1/8"
Core Polyolefin
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Light Medium Duty 24 Series - 4" x 1-1/4" Duratough Polyurethane on Polyolefin...
Shop Product
300 lbs
TieredPricing

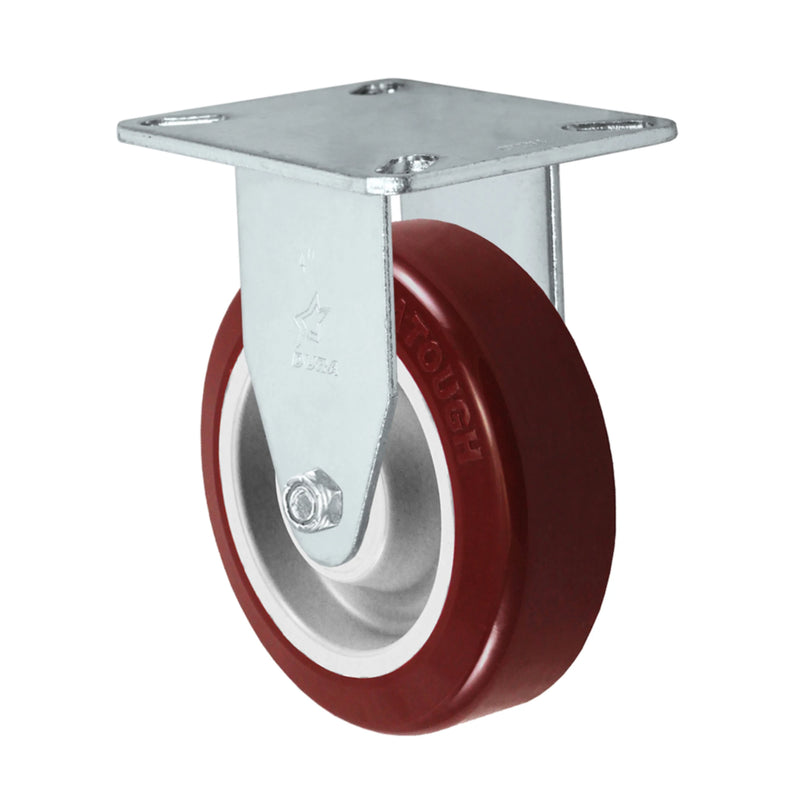

Durastar 3-1/2" x 1-1/4" Duratough Polyurethane on Polyolefin Rigid Caster - 300 Load Capacity w/ Choose Bearing, Choose Top Plate Option Durastar
Ships in 1-3 Business Days
3-1/2" x 1-1/4" Polyurethane Rigid Caster – 300 lb
Part # 24-R-3514-PTU-1156
from $18.00
Volume pricing available
PolyurethanePlate
Load rating
300 lbs
Diameter 3-1/2"
Capacity 300 lbs
Wheel Polyurethane
Mount Plate
More Details Less Details
Width 1-1/4"
Height 4-5/8"
Core Polyolefin
Temp Range -40°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar 3.5" Polyurethane Rigid Caster: Versatile & Customizable 300 lb Capacity | Customizable Options...
Shop Product
